UZS157-CTPQK (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Jul 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )A,C,E,F

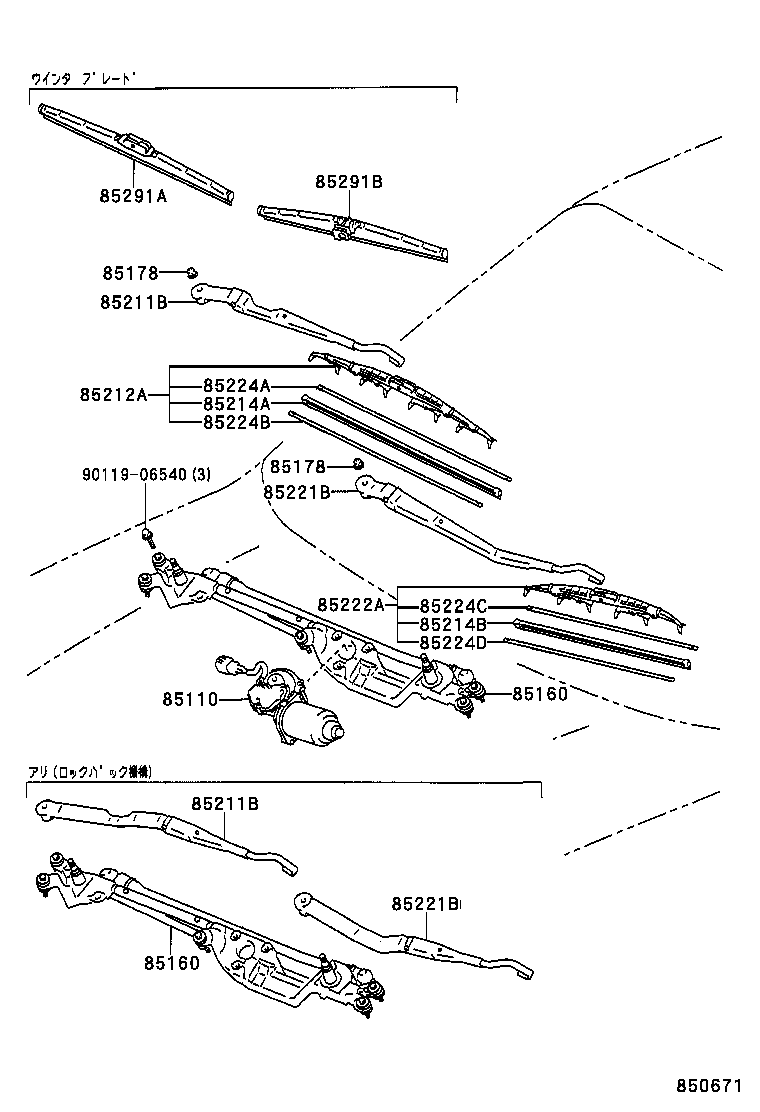

Click highlighted areas on diagram

diagram 85110 85160 85160 85178 85178 85211B 85211B 85212A 85214A 85214B 85221B 85221B 85222A 85224A 85224B 85224C 85224D 85291A 85291B 9011906540
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30390

JZS155,UZS15#..A,C,E,F

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30430

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85150-30420

JZS155,UZS15#..A,C,E,F

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30430

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85150-30420

JZS155,UZS15#..A,C,E,F

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

JZS155,UZS15#..A,C,E,F

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

JZS155,UZS15#..A,C,E,F

 2
85211B - ARM, FRONT WIPER, RH
85211-30460

JZS155,UZS15#..A,C,E,F

 1
85211-30470

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85211B - ARM, FRONT WIPER, RH
85211-30460

JZS155,UZS15#..A,C,E,F

 1
85211-30470

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85212A - BLADE, FR WIPER, RH
85212-30241

GS151,JZS15#,LS151,UZS15#

 1
85214A - RUBBER, WIPER, RH
85214-30250

GS151,JZS15#,LS151,UZS15#

 1
85214B - RUBBER, WIPER, LH
85214-20320

GS151,JZS15#,LS151,UZS15#

 1
85221B - ARM, FRONT WIPER, LH
85221-30360

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85221-30350

JZS155,UZS15#..A,C,E,F

 1
85221B - ARM, FRONT WIPER, LH
85221-30360

JZS155,UZS15#..A,C,E,F

ｱﾘ(ﾛﾂｸﾊﾞﾂｸ ｷｺｳ)

 1
85221-30350

JZS155,UZS15#..A,C,E,F

 1
85222A - BLADE, FR WIPER, LH
85222-30470

GS151,JZS15#,LS151,UZS15#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-30380

GS151,JZS15#,LS151,UZS15#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-30380

GS151,JZS15#,LS151,UZS15#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-60050

GS151,JZS15#,LS151,UZS15#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-60050

GS151,JZS15#,LS151,UZS15#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-30020

GS151,JZS15#,LS151,UZS155,157

ｶﾝﾚｲﾁﾖｳ

 1
85291-30050

UZS151..5FC;GS151,JZS15#,LS151,UZS155,157

ｶﾝﾚｲﾁﾖｳ(ｺｳｿｸ ﾀｲﾌﾟ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-30030

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90119-06540
