UZS157-CTAQK (1997)
Toyota Crown/Crown Majesta

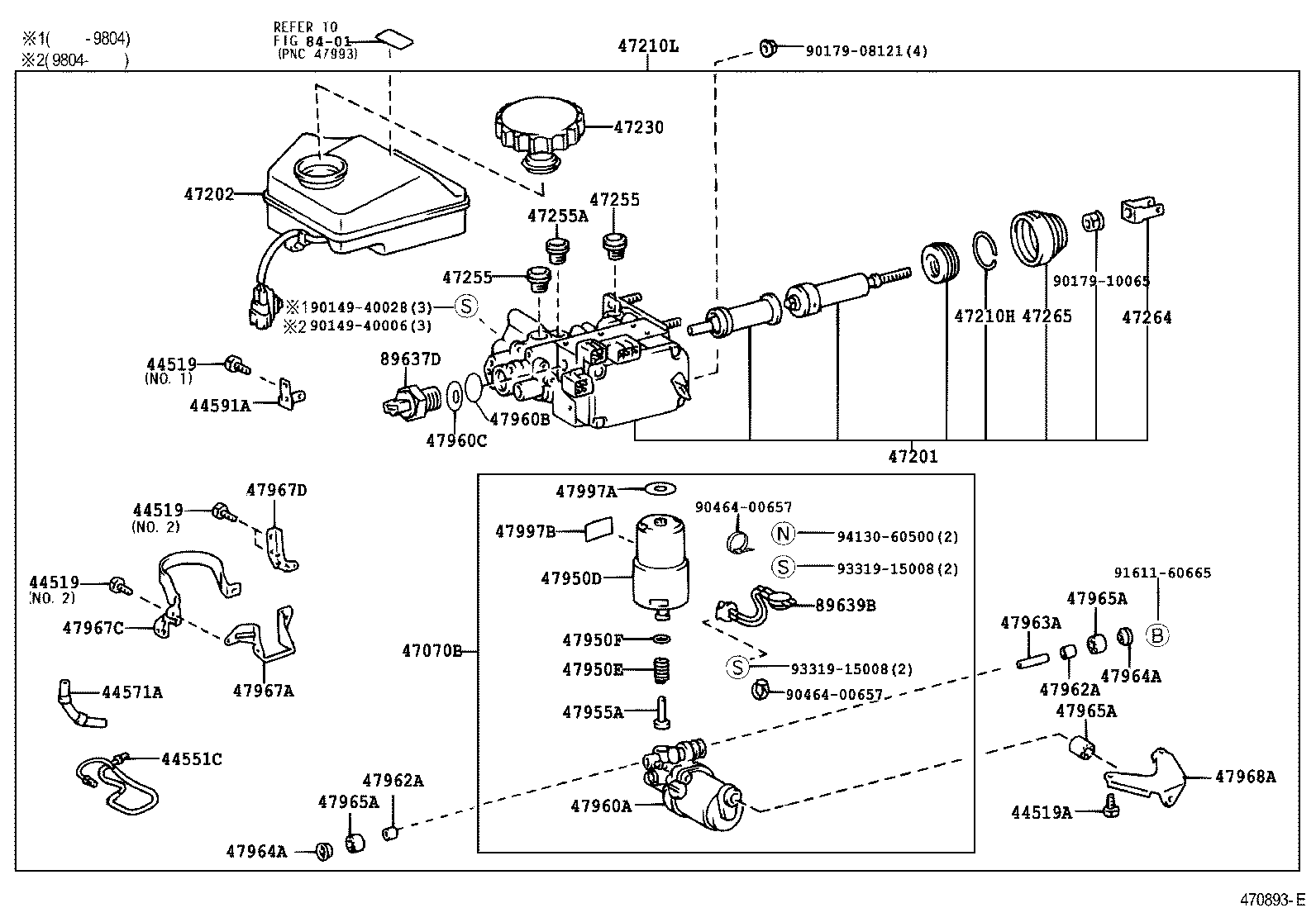

ILLUST NO. 2 OF 2(9707- )JZS155,UZS151,157..C,F,ROY,ROYG,ROYT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519-30010 |
UZS151,157 NO.2 |
3 | ||
| 44519-24020 |
UZS151,157 NO.1 |
1 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519-30010 |
UZS151,157 NO.2 |
3 | ||
| 44519-24020 |
UZS151,157 NO.1 |
1 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 44519-30010 |
UZS151,157 NO.2 |
3 | ||
| 44519-24020 |
UZS151,157 NO.1 |
1 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
UZS151,157 |
2 | ||
| 44519-24020 |
JZS155,UZS15#..A,C,E,F |
4 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-30050 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44551-30140 |
UZS151,157 |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-30080 |
UZS151,157 |
1 | ||
| 44571-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30120 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 44591-30230 |
UZS151,157 |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30030 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47070-30060 |
UZS151,157 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-39025 |
UZS151,157 |
1 | ||
| 47025-30120 |
UZS151,157 |
1 | ||
| 47201-30720 |
GS151,JZS151,153,157..HTWC,TWC |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-30140 |
GS151,JZS151,153,157 |
1 | ||
| 47220-30130 |
UZS151,157 |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
UZS151,157 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47210-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 47050-30120 |
UZS151,157 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47225-30010 |
UZS151,157 |
1 | ||
| 47230-30130 |
UZS151,157 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
UZS151,157 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
UZS151,157 |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950-30010 |
UZS151,157 |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-16160 |
UZS151,157 |
1 | ||
| 90501-12147 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
UZS151,157 |
1 | ||
| 90301-08006 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47955-30010 |
UZS151,157 |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47960-30030 |
UZS151,157 |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 90301-15014 |
UZS151,157 |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
UZS151,157 |
1 | ||
| 90561-16009 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962-60010 |
UZS151,157 |
2 | ||
| 47962-24010 |
UZS15# |
2 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47962-60010 |
UZS151,157 |
2 | ||
| 47962-24010 |
UZS15# |
2 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47963-24010 |
UZS15# |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47964-24010 |
UZS15# |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
JZS155,UZS15#..A,C,E,F |
2 | ||
| 47964-24010 |
UZS15# |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
UZS151,157 |
4 | ||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
UZS151,157 |
4 | ||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
UZS151,157 |
4 | ||
| 47965-24010 |
JZS155,UZS15#..A,C,E,F |
3 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30020 |
UZS151,157 |
1 | ||
| 47967-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47967C - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47967-30030 |
UZS151,157 |
1 | ||
| 47967D - BRACKET, BRAKE BOOSTER PUMP, NO.3 | ||||
| 47967-30040 |
UZS151,157 |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47968-30020 |
UZS151,157 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997-30030 |
UZS151,157 |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-24010 |
JZS155,UZS15#..A,C,E,F |
1 | ||
| 47997-24010 |
UZS15# |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-30010 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89637-30030 |
JZS155,UZS151,157..C,F,ROY,ROYG,ROYT |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30040 |
JZS155,UZS151,157..A,C,E,F |
1 | ||
| 89639-30100 |
UZS151,157 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90149-40028 | ||||
| 90179-08121 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91611-60665 | ||||
| 93319-15008 | ||||
| 94130-60500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
