UZS157-CTAQK (1997)

Toyota Crown/Crown Majesta

Production Jul 1997 - Sep 1999
Engine 1UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )1UZFE..UZS151,157

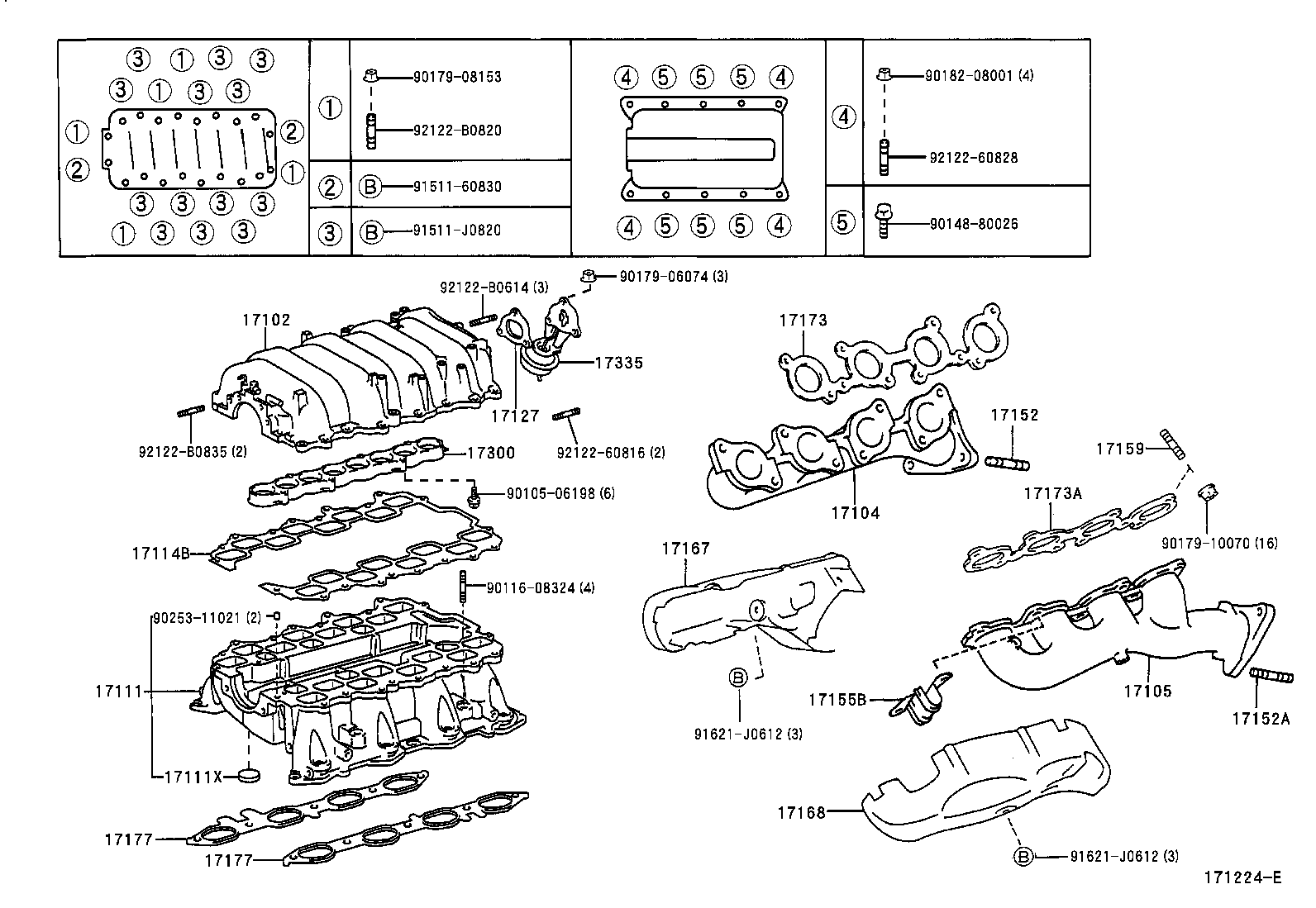

Click highlighted areas on diagram

diagram 17102 17104 17105 17111 17111X 17114B 17127 17152 17152A 17155B 17159 17167 17168 17173 17173A 17177 17177 17300 17335 9010506198 9011608324 9014880026 9017906074 9017908153 9017910070 9018208001 9025311021 9151160830 91511J0820 91621J0612 91621J0612 9212260816 9212260828 92122B0614 92122B0820 92122B0835
Part # Description Qty Price
17102 - MANIFOLD SUB-ASSY, INTAKE, UPPER
17102-50012

1UZFE..UZS15#

 1
17102-50011

1UZFE..UZS15#

 1
17102-50010

1UZFE..UZS15#

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17141-50040

1UZFE..UZS151,157

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17142-50040

1UZFE..UZS151,157

 1
17111 - MANIFOLD, INTAKE
17111-50020

1UZFE..UZS15#

 1
17101-50010

1UZFE..UZS15#

 1
17111X - PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)
96411-42000

1UZFE..UZS15#

 1
17114B - GASKET, INTAKE FLANGE
17116-50010

1UZFE..UZS15#

 1
17127 - GASKET, SURGE TANK COVER
17127-50010

1UZFE..UZS15#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

1UZFE..UZS151,157

 3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

1UZFE..UZS151,157

 3
17155B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.5
17155-50010

1UZFE..UZS151,157

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015

1UZFE..UZS15#

 16
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-50080

1UZFE..UZS151,157

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-50070

1UZFE..UZS151,157

 1
17168-50071

1UZFE..UZS151,157

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50010

1UZFE..UZS151,157

 1
17173-50011

1UZFE..UZS151,157

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-50010

1UZFE..UZS151,157

 1
17173-50011

1UZFE..UZS151,157

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020

1UZFE..UZS15#

 2
17171-50011

1UZFE..UZS15#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020

1UZFE..UZS15#

 2
17171-50011

1UZFE..UZS15#

 2
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-50010

1UZFE..UZS15#

 1
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-50010

1UZFE..UZS15#

 1
Common parts
90105-06198
90116-08324
90148-80026
90179-06074
90179-08153
90179-10070
90182-08001
90253-11021
91511-60830
91511-J0820
91621-J0612
92122-60816
92122-60828
92122-B0614
92122-B0820
92122-B0835
