UZS151-CTPZK (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Jul 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )A,C,E,F

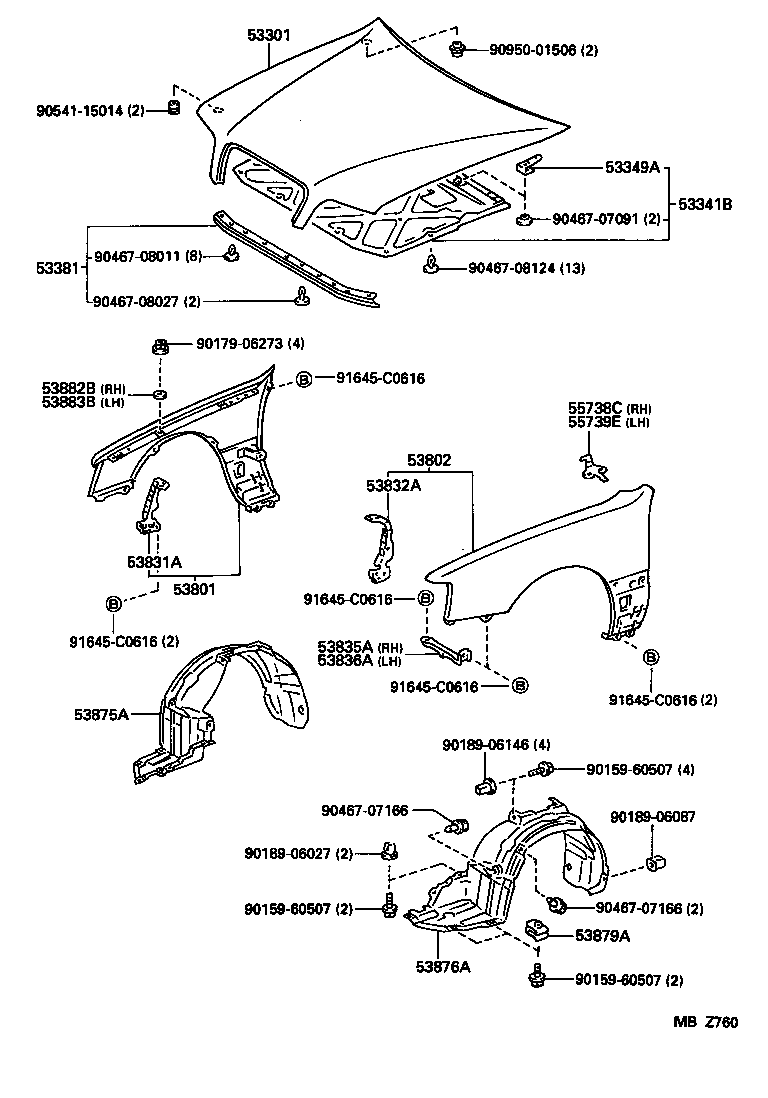

Click highlighted areas on diagram

diagram 53301 53341B 53349A 53381 53801 53802 53831A 53832A 53835A 53836A 53875A 53876A 53879A 53882B 53883B 55738C 55739E 9015960507 9015960507 9015960507 9017906273 9018906027 9018906087 9018906146 9046707091 9046707166 9046707166 9046708011 9046708027 9046708124 9054115014 9095001506 91645C0616 91645C0616 91645C0616 91645C0616 91645C0616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-30290

JZS155,UZS15#..A,C,E,F

 1
53341B - INSULATOR, HOOD
53341-30151

JZS155,UZS15#..A,C,E,F

 1
53349A - RETAINER, HOOD INSULATOR
53349-30010

JZS155,UZS15#..A,C,E,F

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30140

JZS155,UZS15#..A,C,E,F

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-3A890

JZS155,UZS15#..A,C,E,F

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-3A830

JZS155,UZS15#..A,C,E,F

 1
53831A - PANEL, FRONT FENDER SIDE, UPPER RH
53831-30160

JZS155,UZS15#..A,C,E,F

 1
53832A - PANEL, FRONT FENDER SIDE, UPPER LH
53832-30160

JZS155,UZS15#..A,C,E,F

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-30070

JZS155,UZS15#..A,C,E,F

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53835-30070

JZS155,UZS15#..A,C,E,F

 1
53875A - LINER, FRONT FENDER, RH
53875-30070

JZS155,UZS15#..A,C,E,F

 1
53876A - LINER, FRONT FENDER, LH
53876-30050

JZS155,UZS15#..A,C,E,F

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

GS151,JZS15#,LS151,UZS15#

 4
53882B - SEAL, FRONT FENDER, RH
53882-30030

JZS155,UZS15#..A,C,E,F

 4
53883B - SEAL, FRONT FENDER, LH
53882-30030

JZS155,UZS15#..A,C,E,F

 4
55738C - STOPPER, HOOD, RH
55738-22050

GS151,JZS15#,LS151,UZS15#

 1
55739E - STOPPER, HOOD, LH
55739-22040

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90159-60507
90179-06273
90189-06027
90189-06087
90189-06146
90467-07091
90467-07166
90467-08011
90467-08027
90467-08124
90541-15014
90950-01506
91645-C0616
