UZS151-CTPZK (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Jul 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

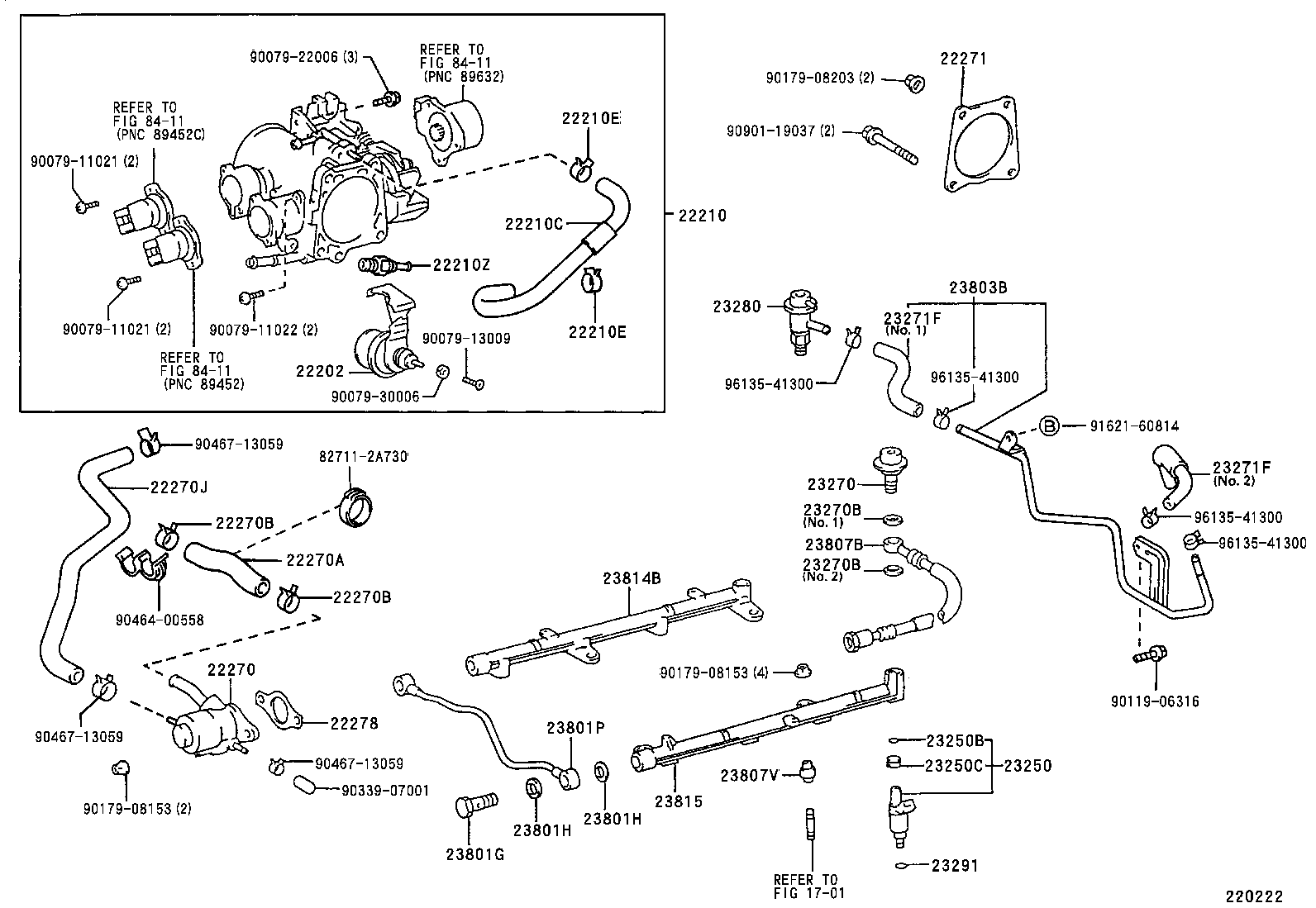

ILLUST NO. 1 OF 3(9508-9707)1UZFE

Click highlighted areas on diagram

diagram 1701 22202 22210 22210C 22210E 22210E 22210Z 22270 22270A 22270B 22270B 22270J 22271 22278 23250 23250B 23250C 23270 23270B 23270B 23271F 23271F 23280 23291 23801G 23801H 23801H 23801P 23803B 23807B 23807V 23814B 23815 827112A730 8411 8411 8411 9007911021 9007911021 9007911022 9007913009 9007922006 9007930006 9011906316 9017908153 9017908153 9017908203 9033907001 9046400558 9046713059 9046713059 9046713059 9090119037 9162160814 9613541300 9613541300 9613541300 9613541300
Part # Description Qty Price
22202 - DASH POT SUB-ASSY
22202-50040

1UZFE..UZS15#

 1
22210 - BODY ASSY, THROTTLE
22030-50063

1UZFE..UZS15#

 1
22210C - HOSE, WATER BY-PASS, NO.1
16296-50010

1UZFE..UZS15#

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13059

1UZFE..UZS15#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13059

1UZFE..UZS15#

 2
22210Z - THERMOSTAT, MANIFOLD
90916-03104

1UZFE..UZS15#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-50020

1UZFE..UZS15#

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
17341-50080

1UZFE..UZS15#

 1
22270B - CLIP(FOR AIR HOSE)
90467-26006

1UZFE..UZS15#

 2
22270B - CLIP(FOR AIR HOSE)
90467-26006

1UZFE..UZS15#

 2
22270J - HOSE, WATER, NO.3(FOR IDEL SPEED CONTROL VALVE)
16295-50030

1UZFE..UZS15#

 1
22271 - GASKET, THROTTLE BODY
22271-50020

1UZFE..UZS15#

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-50011

1UZFE..UZS15#

 1
23250 - INJECTOR ASSY, FUEL
23209-50020

1UZFE..UZS15#

 8
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1UZFE..UZS15#

 8
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1UZFE..UZS15#

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-50010

1UZFE..UZS15#

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1UZFE..UZS15#

NO.1

 1
90430-12026

1UZFE..UZS15#

NO.2

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1UZFE..UZS15#

NO.1

 1
90430-12026

1UZFE..UZS15#

NO.2

 1
23271F - HOSE, FUEL
23271-50120

1UZFE..UZS15#

NO.1

 1
23271-50130

1UZFE..UZS15#

NO.2

 1
23271F - HOSE, FUEL
23271-50120

1UZFE..UZS15#

NO.1

 1
23271-50130

1UZFE..UZS15#

NO.2

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-50020

1UZFE..UZS15#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1UZFE..UZS15#

 8
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12023

1UZFE..UZS15#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

1UZFE..UZS15#

 4
23801H - GASKET(FOR FUEL PIPE)
90430-12026

1UZFE..UZS15#

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-50010

1UZFE..UZS15#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-50091

1UZFE..UZS15#

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01411

1UZFE..UZS15#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08029

1UZFE..UZS15#

 4
23814B - PIPE, FUEL DELIVERY
23814-50030

1UZFE..UZS15#

 1
23815 - PIPE, FUEL DELIVERY, NO.2
23815-50020

1UZFE..UZS15#

 1
Common parts
82711-2A730
90079-11021
90079-11022
90079-13009
90079-22006
90079-30006
90119-06316
90179-08153
90179-08203
90339-07001
90464-00558
90467-13059
90901-19037
91621-60814
96135-41300
Linked diagrams
1701
8411

ILLUST NO. 3 OF 3(9508- )1UZFE

Click highlighted areas on diagram

diagram 23300P 23300P 9011906642 91651B0614
Part # Description Qty Price
23300P - FILTER, FUEL(FOR EFI)
23300-50050

1UZFE..UZS15#

 1
23300-50050

1UZFE..UZS15#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-50050

1UZFE..UZS15#

 1
23300-50050

1UZFE..UZS15#

 1
Common parts
90119-06642
91651-B0614

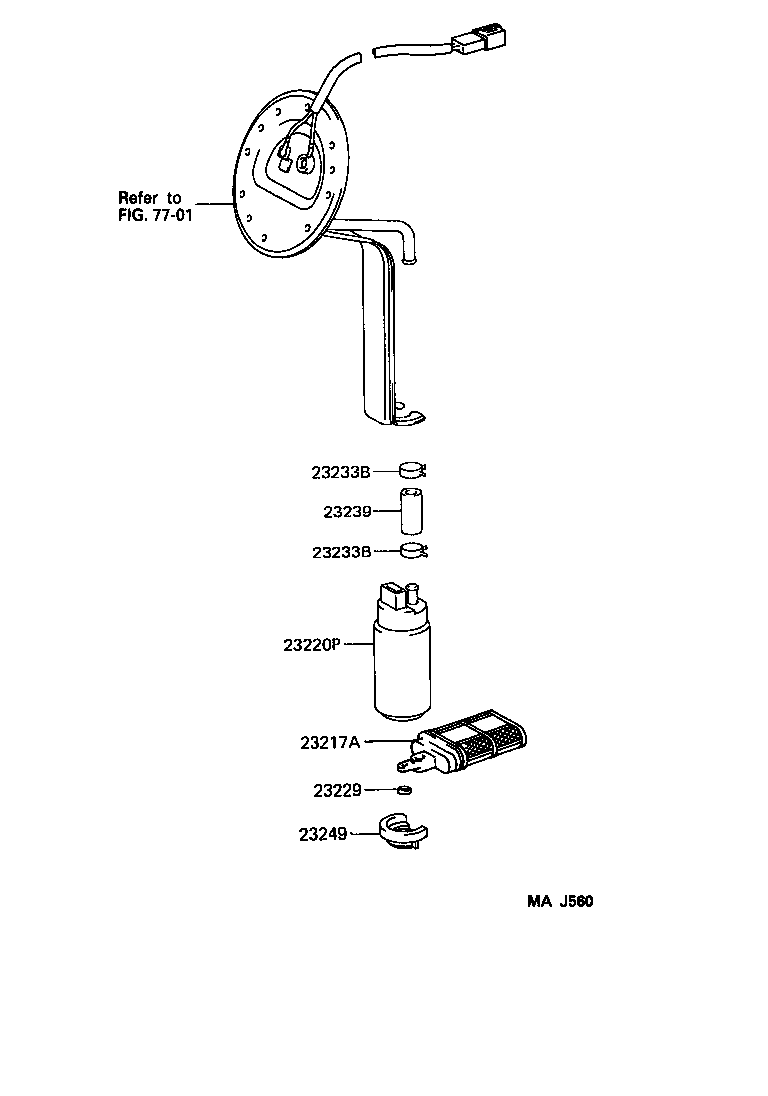

ILLUST NO. 2 OF 3(9508-9707)1UZFE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233B 23233B 23239 23249 7701
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-50061

1UZFE..UZS15#

 1
23220P - PUMP ASSY, FUEL
23221-50060

1UZFE..UZS15#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1UZFE..UZS15#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1UZFE..UZS15#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1UZFE..UZS15#

 2
23239 - HOSE
23239-63010

1UZFE..UZS15#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1UZFE..UZS15#

 1
Linked diagrams
7701
