UZS147-ATPZK (1993)
Toyota Crown/Crown Majesta

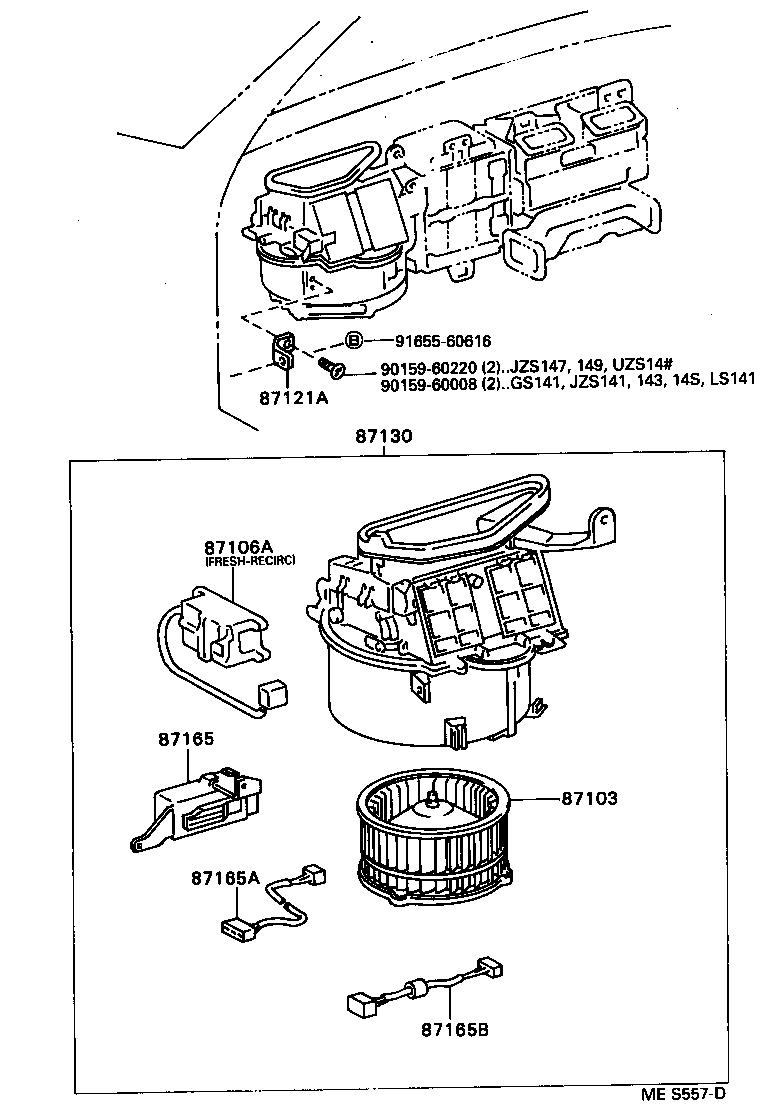

ILLUST NO. 1 OF 2(9110-9508)
ﾋ-ﾀﾌﾞﾛﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-30310 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30180 |
GS141,JZS14#,LS141,UZS14# ﾓｰﾄﾞ |
1 | ||
| 87106-30190 |
JZS147,149,UZS14# ｴｱﾐｯｸｽ |
1 | ||
| 87106-30210 |
JZS145,147,149,UZS14# REAR HEAT |
1 | ||
| 87106-30200 |
GS141,JZS14#,LS141,UZS14# BI-LEVEL |
1 | ||
| 87106-30170 |
JZS147,149,UZS14# FRESH-RECIRC |
1 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-30030 |
JZS147,149,UZS14# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30500 |
JZS147,149,UZS14# |
1 | ||
| 87165 - CONTROL, BLOWER MOTOR, NO.1 | ||||
| 87165-30010 |
JZS147,149,UZS14# |
1 | ||
| 87165A - CONTROL, BLOWER MOTOR, NO.2 | ||||
| 87165-30050 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 87165B - CONTROL, BLOWER MOTOR, NO.3 | ||||
| 87165-30060 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90159-60220 | ||||
| 91655-60616 | ||||

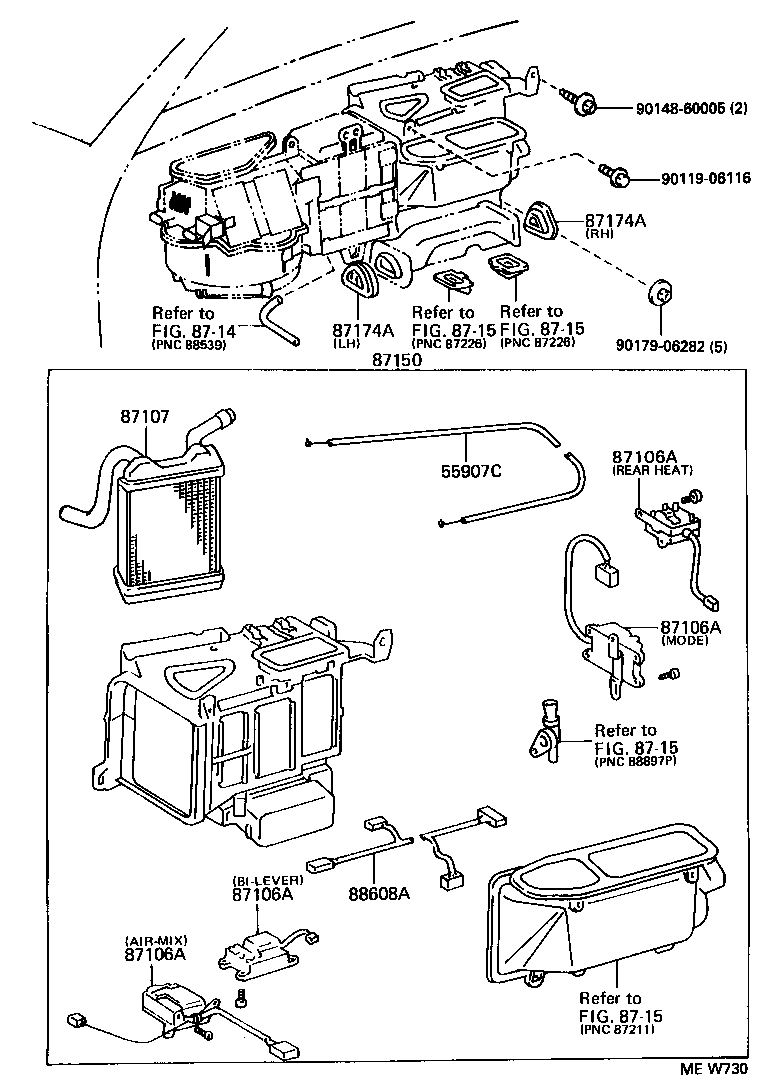

ILLUST NO. 2 OF 2(9110-9508)JZS147,149,UZS14#
ﾋ-ﾀﾗｼﾞｴ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-30070 |
JZS147,149,UZS14# |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30180 |
GS141,JZS14#,LS141,UZS14# ﾓｰﾄﾞ |
1 | ||
| 87106-30190 |
JZS147,149,UZS14# ｴｱﾐｯｸｽ |
1 | ||
| 87106-30210 |
JZS145,147,149,UZS14# REAR HEAT |
1 | ||
| 87106-30200 |
GS141,JZS14#,LS141,UZS14# BI-LEVEL |
1 | ||
| 87106-30170 |
JZS147,149,UZS14# FRESH-RECIRC |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30180 |
GS141,JZS14#,LS141,UZS14# ﾓｰﾄﾞ |
1 | ||
| 87106-30190 |
JZS147,149,UZS14# ｴｱﾐｯｸｽ |
1 | ||
| 87106-30210 |
JZS145,147,149,UZS14# REAR HEAT |
1 | ||
| 87106-30200 |
GS141,JZS14#,LS141,UZS14# BI-LEVEL |
1 | ||
| 87106-30170 |
JZS147,149,UZS14# FRESH-RECIRC |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30180 |
GS141,JZS14#,LS141,UZS14# ﾓｰﾄﾞ |
1 | ||
| 87106-30190 |
JZS147,149,UZS14# ｴｱﾐｯｸｽ |
1 | ||
| 87106-30210 |
JZS145,147,149,UZS14# REAR HEAT |
1 | ||
| 87106-30200 |
GS141,JZS14#,LS141,UZS14# BI-LEVEL |
1 | ||
| 87106-30170 |
JZS147,149,UZS14# FRESH-RECIRC |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30180 |
GS141,JZS14#,LS141,UZS14# ﾓｰﾄﾞ |
1 | ||
| 87106-30190 |
JZS147,149,UZS14# ｴｱﾐｯｸｽ |
1 | ||
| 87106-30210 |
JZS145,147,149,UZS14# REAR HEAT |
1 | ||
| 87106-30200 |
GS141,JZS14#,LS141,UZS14# BI-LEVEL |
1 | ||
| 87106-30170 |
JZS147,149,UZS14# FRESH-RECIRC |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30420 |
JZS147,149,UZS14# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30610 |
JZS147,149,UZS14# |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-30100J0 |
GS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8#,右側 |
1 | ||
| 87174-30110J0 |
GS141,JZS14#,LS141,UZS141,147..A,B,C,ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8#,左側 |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-30100J0 |
GS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8#,右側 |
1 | ||
| 87174-30110J0 |
GS141,JZS14#,LS141,UZS141,147..A,B,C,ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8#,左側 |
1 | ||
| 88608A - HARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2 | ||||
| 88608-30720 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| Common parts | ||||
| 90119-06116 | ||||
| 90148-60005 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
