UZS145-ATPZK (1992)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 2(9110-9508)

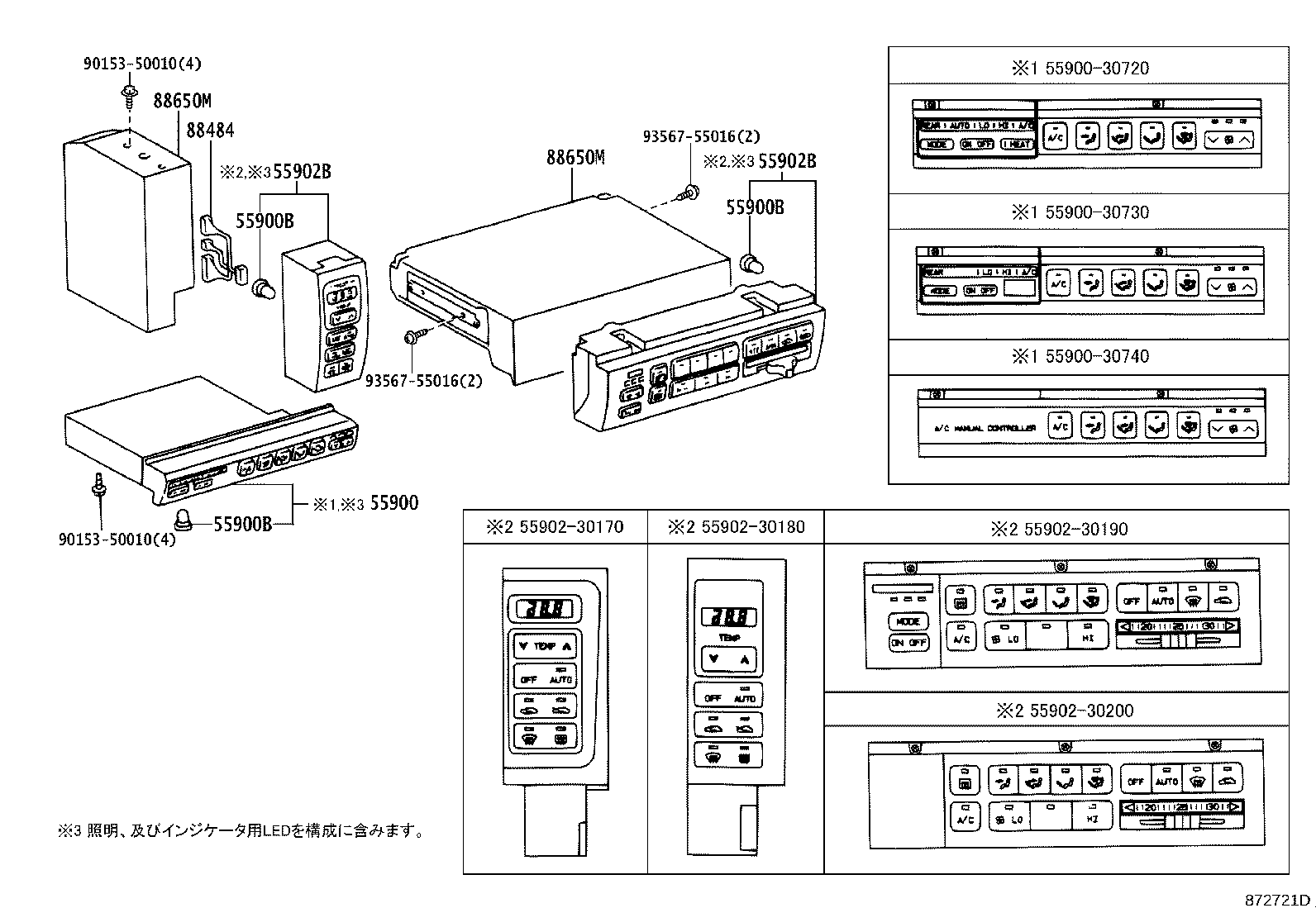

ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30720 |
JZS145,149,UZS14# SUB |
1 | ||
| 55900-30720 |
JZS145,149,UZS141,143,145 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60130 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 84999-60120 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60170 |
JZS141,143,145,149,UZS141,143,145..A,B,C,ROY,ROYG 14V 2.1W,ｸﾞﾘｰﾝ |
4 | ||
| 84999-60160 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.56W,ｸﾞﾘｰﾝ |
1 | ||
| 84999-60140 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 1.2W,ﾌﾞﾙｰ ｸﾞﾘｰﾝ |
1 | ||
| 84999-60120 |
JZS143,145,149,UZS141,143,145..4FC 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60150 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.7W,ﾎﾜｲﾄ ｸﾞﾘｰﾝ |
4 | ||
| 84999-60130 |
JZS143,145,149,UZS141,143,145..4FC 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60130 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 84999-60120 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60170 |
JZS141,143,145,149,UZS141,143,145..A,B,C,ROY,ROYG 14V 2.1W,ｸﾞﾘｰﾝ |
4 | ||
| 84999-60160 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.56W,ｸﾞﾘｰﾝ |
1 | ||
| 84999-60140 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 1.2W,ﾌﾞﾙｰ ｸﾞﾘｰﾝ |
1 | ||
| 84999-60120 |
JZS143,145,149,UZS141,143,145..4FC 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60150 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.7W,ﾎﾜｲﾄ ｸﾞﾘｰﾝ |
4 | ||
| 84999-60130 |
JZS143,145,149,UZS141,143,145..4FC 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60130 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 84999-60120 |
JZS141,143,145,149,UZS14#..A,B,C,ROY,ROYG 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60170 |
JZS141,143,145,149,UZS141,143,145..A,B,C,ROY,ROYG 14V 2.1W,ｸﾞﾘｰﾝ |
4 | ||
| 84999-60160 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.56W,ｸﾞﾘｰﾝ |
1 | ||
| 84999-60140 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 1.2W,ﾌﾞﾙｰ ｸﾞﾘｰﾝ |
1 | ||
| 84999-60120 |
JZS143,145,149,UZS141,143,145..4FC 14V 1.12W,L.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 84999-60150 |
JZS14#,UZS14#..A,B,C,ROY,ROYG 14V 0.7W,ﾎﾜｲﾄ ｸﾞﾘｰﾝ |
4 | ||
| 84999-60130 |
JZS143,145,149,UZS141,143,145..4FC 16V 0.64W,WH.ｸﾞﾘｰﾝ,ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
4 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-30180 |
JZS145,147,149,UZS14# |
1 | ||
| 55902-30170 |
JZS143,145,149,UZS141,143,145..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55902-30170 |
JZS143,145,149,UZS14# ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55902-30180 |
JZS14#,UZS14#..A,B,C,ROY,ROYG |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-30180 |
JZS145,147,149,UZS14# |
1 | ||
| 55902-30170 |
JZS143,145,149,UZS141,143,145..4FC ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55902-30170 |
JZS143,145,149,UZS14# ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55902-30180 |
JZS14#,UZS14#..A,B,C,ROY,ROYG |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-30020 |
JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,ROYT,SALEX |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-3A060 |
JZS145,147,149,UZS14# |
1 | ||
| 88650-3A060 |
JZS145,147,149,UZS14# |
1 | ||
| 88650-3A080 |
JZS145,149,UZS141,143,145 ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-3A060 |
JZS145,147,149,UZS14# |
1 | ||
| 88650-3A060 |
JZS145,147,149,UZS14# |
1 | ||
| 88650-3A080 |
JZS145,149,UZS141,143,145 ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93567-55016 | ||||
(9110-9508)
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price |
|---|
(9110-9508)

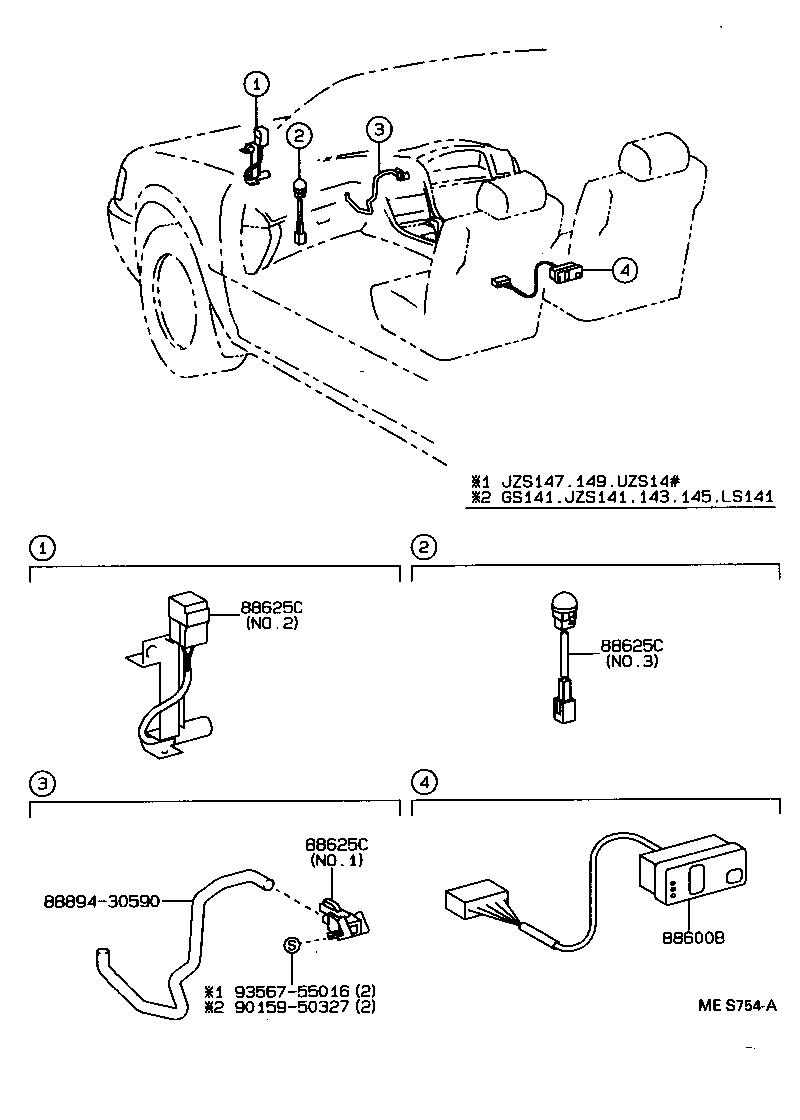

ｾﾝｻ & ﾘﾔ ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30840 |
JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30010 |
GS141,JZS141,143,145,LS141 NO.1 |
1 | ||
| 88625-30870 |
JZS147,149,UZS14# NO.2 |
1 | ||
| 88625-3A050 |
GS141,JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30030 |
JZS147,149,UZS14# NO.1 |
1 | ||
| 88625-30890 |
GS141,JZS141,143,145,LS141 NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30840 |
JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30010 |
GS141,JZS141,143,145,LS141 NO.1 |
1 | ||
| 88625-30870 |
JZS147,149,UZS14# NO.2 |
1 | ||
| 88625-3A050 |
GS141,JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30030 |
JZS147,149,UZS14# NO.1 |
1 | ||
| 88625-30890 |
GS141,JZS141,143,145,LS141 NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30840 |
JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30010 |
GS141,JZS141,143,145,LS141 NO.1 |
1 | ||
| 88625-30870 |
JZS147,149,UZS14# NO.2 |
1 | ||
| 88625-3A050 |
GS141,JZS14#,LS141,UZS14# NO.3 |
1 | ||
| 88790-30030 |
JZS147,149,UZS14# NO.1 |
1 | ||
| 88625-30890 |
GS141,JZS141,143,145,LS141 NO.2 |
1 | ||
| Common parts | ||||
| 88894-30590 | ||||
| 90159-50327 | ||||
| 93567-55016 | ||||
(9110-9508)

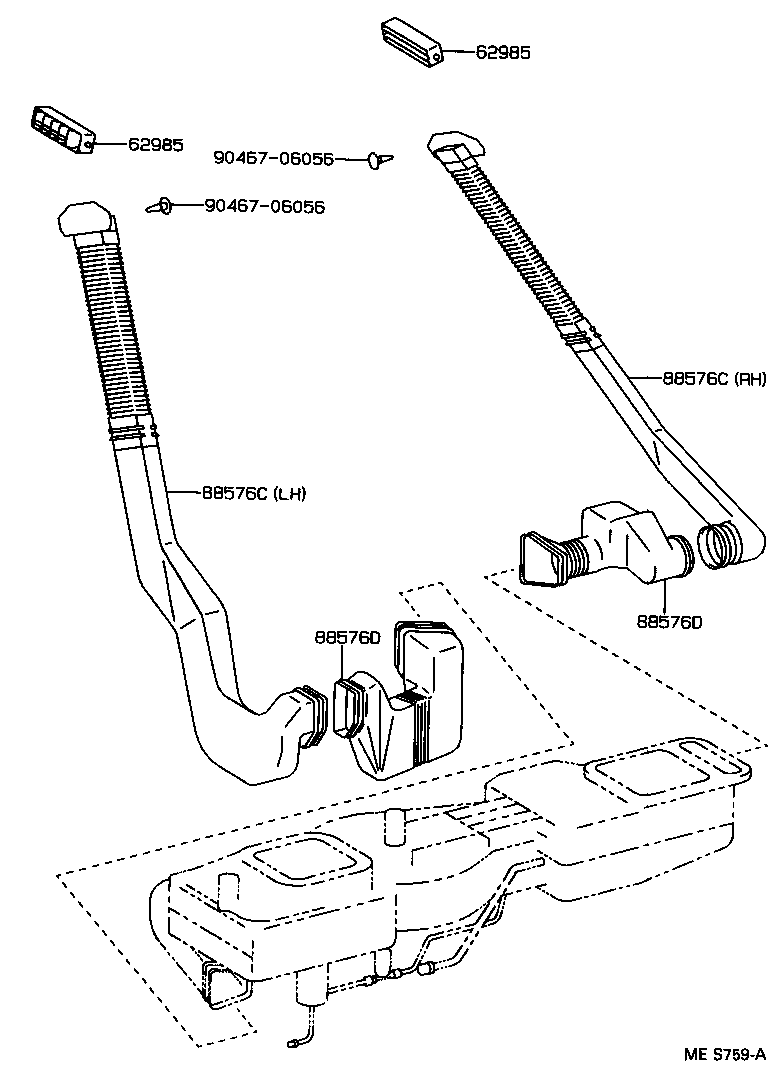

ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060B0 |
GS141,JZS14#,LS141,UZS14# LI.GRAY,TRIM1# |
2 | ||
| 62985-30060J1 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL LI.BLUE,TRIM8# |
2 | ||
| 62985-30060E0 |
GS141,JZS14#,LS141,UZS14# QUARTZ,TRIM4# |
2 | ||
| 62985-30060J1 |
GS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL LI.BLUE,TRIM8# |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060B0 |
GS141,JZS14#,LS141,UZS14# LI.GRAY,TRIM1# |
2 | ||
| 62985-30060J1 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL LI.BLUE,TRIM8# |
2 | ||
| 62985-30060E0 |
GS141,JZS14#,LS141,UZS14# QUARTZ,TRIM4# |
2 | ||
| 62985-30060J1 |
GS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL LI.BLUE,TRIM8# |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A230 |
GS141,JZS141,143,145,LS141 右側 |
1 | ||
| 88576-3A160 |
JZS147,149,UZS14# 左側 |
1 | ||
| 88576-3A150 |
JZS147,149,UZS14# 右側 |
1 | ||
| 88576-3A240 |
GS141,JZS141,143,145,LS141 左側 |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A230 |
GS141,JZS141,143,145,LS141 右側 |
1 | ||
| 88576-3A160 |
JZS147,149,UZS14# 左側 |
1 | ||
| 88576-3A150 |
JZS147,149,UZS14# 右側 |
1 | ||
| 88576-3A240 |
GS141,JZS141,143,145,LS141 左側 |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-3A180 |
JZS147,149,UZS14# 右側 |
1 | ||
| 88576-3A190 |
JZS147,149,UZS14# 左側 |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-3A180 |
JZS147,149,UZS14# 右側 |
1 | ||
| 88576-3A190 |
JZS147,149,UZS14# 左側 |
1 | ||
| Common parts | ||||
| 90467-06056 | ||||
(9110-9508)

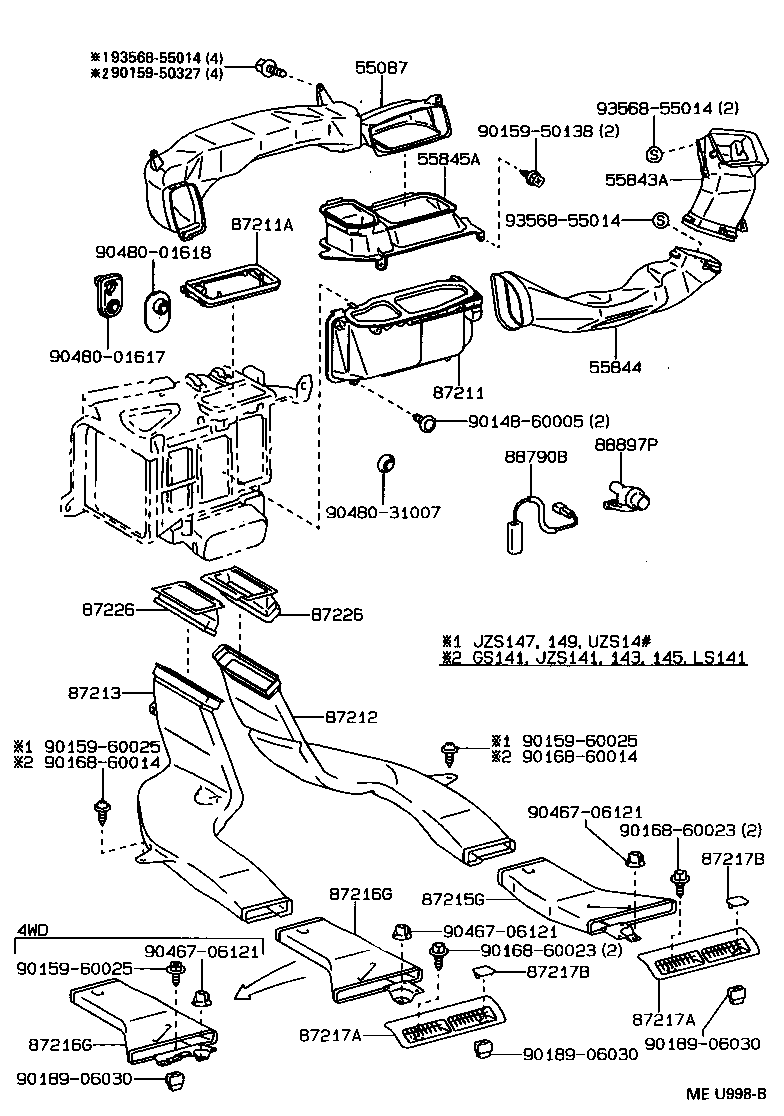

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55085-30110 |
JZS147,149,UZS14# |
1 | ||
| 55085-30120 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30140 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30130 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30160 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 55845-30150 |
JZS147,149,UZS14# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-30560 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 87201-30530 |
JZS147,149,UZS14# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-30550 |
JZS147,149,UZS14# |
1 | ||
| 87201-30580 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30370 |
UZS143,145 |
1 | ||
| 87212-30360 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30290 |
UZS143,145 |
1 | ||
| 87213-30280 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-30260 |
JZS147,149,UZS14# |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-30250 |
UZS143,145 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-30250 |
UZS143,145 |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030J0 |
JZS149,UZS141,143,145 DK.BLUE,TRIM8# |
2 | ||
| 87217-50030E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
2 | ||
| 87217-50030B0 |
JZS147,149,UZS14# GRAY,TRIM1# |
2 | ||
| 87217-50030J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030J0 |
JZS149,UZS141,143,145 DK.BLUE,TRIM8# |
2 | ||
| 87217-50030E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
2 | ||
| 87217-50030B0 |
JZS147,149,UZS14# GRAY,TRIM1# |
2 | ||
| 87217-50030J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693B0 |
JZS147,149,UZS14# GRAY,TRIM1# |
4 | ||
| 90950-01693J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
4 | ||
| 90950-01693E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
4 | ||
| 90950-01693J0 |
JZS149,UZS141,143,145 DK.BLUE,TRIM8# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693B0 |
JZS147,149,UZS14# GRAY,TRIM1# |
4 | ||
| 90950-01693J0 |
JZS147,149,UZS14# DK.BLUE,TRIM8# |
4 | ||
| 90950-01693E0 |
JZS147,149,UZS14# QUARTZ,TRIM4# |
4 | ||
| 90950-01693J0 |
JZS149,UZS141,143,145 DK.BLUE,TRIM8# |
4 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30020 |
JZS147,149,UZS14# 右側 |
1 | ||
| 87226-30050 |
GS141,JZS141,143,145,LS141 右側 |
1 | ||
| 87226-30040 |
GS141,JZS141,143,145,LS141 左側 |
1 | ||
| 87226-30060 |
UZS143,145 左側 |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30020 |
JZS147,149,UZS14# 右側 |
1 | ||
| 87226-30050 |
GS141,JZS141,143,145,LS141 右側 |
1 | ||
| 87226-30040 |
GS141,JZS141,143,145,LS141 左側 |
1 | ||
| 87226-30060 |
UZS143,145 左側 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28010 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-30710 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| Common parts | ||||
| 90148-60005 | ||||
| 90159-50138 | ||||
| 90159-50327 | ||||
| 90159-60025 | ||||
| 90168-60014 | ||||
| 90168-60023 | ||||
| 90189-06030 | ||||
| 90467-06121 | ||||
| 90480-01617 | ||||
| 90480-01618 | ||||
| 90480-31007 | ||||
| 93568-55014 | ||||
