UZS145-ATPZK (1992)

Toyota Crown/Crown Majesta

Production Oct 1992 - Aug 1995
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

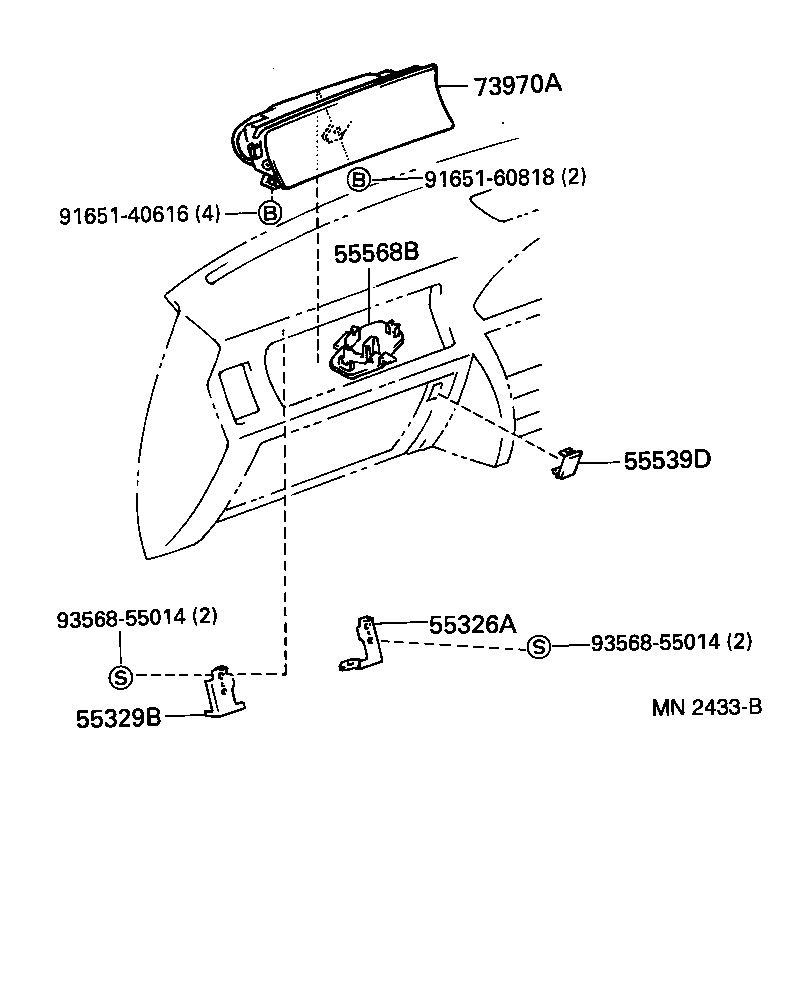

ILLUST NO. 2 OF 2(9308- )JZS147,149,UZS14#

Click highlighted areas on diagram

diagram 55326A 55329B 55539D 55568B 73970A 9165140616 9165160818 9356855014 9356855014
Part # Description Qty Price
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-30030

JZS14#,LS141,UZS14#

 1
55328-30040

JZS147,149,UZS14#

ｱﾘ(ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ)

 1
55326-30050

GS141,JZS141,143,145,LS141

 1
55326-30030

JZS147,149,UZS14#

 1
55329B - STAY, INSTRUMENT PANEL, NO.4
55329-30040

JZS147,149,UZS14#

 1
55539D - COVER, SPARE SWITCH HOLE
55546-30030

GS141,JZS14#,LS141,UZS14#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-30080

JZS147,149,UZS14#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-39075E0

JZS147,149,UZS14#

DK.ROSE,TRIM4#

 1
73970-39075E0

JZS147,149,UZS14#

DK.ROSE,TRIM4#

 1
73970-39075B0

JZS147,149,UZS14#

SHADOW GRAY,TRIM1#

 1
73970-39075J0

JZS149,UZS141,143,145

DK.BLUE,TRIM8#

 1
73970-39075J0

JZS147,149,UZS14#

DK.BLUE,TRIM8#

 1
73970-39075B0

JZS147,149,UZS14#

SHADOW GRAY,TRIM1#

 1
Common parts
91651-40616
91651-60818
93568-55014
