UZS145-ATPZK (1992)

Toyota Crown/Crown Majesta

Production Oct 1992 - Aug 1995
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

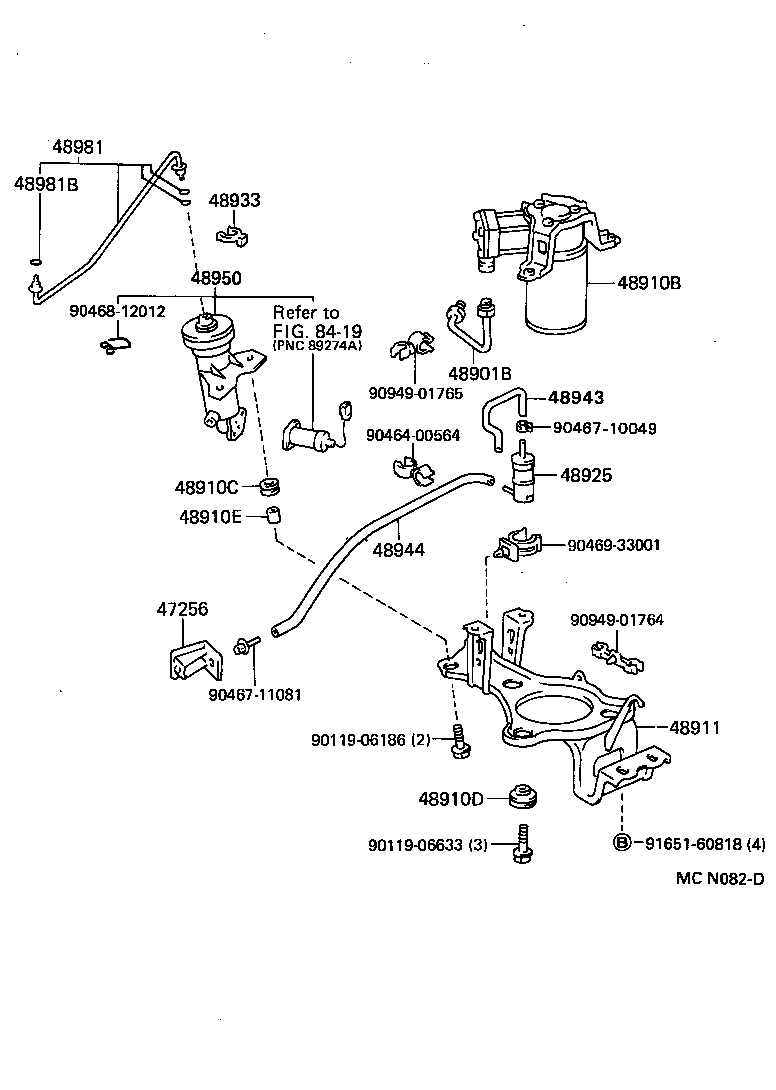

ILLUST NO. 2 OF 2(9110-9508)UZS143,145 ; (9110- )JZS149,UZS14#

Click highlighted areas on diagram

diagram 47256 48901B 48910B 48910C 48910D 48910E 48911 48925 48933 48943 48944 48950 48981 48981B 8419 9011906186 9011906633 9046400564 9046710049 9046711081 9046812012 9046933001 9094901764 9094901765 9165160818
Part # Description Qty Price
47256 - GROMMET, CAP
47256-30010

JZS149,UZS141,143,145

 1
48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR)
90947-02673

JZS149,UZS141,143,145

 1
48910B - COMPRESSOR ASSY, HEIGHT CONTROL
48910-30130

JZS149,UZS141,143,145

 1
48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
90385-08013

JZS149,UZS141,143,145

 2
48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR)
90389-06045

JZS149,UZS141,143,145

 3
48910E - SPACER(FOR HEIGHT CONTROL COMPRESSOR)
90560-06033

JZS149,UZS141,143,145

 2
48911 - BRACKET, HEIGHT CONTROL COMPRESSOR
48911-30030

JZS149,UZS141,143,145

 1
48925 - FILTER, HEIGHT CONTROL
48925-24021

JZS149,UZS141,143,145

 1
48933 - HOLDER, AIR CONNECTOR CLIP
48933-30010

JZS145,149,UZS141,143,145

 2
48943 - HOSE, HEIGHT CONTROL, NO.1
48943-30060

JZS149,UZS141,143,145

 1
48950 - DRYER ASSY, HEIGHT CONTROL
48950-30120

JZS149,UZS141,143,145

 1
48981 - TUBE, HEIGHT CONTROL, NO.1
48982-30040

JZS149,UZS141,143,145

 1
48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1)
90301-04006

JZS149,UZS141,143,145

 3
Common parts
90119-06186
90119-06633
90464-00564
90467-10049
90467-11081
90468-12012
90469-33001
90949-01764
90949-01765
91651-60818
Linked diagrams
8419
