UZS145-ATPZK (1992)

Toyota Crown/Crown Majesta

Production Oct 1992 - Aug 1995
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )1UZFE..UZS143,145

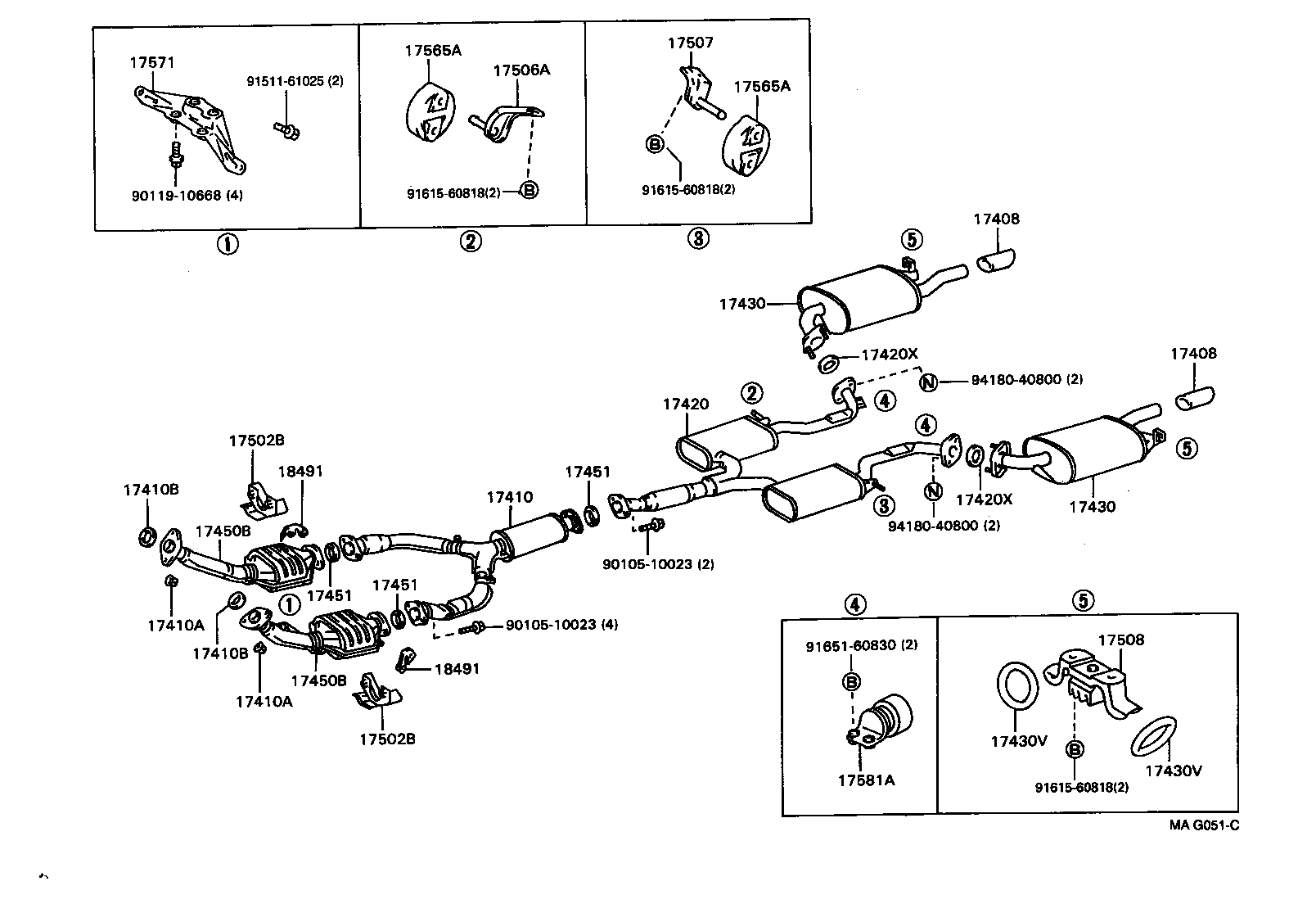

Click highlighted areas on diagram

diagram 17408 17408 17410 17410A 17410A 17410B 17410B 17420 17420X 17420X 17430 17430 17430V 17430V 17450B 17450B 17451 17451 17451 17502B 17502B 17506A 17507 17508 17565A 17565A 17571 17581A 18491 18491 9010510023 9010510023 9011910668 9151161025 9161560818 9161560818 9161560818 9165160830 9418040800 9418040800
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-50010

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17408-74040

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-50010

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17408-74040

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-50120

1UZFE..UZS143,145

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2JZGE,1UZFE..JZS143,145,147,149,UZS143,145

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2JZGE,1UZFE..JZS143,145,147,149,UZS143,145

 4
17410B - GASKET, EXHAUST PIPE
90917-06075

1UZFE..UZS143,145

 2
17410B - GASKET, EXHAUST PIPE
90917-06075

1UZFE..UZS143,145

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-50090

1UZFE..UZS143,145

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

2JZGE,1UZFE..JZS147,149,UZS14#

 2
90917-06062

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

2JZGE,1UZFE..JZS147,149,UZS14#

 2
90917-06062

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-50060

1UZFE..UZS14#

右側

 1
17440-50040

1UZFE..UZS14#

左側

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-50060

1UZFE..UZS14#

右側

 1
17440-50040

1UZFE..UZS14#

左側

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

2JZGE,1UZFE..JZS147,149,UZS14#

 4
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

2JZGE,1UZFE..JZS147,149,UZS14#

 4
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17460-50010

1UZFE..UZS143,145

左側

 1
17450-50020

1UZFE..UZS143,145

右側

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17460-50010

1UZFE..UZS143,145

左側

 1
17450-50020

1UZFE..UZS143,145

右側

 1
17451 - GASKET, EXHAUST PIPE
90917-06056

1UZFE..UZS143,145

 3
17451 - GASKET, EXHAUST PIPE
90917-06056

1UZFE..UZS143,145

 3
17451 - GASKET, EXHAUST PIPE
90917-06056

1UZFE..UZS143,145

 3
17502B - BRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17502-50050

1UZFE..UZS143,145

 2
17502B - BRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17502-50050

1UZFE..UZS143,145

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-50060

2JZGE,1UZFE..JZS147,149,UZS14#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-50020

2JZGE,1UZFE..JZS147,149,UZS14#

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-50010

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

2JZGE,1UZFE..JZS147,149,UZS14#

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17506-50050

1UZFE..UZS14#

 1
17581A - DAMPER, EXHAUST PIPE
17581-50060

1UZFE..UZS143,145

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-74020

1UZFE..UZS143,145

右側

 1
18491-63010

1UZFE..UZS143,145

左側

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-74020

1UZFE..UZS143,145

右側

 1
18491-63010

1UZFE..UZS143,145

左側

 1
Common parts
90105-10023
90119-10668
91511-61025
91615-60818
91651-60830
94180-40800
