UZS141-ATPZK (1991)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 2(9110- )JZS147,149,UZS14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30580 |
JZS147,149,UZS14# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30660 |
JZS147,149,UZS14# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30360 |
JZS147,149,UZS14# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30420 |
JZS147,149,UZS14# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67503-30010 |
JZS147,149,UZS14# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67504-30010 |
JZS147,149,UZS14# |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-30160 |
JZS147,149,UZS14# |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-30160 |
JZS147,149,UZS14# |
1 | ||
| 67443A - PLATE, FRONT DOOR WINDOW OPENING, OUTER RH | ||||
| 67443-32030 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 67444A - PLATE, FRONT DOOR WINDOW OPENING, OUTER LH | ||||
| 67443-32030 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30100 |
JZS147,149,UZS14# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30100 |
JZS147,149,UZS14# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-30040 |
JZS147,149,UZS14# |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-30030 |
JZS147,149,UZS14# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30330 |
JZS147,149,UZS14# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30190 |
JZS147,149,UZS14# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30200 |
JZS147,149,UZS14# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30200 |
JZS147,149,UZS14# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20130 |
JZS14#,LS141,UZS141 |
17 | ||
| 67868-20130 |
JZS147,149,UZS14# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
JZS14#,LS141,UZS141 |
17 | ||
| 67868-20130 |
JZS147,149,UZS14# |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
JZS147,149,UZS14# |
6 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30010 |
JZS147,149,UZS14# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30370 |
UZS141 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30380 |
UZS141 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30370 |
UZS141 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30330 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-30310 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30570 |
UZS141 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-30370 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-30380 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30370 |
UZS141 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30380 |
UZS141 *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30370 |
UZS141 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30330 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-30370 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-30310 |
JZS149,UZS141,143,145 *TEM,厚さ=5.0,BROBZE |
1 | ||
| 68102-30570 |
UZS141 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-30380 |
JZS149,UZS141,143,145..B,C *SERT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30230 |
JZS147,149,UZS14# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30070 |
JZS147,149,UZS14# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30030 |
JZS147,149,UZS14# |
1 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68211-30140 |
JZS147,149,UZS14# |
6 | ||
| 68212-30010 |
JZS149,UZS141 ﾀｲﾌﾟ B |
2 | ||
| 68211-30140 |
JZS149,UZS141 ﾀｲﾌﾟ A |
4 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68211-30140 |
JZS147,149,UZS14# |
6 | ||
| 68212-30010 |
JZS149,UZS141 ﾀｲﾌﾟ B |
2 | ||
| 68211-30140 |
JZS149,UZS141 ﾀｲﾌﾟ A |
4 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-30190 |
JZS147,149,UZS14# |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-30080 |
JZS147,149,UZS14# 右側 |
1 | ||
| 68620-30020 |
JZS147,149,UZS14# 左側 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-30020 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-30020 |
GS141,JZS14#,LS141,UZS14# |
1 | ||
| Common parts | ||||
| 90119-06426 | ||||
| 90148-80006 | ||||
| 90167-50022 | ||||
| 90168-40088 | ||||
| 90179-06026 | ||||
| 90179-06159 | ||||
| 90179-08001 | ||||
| 90189-04200 | ||||
| 91651-40612 | ||||
| 91651-40818 | ||||
| 93311-16012 | ||||
| 93560-54025 | ||||

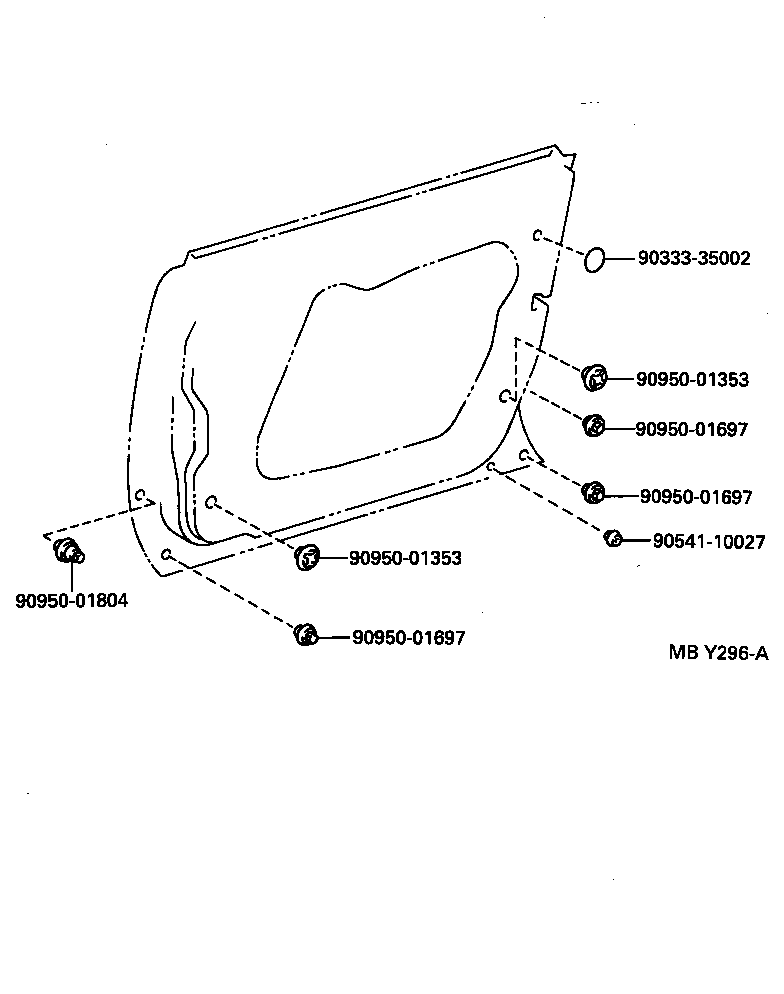

ILLUST NO. 1 OF 2(9110- )JZS147,149,UZS14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-35002 | ||||
| 90541-10027 | ||||
| 90950-01353 | ||||
| 90950-01697 | ||||
| 90950-01804 | ||||

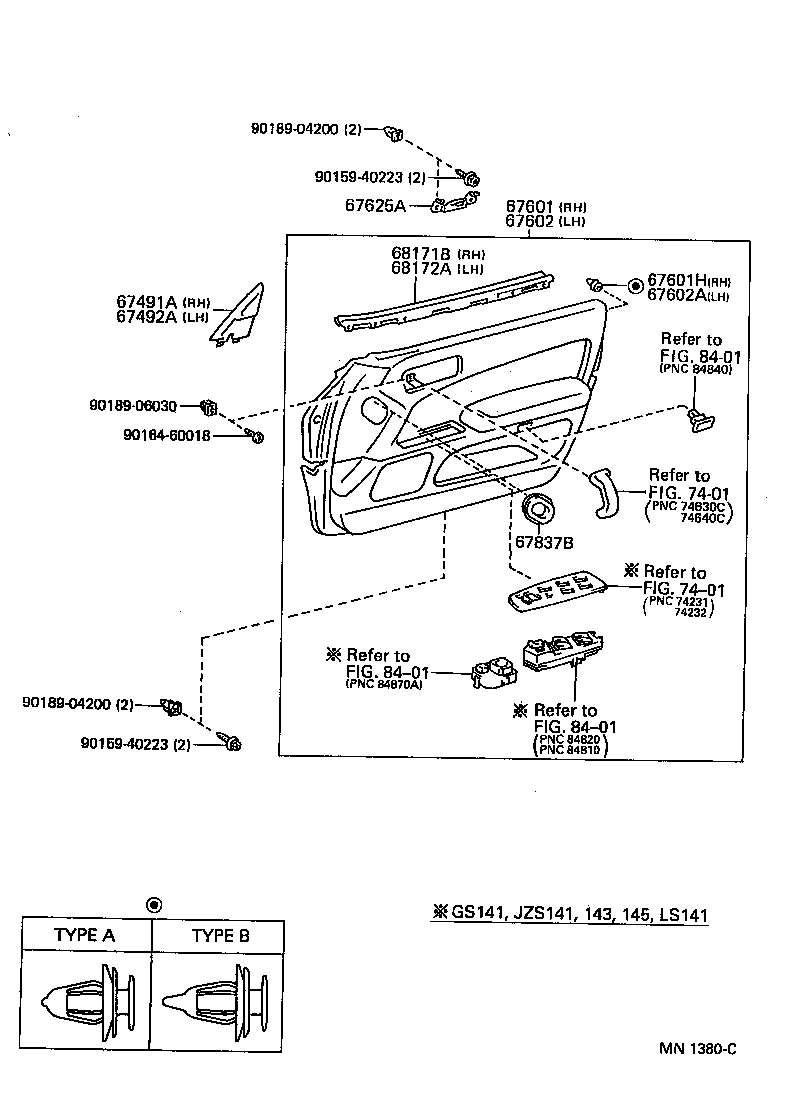

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30100 |
JZS147,149,UZS14# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30100 |
JZS147,149,UZS14# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3A500B0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A500J0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A520J0 |
JZS149,UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67650-3A520B0 |
JZS149,UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A520E0 |
JZS149,UZS141 QUARTZ,TRIM4# |
1 | ||
| 67650-3A500E0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A510E0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A510B0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A520B0 |
UZS141 CﾀｲﾌﾟS-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A520E0 |
UZS141 CﾀｲﾌﾟS-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A500E0 |
UZS141 QUARTZ,TRIM4# |
1 | ||
| 67650-3A500B0 |
UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A500J0 |
UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67650-3A501J2 |
UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67650-3A501E3 |
UZS141 QUARTZ,TRIM4# |
1 | ||
| 67650-3A501B3 |
UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A501B3 |
JZS147,149,UZS141,147 SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A511E1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67650-3A501J2 |
JZS147,149,UZS141,147 DK.BLUE,TRIM8# |
1 | ||
| 67650-3A511B1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-3A501E3 |
JZS147,149,UZS141,147 QUARTZ,TRIM4# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
JZS147,149,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28020 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28030 |
JZS147,149,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67771-28030 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F310B0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F310E0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F330B0 |
JZS149,UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F330E0 |
JZS149,UZS141 QUARTZ,TRIM4# |
1 | ||
| 67620-3F310J0 |
UZS141 V ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F330J0 |
JZS149,UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F320B0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F320E0 |
JZS149,UZS14#..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F310J0 |
UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F310E0 |
UZS141 QUARTZ,TRIM4# |
1 | ||
| 67620-3F310B0 |
UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F330B0 |
UZS141 CﾀｲﾌﾟS-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F330E0 |
UZS141 CﾀｲﾌﾟS-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F311B3 |
UZS141 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F321E1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 67620-3F311E3 |
UZS141 QUARTZ,TRIM4# |
1 | ||
| 67620-3F311J2 |
UZS141 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F321B1 |
JZS149,UZS141,143,145..B,C L-2 ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F311J2 |
JZS147,149,UZS141,147 DK.BLUE,TRIM8# |
1 | ||
| 67620-3F311B3 |
JZS147,149,UZS141,147 SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F311E3 |
JZS147,149,UZS141,147 QUARTZ,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28030 |
JZS147,149,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67771-28020 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28020 |
JZS147,149,UZS14# ﾀｲﾌﾟ A |
1 | ||
| 67771-28030 |
GS141,JZS14#,LS141,UZS14# ﾀｲﾌﾟ B |
4 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-30070 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-50010 |
GS141,JZS14#,LS141,UZS14# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30070 |
JZS147,149,UZS14# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30030 |
JZS147,149,UZS14# |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90164-60018 | ||||
| 90189-04200 | ||||
| 90189-06030 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
