UZS141-ATPZK (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1UZFE..UZS141 ; (9308- )1UZFE..UZS147

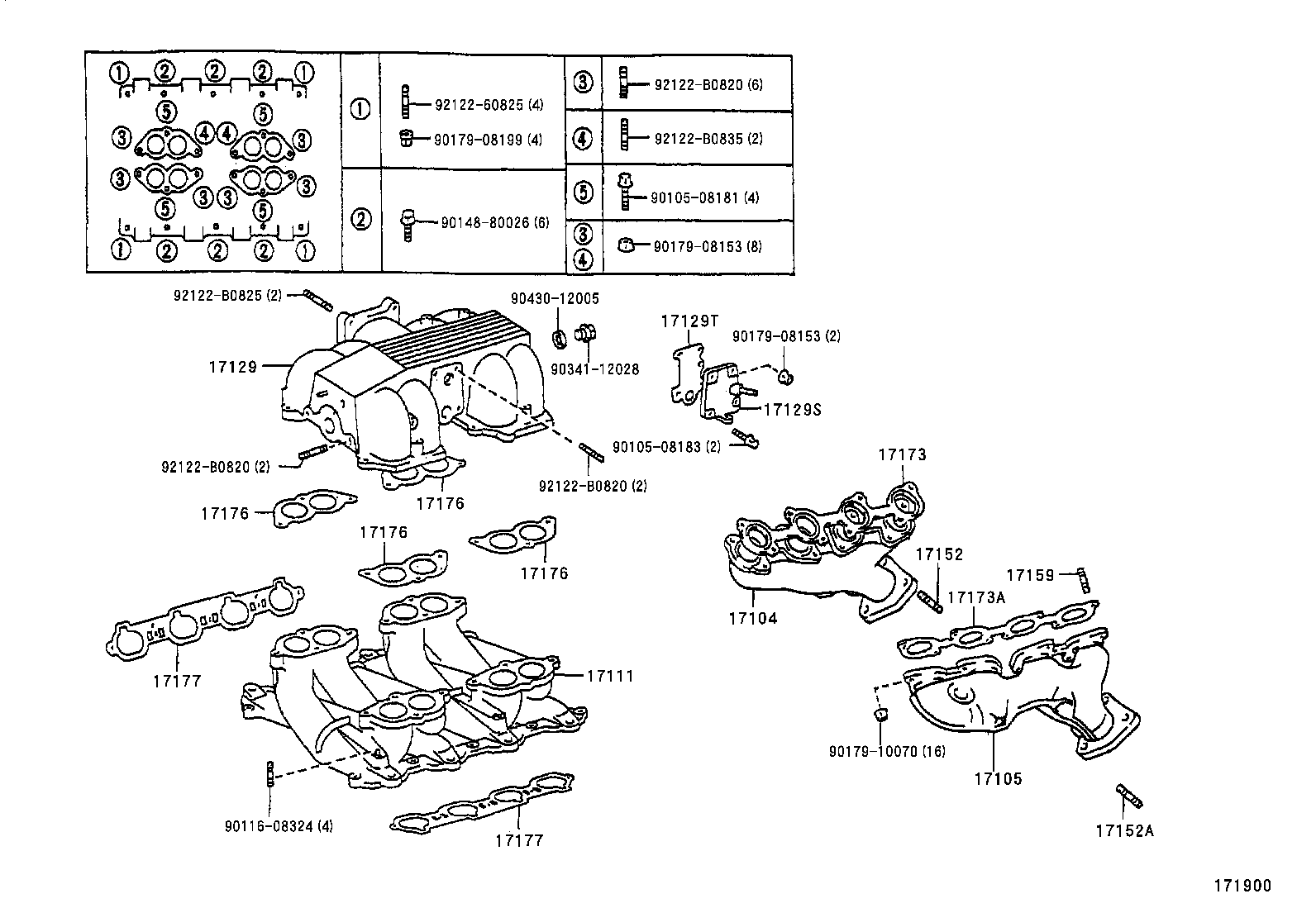

Click highlighted areas on diagram

diagram 17104 17105 17111 17129 17129S 17129T 17152 17152A 17159 17173 17173A 17176 17176 17176 17176 17177 17177 9010508181 9010508183 9011608324 9014880026 9017908153 9017908153 9017908199 9017910070 9034112028 9043012005 9212260825 92122B0820 92122B0820 92122B0820 92122B0825 92122B0835
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-50030

1UZFE..UZS141,147

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-50030

1UZFE..UZS141,147

 1
17111 - MANIFOLD, INTAKE
17111-50020

1UZFE..UZS14#

 1
17129 - TANK, INTAKE AIR SURGE
17109-50020

1UZFE..UZS141

 1
17109-50030

1UZFE..UZS14#

 1
17129S - PLATE(FOR INTAKE AIR SURGE TANK)
25615-50010

1UZFE..UZS14#

 1
17129T - GASKET(FOR INTAKE AIR SURGE TANK)
25629-50010

1UZFE..UZS14#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

1UZFE..UZS141,147

 3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

1UZFE..UZS141,147

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10006

1UZFE..UZS14#

 16
90126-10015

1UZFE..UZS14#

 16
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50010

1UZFE..UZS141,147

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-50010

1UZFE..UZS141,147

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50021

1UZFE..UZS14#

 4
17176-50020

1UZFE..UZS14#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50021

1UZFE..UZS14#

 4
17176-50020

1UZFE..UZS14#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50021

1UZFE..UZS14#

 4
17176-50020

1UZFE..UZS14#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50021

1UZFE..UZS14#

 4
17176-50020

1UZFE..UZS14#

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50011

1UZFE..UZS14#

 2
17171-50010

1UZFE..UZS14#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50011

1UZFE..UZS14#

 2
17171-50010

1UZFE..UZS14#

 2
Common parts
90105-08181
90105-08183
90116-08324
90148-80026
90179-08153
90179-08199
90179-10070
90341-12028
90430-12005
92122-60825
92122-B0820
92122-B0825
92122-B0835
