LS151H-ATPST (1995)
Toyota Crown/Crown Majesta

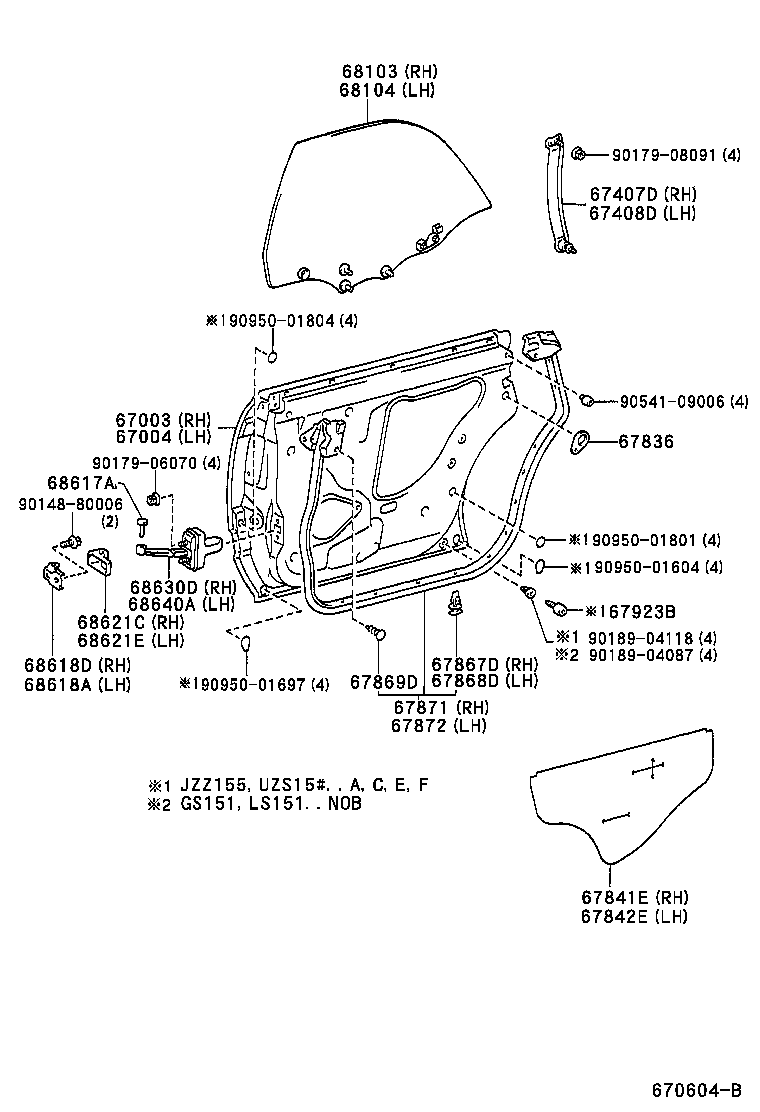

ILLUST NO. 2 OF 2(9508- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30510 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30480 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-30140 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-30130 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-32010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30350 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30210 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS151,JZS15#,LS151,UZS15#..HT |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS151,JZS15#,LS151,UZS15#..HT |
16 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
10 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30210 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30220 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-30260 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68103-30500 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68103-30230 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-30490 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-30230 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-30500 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-30490 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) *UVCTT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-30260 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621E - COVER, REAR DOOR CHECK, LH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-30140 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-30050 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 90148-80006 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90189-04087 | ||||
| 90189-04118 | ||||
| 90541-09006 | ||||
| 90950-01604 | ||||
| 90950-01697 | ||||
| 90950-01801 | ||||
| 90950-01804 | ||||

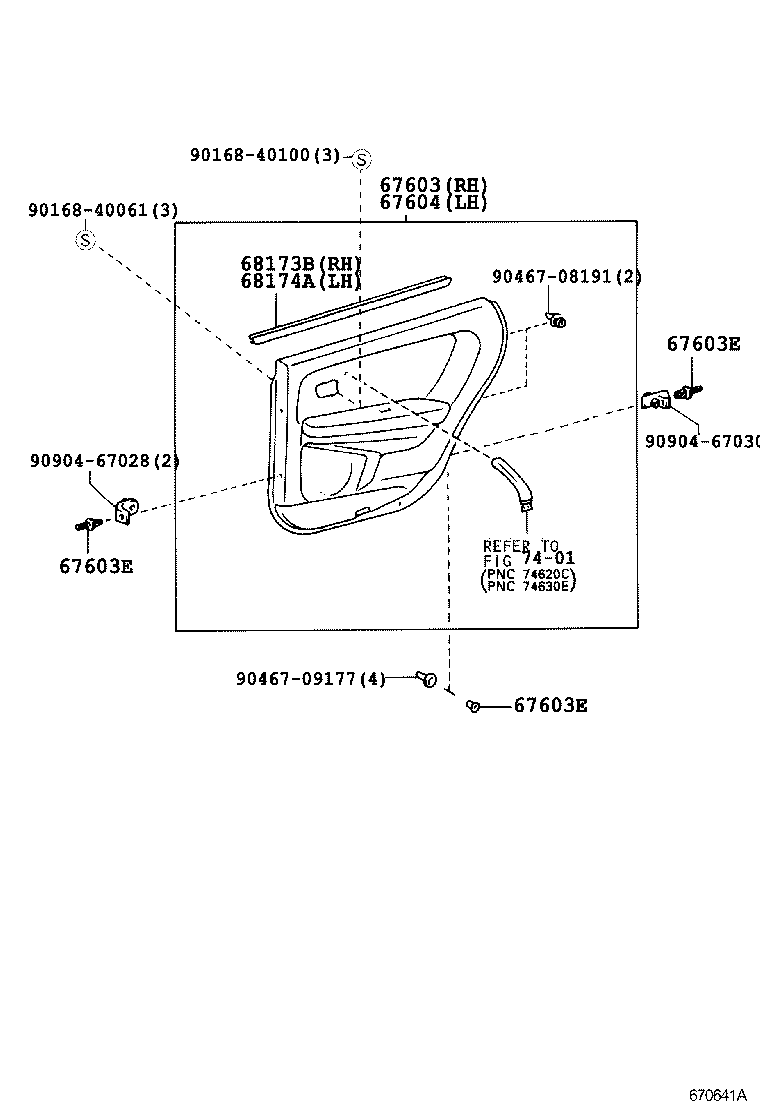

ILLUST NO. 1 OF 2(9508- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3F020E0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3F020B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67630-3F040B0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67630-3F040E0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3A860E0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3F310E0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3F310B0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67630-3A860B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E5 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
10 | ||
| 90467-07066B2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) DK.BLUE GRAY,TRIM1# |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E5 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
10 | ||
| 90467-07066B2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) DK.BLUE GRAY,TRIM1# |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E5 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
10 | ||
| 90467-07066B2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) DK.BLUE GRAY,TRIM1# |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3F040E0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F020B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67640-3F020E0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F040B0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67640-3A880B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG) ﾄﾘﾑ = TYPE B-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67640-3A880E0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ﾄﾘﾑ = TYPE B-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F330E0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F330B0 |
GS151,JZS151,153,LS151..ROYEX ﾄﾘﾑ = TYPE D-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-30080 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-30080 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 90168-40061 | ||||
| 90168-40100 | ||||
| 90467-08191 | ||||
| 90467-09177 | ||||
| 90904-67028 | ||||
| 90904-67030 | ||||
| Linked diagrams | ||||
| 7401 | ||||
