Toyota Crown/crown majesta LS151 FLOOR SIDE MEMBER

LS151H-ATPST (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999

Engine 2LTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

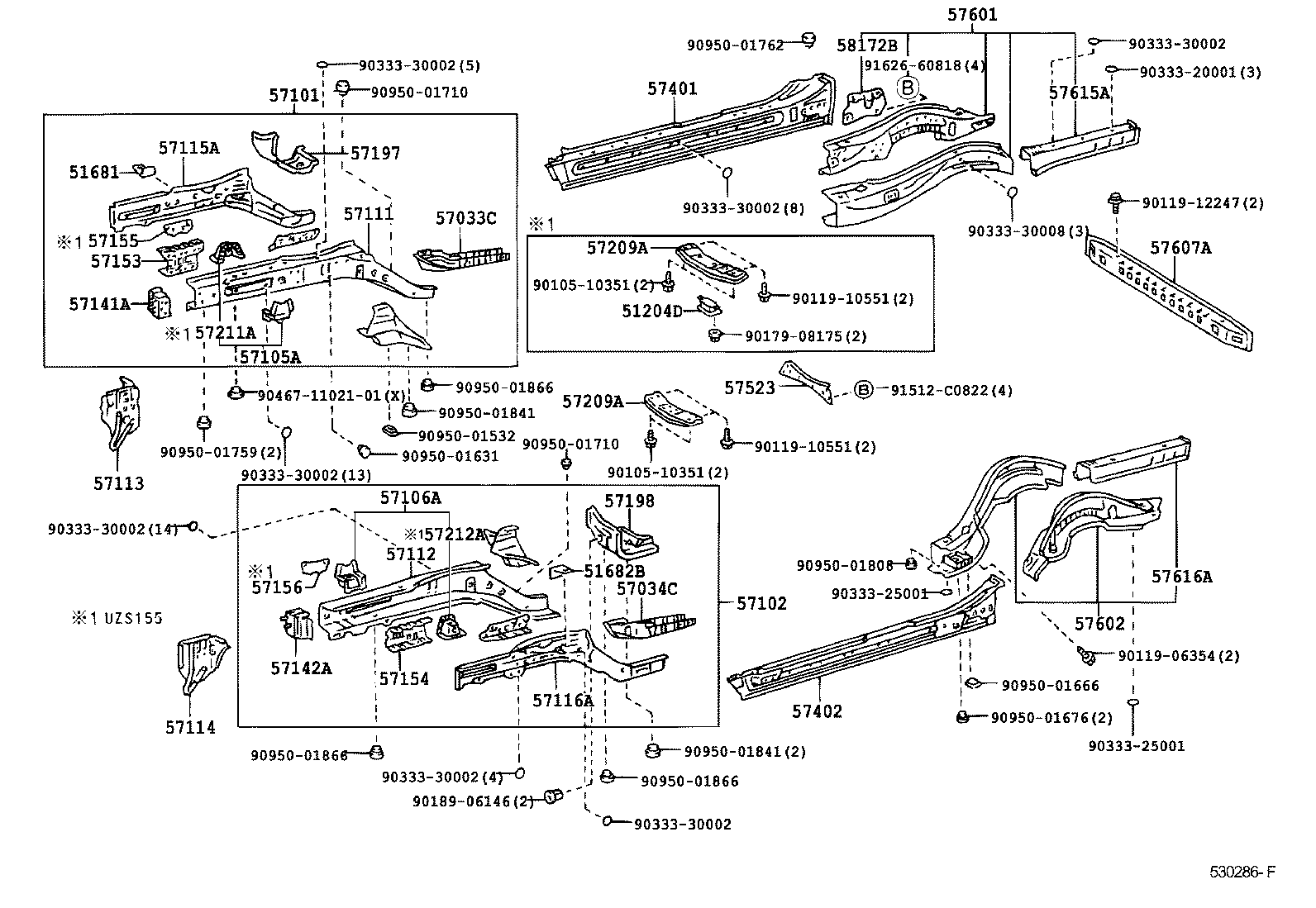

Click highlighted areas on diagram

Part #	Description	Period	Qty
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-30030	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57101-30031	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-30030	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57111 - MEMBER, FRONT SIDE, RH
57111-30900	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57111-30904	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	04/1997 - 12/2999	1
57112 - MEMBER, FRONT SIDE, LH
57112-30900	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-22070	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
57125A - PLATE, STRUT BAR BRACKET, RH
57125-22070	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57126A - PLATE, STRUT BAR BRACKET, LH
57126-22050	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57153-30020	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
57197 - BOX, TORQUE, FRONT RH
57197-30021	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57198 - BOX, TORQUE, FRONT LH
57198-30021	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-30060	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 09/1999	1
57401-30040	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-30030	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57402-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 09/1999	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22130	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22100	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57616-30020	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	04/1997 - 12/2999	1
57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57625-22070	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
57626-30020	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
58035B - BRACE SUB-ASSY, REAR FLOOR PANEL, RH
58035-30030	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
58036A - BRACE SUB-ASSY, REAR FLOOR PANEL, LH
58036-30030	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
Common parts
90105-08315
90105-10383
90119-08516
90189-06150
90333-25003
90333-30002
90333-30008
90333-40001
90467-21012
90950-01665
90950-01676
90950-01759
90950-01762
90950-01765
90950-01826
90950-01833
90950-01841
90950-01842
90950-06001
90950-06108

(9508- )A,C,E,F

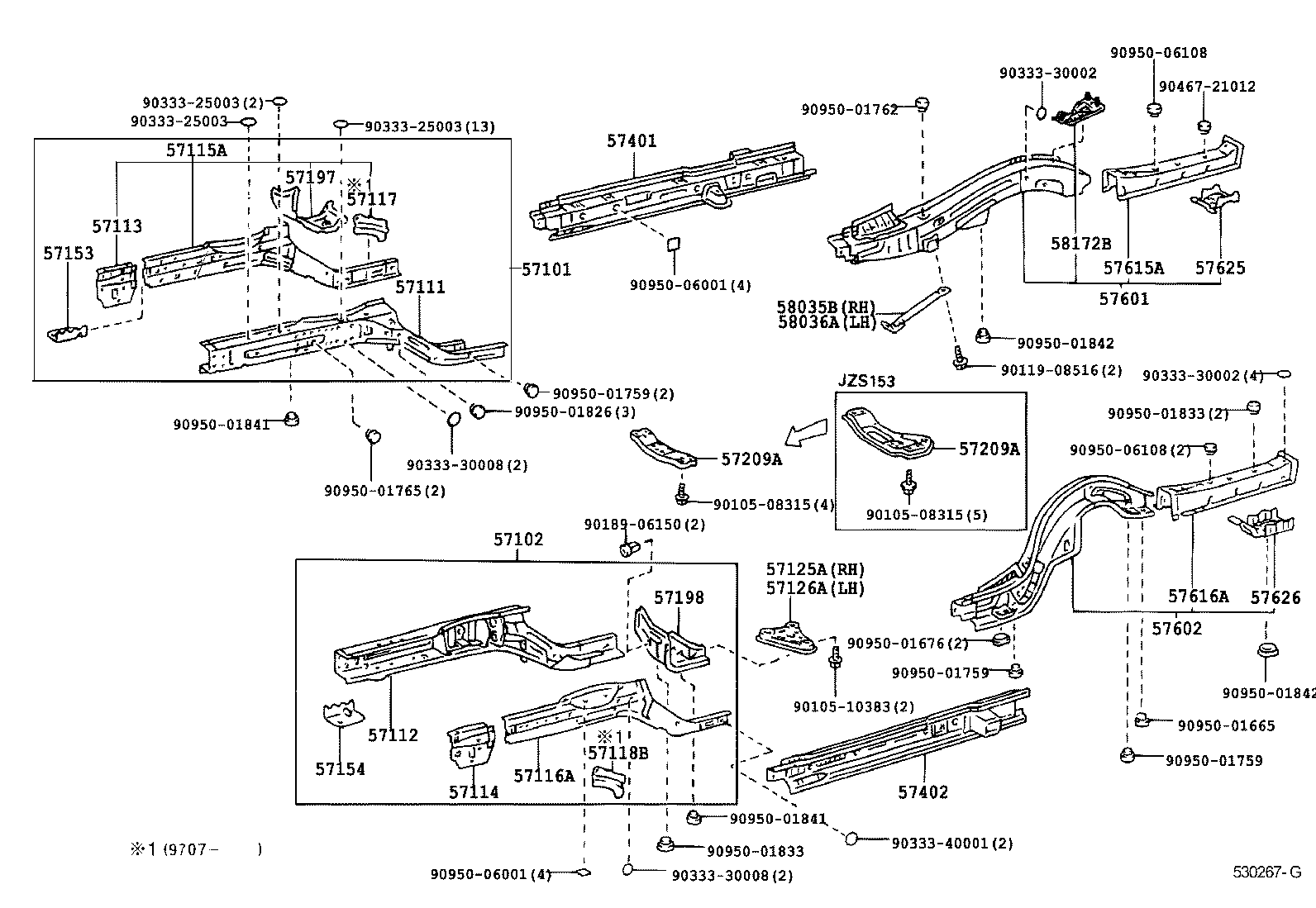

Click highlighted areas on diagram

Part #	Description	Period	Qty
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-30030	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57101-30031	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-30030	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57111 - MEMBER, FRONT SIDE, RH
57111-30900	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57111-30904	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	04/1997 - 12/2999	1
57112 - MEMBER, FRONT SIDE, LH
57112-30900	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22080	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57153-30020	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
57197 - BOX, TORQUE, FRONT RH
57197-30021	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57198 - BOX, TORQUE, FRONT LH
57198-30021	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300	GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-30060	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 09/1999	1
57401-30040	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-30030	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 07/1997	1
57402-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 09/1999	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-30900	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22130	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22100	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 04/1997	1
57616-30020	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	04/1997 - 12/2999	1
Common parts
90105-10351
90119-06354
90119-10551
90119-12247
90179-08175
90189-06146
90333-20001
90333-25001
90333-30002
90333-30008
90467-1102101
90950-01532
90950-01631
90950-01666
90950-01676
90950-01710
90950-01759
90950-01762
90950-01808
90950-01841
90950-01866
91512-C0822
91626-60818

LS151H-ATPST (1995)

(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

(9508- )A,C,E,F
