LS151H-ATPST (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )2LTE

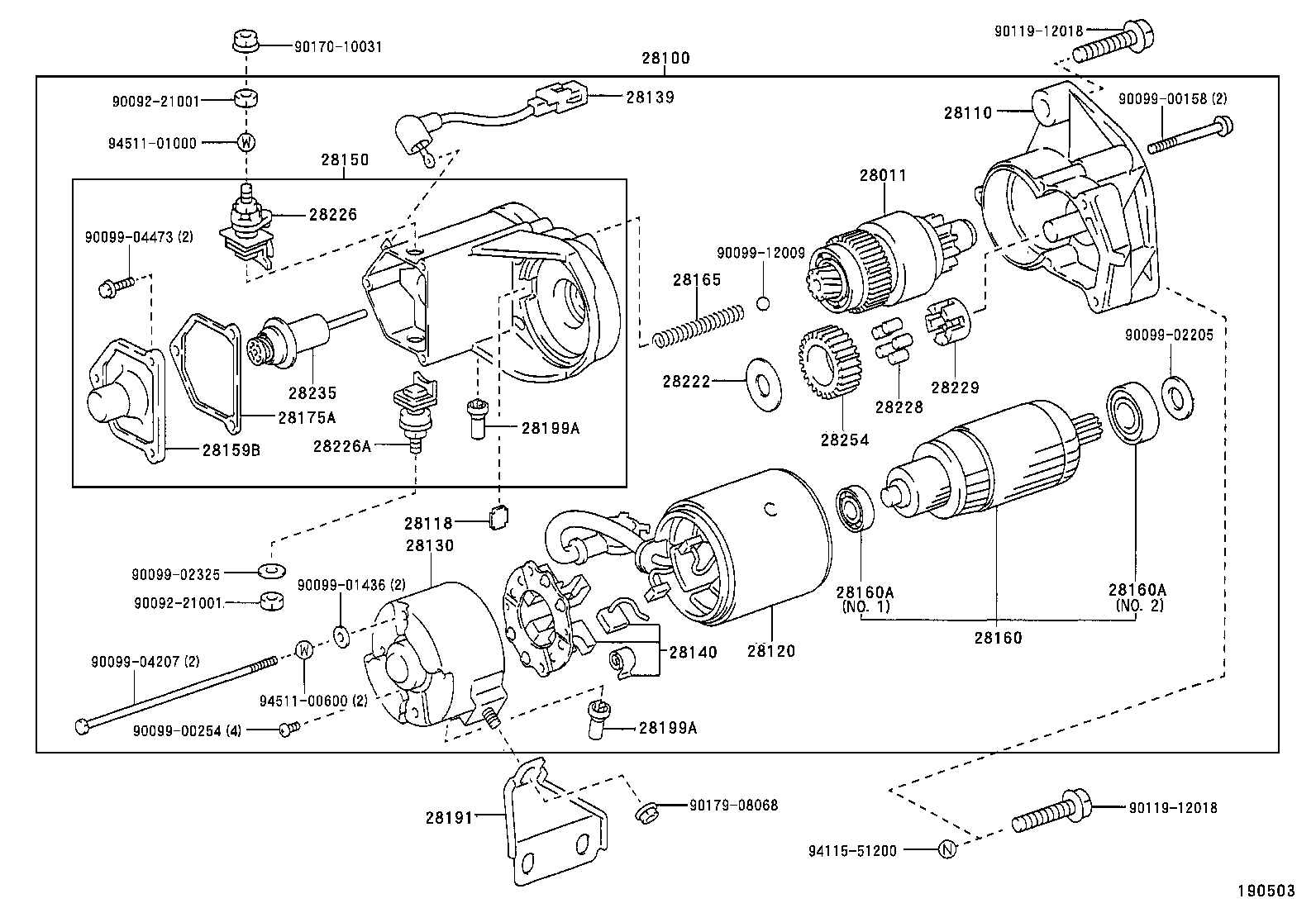

Click highlighted areas on diagram
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2LTE..LS151 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54370 |
2LTE..LS151 12V 2.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2LTE..LS151 |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2LTE..LS151 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2LTE..LS151 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54390 |
2LTE..LS151 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54251 |
2LTE..LS151 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2LTE..LS151 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54320 |
2LTE..LS151 12V 2.7KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2LTE..LS151 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
2LTE..LS151 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2LTE..LS151 NO.1 |
1 | ||
| 90099-10119 |
2LTE..LS151 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2LTE..LS151 NO.1 |
1 | ||
| 90099-10119 |
2LTE..LS151 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2LTE..LS151 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-56310 |
2LTE..LS151 |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54030 |
2LTE..LS151 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-46080 |
2LTE..LS151 NO.1 |
1 | ||
| 28199-54190 |
2LTE..LS151 NO.2 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-46080 |
2LTE..LS151 NO.1 |
1 | ||
| 28199-54190 |
2LTE..LS151 NO.2 |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-54370 |
2LTE..LS151 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54320 |
2LTE..LS151 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
2LTE..LS151 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2LTE..LS151 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2LTE..LS151 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2LTE..LS151 |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-77090 |
2LTE..LS151 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-01436 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12018 | ||||
| 90170-10031 | ||||
| 90179-08068 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
