LS151H-ATPST (1995)
Toyota Crown/Crown Majesta

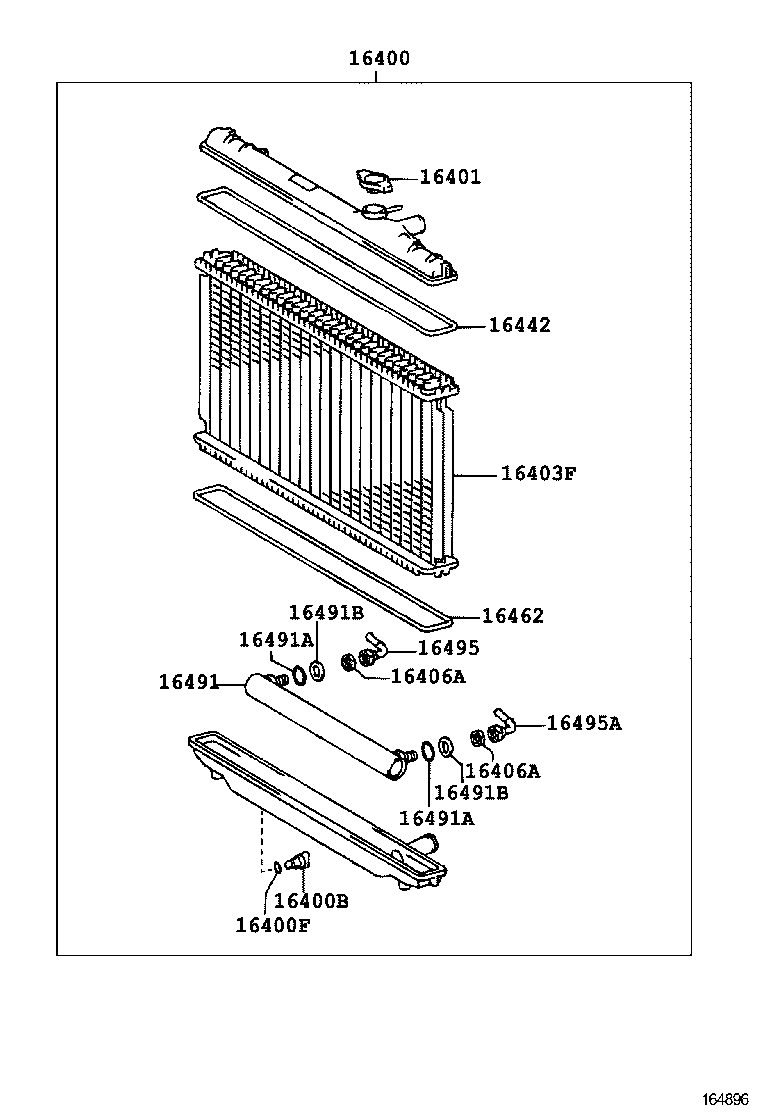

ILLUST NO. 2 OF 2(9508- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B360 |
2LTE..LS151 |
1 | ||
| 16400-5B650 |
2LTE..LS151 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2LTE..LS151 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2LTE..LS151 |
1 | ||
| 16492-21050 |
2LTE..LS151 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2LTE..LS151 |
1 | ||
| 16401-62100 |
2LTE..LS151 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-46390 |
2LTE..LS151 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
2LTE..LS151 |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
2LTE..LS151 |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-46040 |
2LTE..LS151 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
2LTE..LS151 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-5B100 |
2LTE..LS151 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
2LTE..LS151 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
2LTE..LS151 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
2LTE..LS151 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
2LTE..LS151 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-5B100 |
2LTE..LS151 |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16495-5B100 |
2LTE..LS151 |
1 | ||

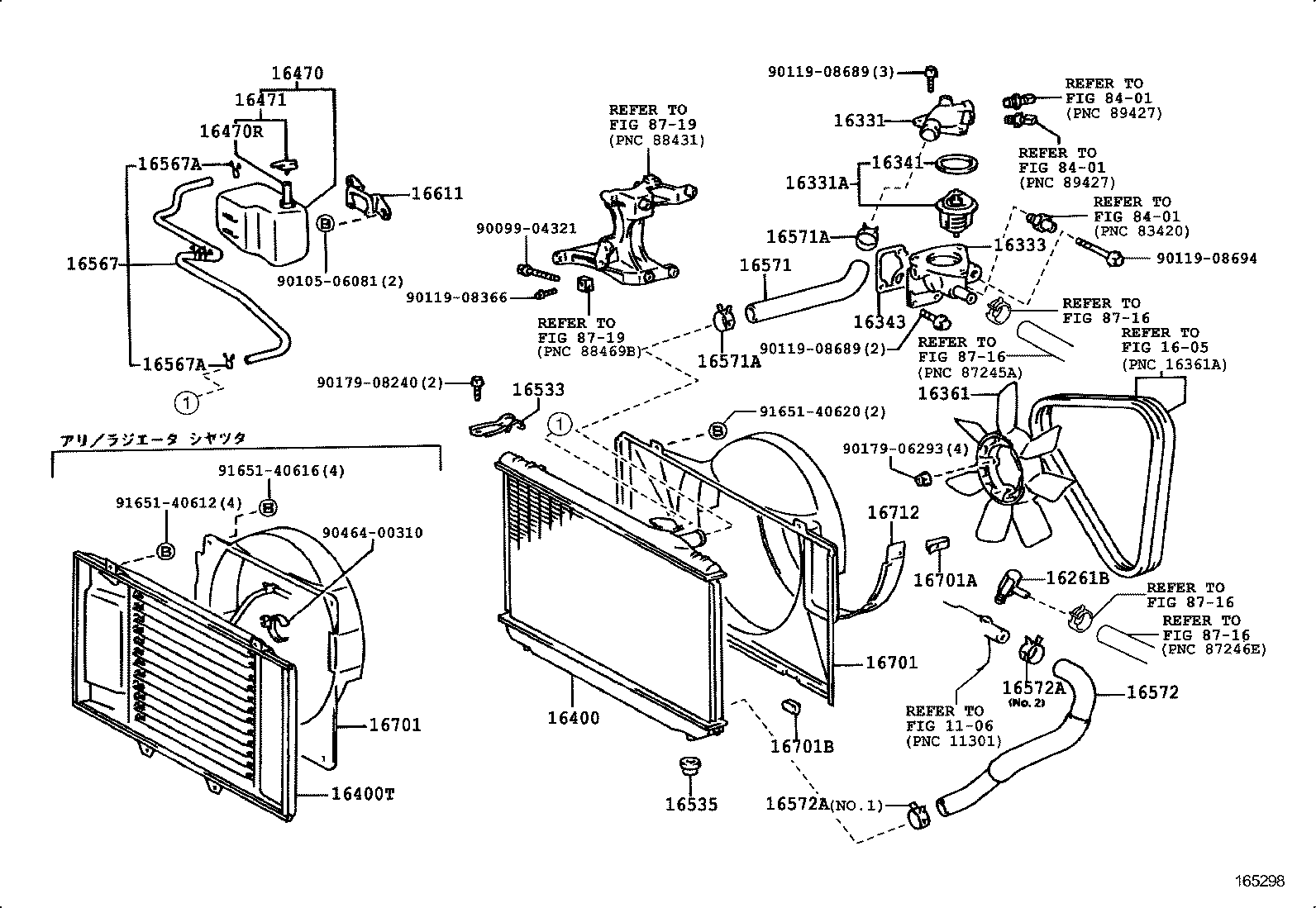

ILLUST NO. 1 OF 2(9508- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 87251-89113 |
2LTE..LS151 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54130 |
2LTE..LS151 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
2LTE..LS151 *WAX 88−100 |
1 | ||
| 16340-54010 |
2LTE..LS151 *WAX 88−100,KUZEH |
1 | ||
| 16340-54010 |
2LTE..LS151 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54123 |
2LTE..LS151 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
2LTE..LS151 |
1 | ||
| 16341-35010 |
2LTE..LS151 |
2 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
2LTE..LS151 |
1 | ||
| 16361 - FAN | ||||
| 16361-54060 |
2LTE..LS151 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B360 |
2LTE..LS151 |
1 | ||
| 16400-5B650 |
2LTE..LS151 |
1 | ||
| 16400T - SHUTTER ASSY, RADIATOR | ||||
| 53180-30040 |
2LTE..LS151 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54300 |
2LTE..LS151 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LTE..LS151 *H,L=100 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54270 |
2LTE..LS151 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46050 |
2LTE..LS151 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
2LTE..LS151 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54120 |
2LTE..LS151 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LTE..LS151 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LTE..LS151 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54430 |
2LTE..LS151 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LTE..LS151 |
2 | ||
| 90467-37006 |
2LTE..LS151 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LTE..LS151 |
2 | ||
| 90467-37006 |
2LTE..LS151 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54490 |
2LTE..LS151 |
1 | ||
| 16572-54491 |
2LTE..LS151 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2LTE..LS151..WIB NO.1 |
1 | ||
| 90467-37006 |
2LTE..LS151 NO.1 |
1 | ||
| 90467-41004 |
2LTE..LS151 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2LTE..LS151..WIB NO.1 |
1 | ||
| 90467-37006 |
2LTE..LS151 NO.1 |
1 | ||
| 90467-41004 |
2LTE..LS151 NO.2 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54120 |
2LTE..LS151 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54550 |
2LTE..LS151 ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| 16711-54540 |
2LTE..LS151 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54550 |
2LTE..LS151 ｱﾘ(ﾗｼﾞｴ-ﾀ ｼﾔﾂﾀ) |
1 | ||
| 16711-54540 |
2LTE..LS151 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2LTE..LS151 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2LTE..LS151 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75010 |
2LTE..LS151 |
1 | ||
| Common parts | ||||
| 90099-04321 | ||||
| 90105-06081 | ||||
| 90119-08366 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90179-06293 | ||||
| 90179-08240 | ||||
| 90464-00310 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||
