LS151H-ATPQT (1995)
Toyota Crown/Crown Majesta

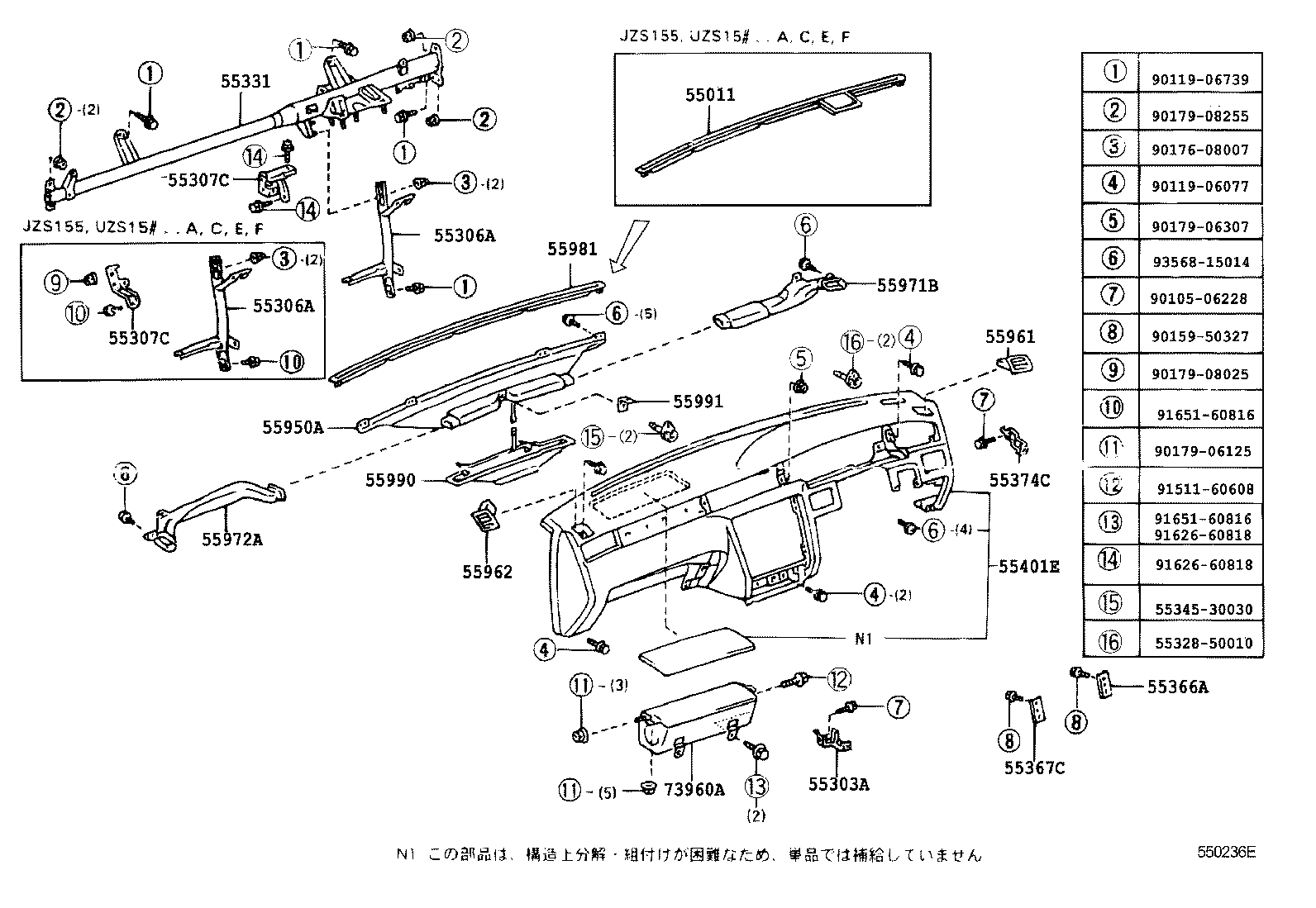

ILLUST NO. 1 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-30170 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30240 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55306-30290 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30240 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55306-30290 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55307-30190 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55307-30190 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-30120 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-30190 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55367C - BRACKET, RADIO TUNER MOUNTING, NO.3 | ||||
| 55367-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-30180 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30440E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ANTELOPE,TRIM4# |
1 | ||
| 55401-30440B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.BLUE GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30120 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30100B0 |
GS151,JZS15#,LS151,UZS15# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55961-30100E0 |
GS151,JZS15#,LS151,UZS15# ANTELOPE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30080B0 |
GS151,JZS15#,LS151,UZS15# DK.BLUE GRAY,TRIM1# |
1 | ||
| 55962-30080E0 |
GS151,JZS15#,LS151,UZS15# ANTELOPE,TRIM4# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55991 - BRACKET, DEFROSTER DUCT, NO.1 | ||||
| 55991-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0W240 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 73960-0W170 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 73960-0W110 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| Common parts | ||||
| 55328-50010 | ||||
| 55345-30030 | ||||
| 90105-06228 | ||||
| 90119-06077 | ||||
| 90119-06739 | ||||
| 90159-50327 | ||||
| 90176-08007 | ||||
| 90179-06125 | ||||
| 90179-06307 | ||||
| 90179-08025 | ||||
| 90179-08255 | ||||
| 91511-60608 | ||||
| 91626-60818 | ||||
| 91651-60816 | ||||
| 93568-15014 | ||||

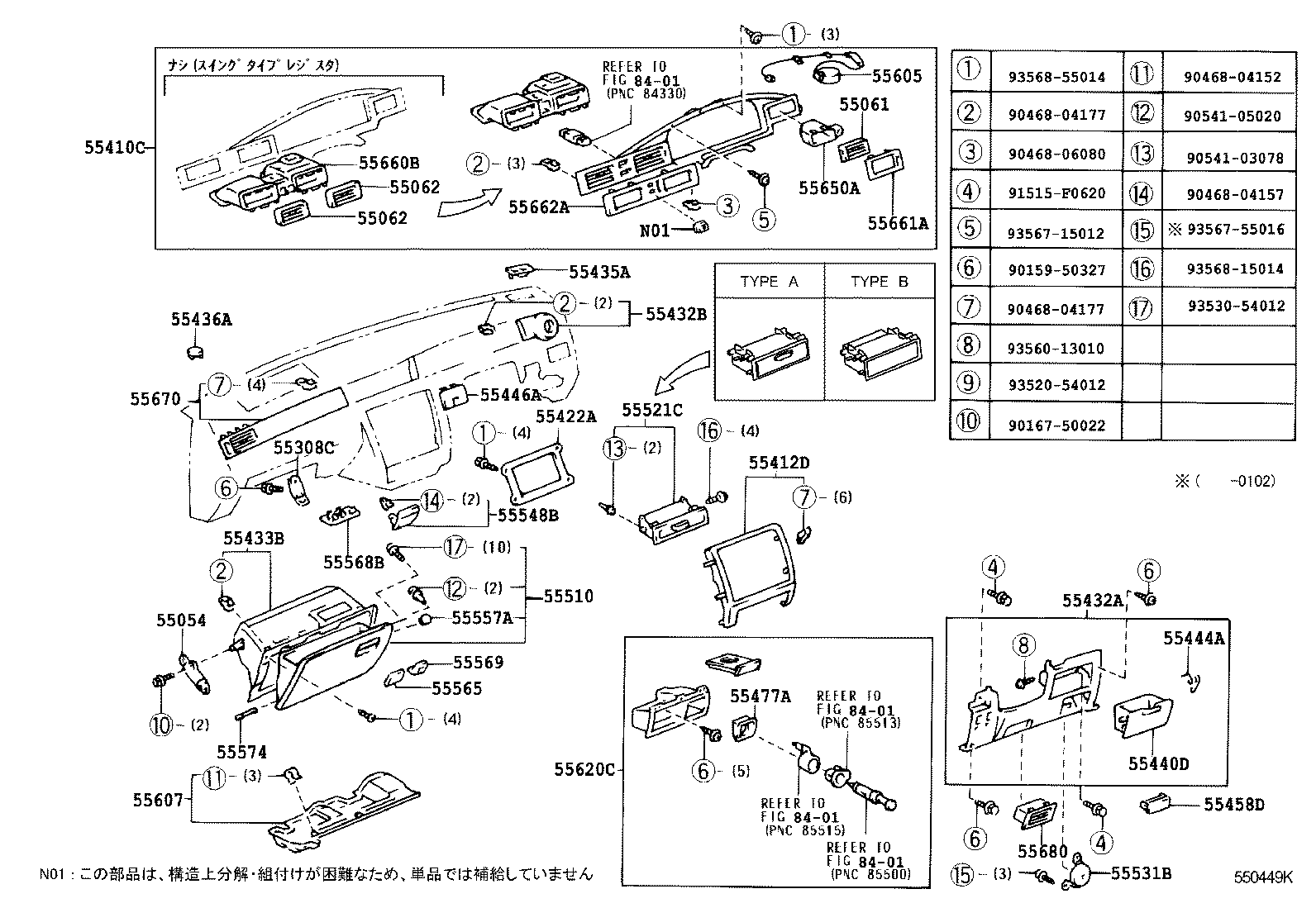

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-30230 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-30620 |
JZS153..ROY,ROYEX;GS151,JZS151,155,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) ﾓｸﾒ,ｱﾘ(ｽｲﾝｸﾞｸﾞﾘﾙ) |
1 | ||
| 55410-30460 |
JZS153..ROY;GS151,JZS151,155,LS151,UZS15#..(A,C,E,F,ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-30320 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55405-30340 |
JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-30090E1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55045-30090B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55045-30090E1 |
GS151,JZS155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55045-30090B0 |
GS151,JZS155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55045-30090B0 |
GS151,LS151..LPGTE,TDE DK.BLUE GRAY,TRIM1# |
1 | ||
| 55045-30090E1 |
GS151,LS151..LPGTE,TDE ANTELOPE,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-30010B0 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 55480-30010E1 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-30080 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30150B0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT,SALEX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55435-30150E0 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT,SALEX ANTELOPE,TRIM4# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-30090B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55440-30090E1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-22020 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-30180E0 |
JZS155..SED..ROYG;GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55446-30180B0 |
JZS155..SED..ROYG;GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-30090 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-30140E1 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55501-30140B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55565-22020E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 55569-22030B3 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 55605 - MOTOR SUB-ASSY, SWING REGISTER | ||||
| 55605-30010 |
JZS153..ROY,ROYEX;GS151..LPGTE..NOB;GS151,JZS151,155,157,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30180 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-30020 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55620-30070 |
GS151..LPGTE..NOB;GS151,JZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX ﾓｸﾒ;ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 55650A - RETAINER, INSTRUMENT PANEL RESISTER, NO.1 | ||||
| 55650-30200 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-30160 |
GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55661-30180 |
GS151..LPGTE..NOB;GS151,JZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX ﾓｸﾒ |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-30180 |
JZS153..ROY;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT,SALEX |
1 | ||
| 55662-30220 |
JZS153..ROY,ROYEX;GS151..LPGTE..NOB;GS151,JZS151,155,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,ROYT,SALEX ﾓｸﾒ,ｱﾘ(ｽｲﾝｸﾞｸﾞﾘﾙ) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30320 |
GS151..LPGTE..NOB;GS151,JZS151,153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX ﾓｸﾒ |
1 | ||
| 55670-30240 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 55680-89101C0 |
GS151,JZS151,153,155,LS151,UZS15# BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-50022 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-06080 | ||||
| 90541-03078 | ||||
| 90541-05020 | ||||
| 91515-F0620 | ||||
| 93520-54012 | ||||
| 93530-54012 | ||||
| 93560-13010 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
