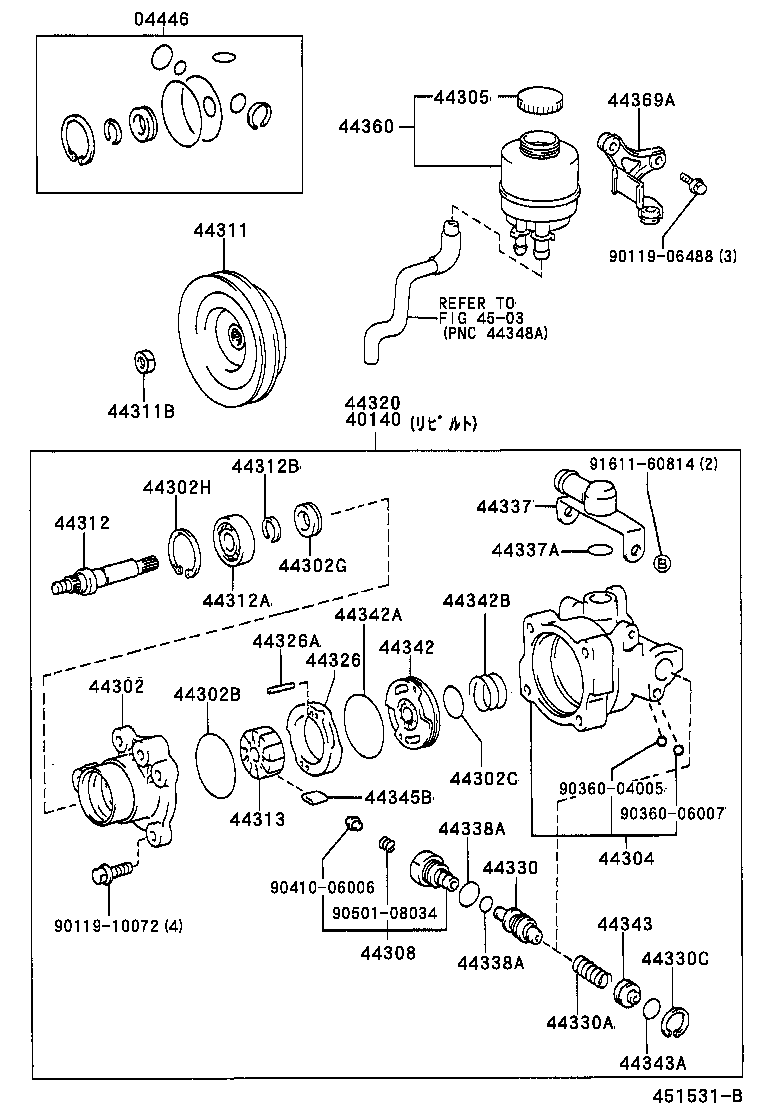

Toyota Crown/crown majesta LS151 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-27020	LS151	08/1995 - 01/1998	1
40140 - PUMP ASSY,VANE REBUILT
40140-22470	LS151 TOYODA KOKI	08/1995 - 07/1996	1
40140-22570	LS151 TOYODA KOKI	07/1996 - 09/1999	1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30110	LS151	08/1995 - 09/1999	1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001	LS151	08/1995 - 01/1998	1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016	LS151	08/1995 - 01/1998	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004	LS151,UZS151,157	08/1995 - 01/1998	1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-51003	LS151,UZS155	08/1995 - 01/1998	1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30051	LS151	08/1995 - 09/1999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020	LS151;UZS151,157..5FC	08/1995 - 09/1999	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-14041	GS151,LS151..LPGTE,TDE	08/1995 - 02/2001	1
44311 - PULLEY, VANE PUMP
44311-30150	LS151	08/1995 - 09/1999	1
44311B - NUT(FOR VANE PUMP PULLEY)
90179-12022	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1998	1
90178-12003	GS151,JZS15#,LS151,UZS15#	08/1998 - 12/2999	1
44312 - SHAFT, VANE PUMP
44312-28010	LS151	08/1995 - 01/1998	1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17011	LS151,UZS155	08/1995 - 01/1998	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005	LS151,UZS151,157	08/1995 - 01/1998	1
44313 - ROTOR, VANE PUMP
44313-22040	GS151,LS151,UZS155 ﾏｰｸ無し,NO.2	08/1995 - 12/2999	1
44313-22060	GS151,LS151,UZS155 ﾏｰｸ 2,NO.2	08/1995 - 12/2999	1
44313-22050	GS151,LS151,UZS155 ﾏｰｸ 1,NO.2	08/1995 - 12/2999	1
44313-22070	GS151,LS151,UZS155 ﾏｰｸ 3,NO.2	08/1995 - 12/2999	1
44313-22080	GS151,LS151,UZS155 ﾏｰｸ 4,NO.2	08/1995 - 12/2999	1
44320 - PUMP ASSY, VANE
44320-22570	LS151	07/1996 - 09/1999	1
44320-22470	LS151	08/1995 - 07/1996	1
44326 - RING, CAM(FOR VANE PUMP)
44325-12040	LS151 ﾏｰｸ 3	08/1995 - 01/1998	1
44325-12010	LS151 ﾏｰｸ無し	08/1995 - 01/1998	1
44325-12020	LS151 ﾏｰｸ 1	08/1995 - 01/1998	1
44325-12050	LS151 ﾏｰｸ 4	08/1995 - 01/1998	1
44325-12030	LS151 ﾏｰｸ 2	08/1995 - 01/1998	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008	LS151 長さ=25,外径=5.0	08/1995 - 09/1999	2
44330 - VALVE ASSY, FLOW CONTROL
44330-12161	LS151 ﾏｰｸ D	08/1995 - 01/1998	1
44330-12141	LS151 ﾏｰｸ B	08/1995 - 01/1998	1
44330-12131	LS151 ﾏｰｸ A	08/1995 - 01/1998	1
44330-12151	LS151 ﾏｰｸ C	08/1995 - 01/1998	1
44330-12181	LS151 ﾏｰｸ F	08/1995 - 01/1998	1
44330-12171	LS151 ﾏｰｸ E	08/1995 - 01/1998	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103	GS151,LS151,UZS151,157	08/1995 - 12/2999	1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700	LS151	08/1995 - 09/1999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-22120	LS151	07/1996 - 09/1999	1
44337-30010	LS151	08/1995 - 07/1996	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013	GS151,LS151..LPGTE,TDE	08/1995 - 02/2001	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001	GS151,LS151..LPGTE,TDE 外径=25.5,内径=22.5	08/1995 - 02/2001	1
96711-19014	GS151,LS151..LPGTE,TDE 外径=17.0,内径=13.0	08/1995 - 01/1998	1
96711-19014	LS151 外径=17.0,内径=13.0	01/1998 - 09/1999	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001	GS151,LS151..LPGTE,TDE 外径=25.5,内径=22.5	08/1995 - 02/2001	1
96711-19014	GS151,LS151..LPGTE,TDE 外径=17.0,内径=13.0	08/1995 - 01/1998	1
96711-19014	LS151 外径=17.0,内径=13.0	01/1998 - 09/1999	1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010	LS151	08/1995 - 09/1999	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002	LS151	08/1995 - 01/1998	1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014	LS151	08/1995 - 01/1998	1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040	LS151	08/1995 - 01/1998	1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014	LS151	08/1995 - 09/1999	1
44345B - PLATE, VANE PUMP
44345-12030	GS151,LS151,UZS15#..4FC,5F 長さ=14.993,NO.2	08/1995 - 12/2999	10
44345-12020	GS151,LS151,UZS15#..4FC,5F 長さ=14.995,NO.2	08/1995 - 12/2999	10
44345-12040	GS151,LS151,UZS15#..4FC,5F 長さ=14.991,NO.2	08/1995 - 12/2999	10
44345-12050	GS151,LS151,UZS15# 長さ=14.989	08/1995 - 12/2999	10
44345-12010	GS151,LS151,UZS15#..4FC,5F 長さ=14.997,NO.2	08/1995 - 12/2999	10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22170	LS151;UZS151,157..5FC	08/1995 - 09/1999	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-22030	LS151	08/1995 - 12/2999	1
Common parts
90119-06488
90119-10072
90360-04005
90360-06007
90410-06006
90501-08034
91611-60814
Linked diagrams
4503

LS151H-ATPQT (1995)

(9508- )LS151
