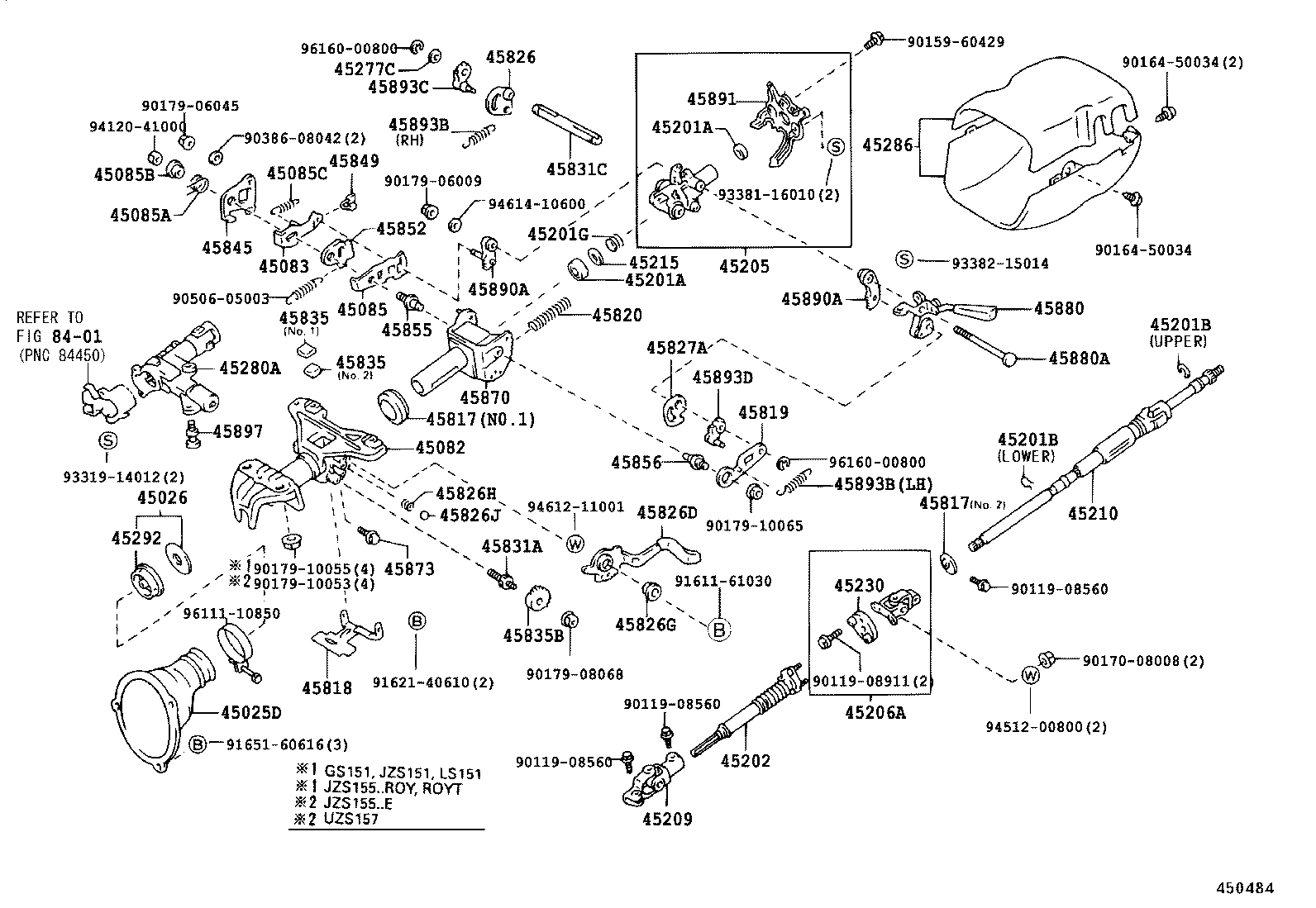

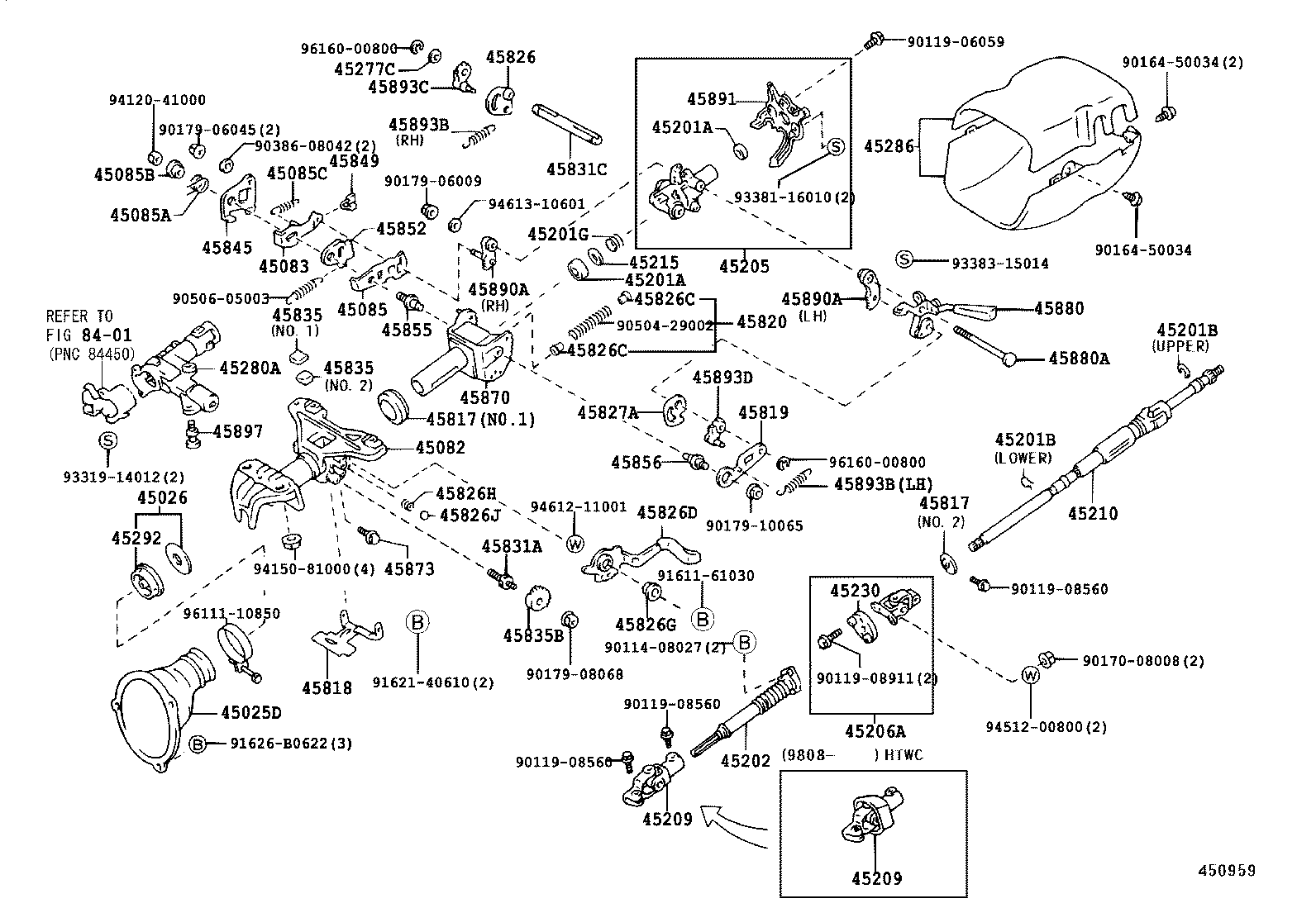

LS151H-ATPQT (1995)
Toyota Crown/Crown Majesta
(9508-9707)E,F,ROY,ROYEX,ROYT,SALEX,SPDLX
ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45025-30270 |
GS151,JZS151,153,155,LS151,UZS15# ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30190 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45082-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45083 - PLATE SUB-ASSY, TILT RELEASE MEMORY | ||||
| 45083-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45083-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085 - PLATE SUB-ASSY, TILT MEMORY, NO.1 | ||||
| 45085-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085A - SPRING, TORSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90508-12087 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90508-12087 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085B - SPACER(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90561-10007 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90561-10007 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085C - SPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90506-06012 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90506-06012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90363-18005 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90363-18005 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-17042 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-17042 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90501-40017 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-30040 |
GS151,JZS151,LS151 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-30310 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45205-30310 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZS155..A,E;JZS151,153,157,LS151,UZS151,157 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45215-12010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-32010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45277C - SPACER(FOR TILT STEERING SUPPORT) | ||||
| 90560-10059 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90560-10059 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22360 |
GS151,JZS15#,LS151,UZS157..ATM..(E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-30992E0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 45286-30992B0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45818 - BRACKET, CONNECTOR | ||||
| 45818-22070 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45818-22070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45819-22060 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-32020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-30130 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826-30130 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826G - COLLAR(FOR STEERING TELESCOPIC LEVER) | ||||
| 90389-10022 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90389-10022 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826H - SPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER) | ||||
| 90501-12014 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90501-12014 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826J - BALL(FOR STEERING TELESCOPIC LEVER) | ||||
| 90360-06001 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90360-06001 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45827-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835B - ATTACHMENT, TELESCOPIC LEVER SERRATION | ||||
| 45835-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45835-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45845 - SUPPORT, TILT MEMORY | ||||
| 45845-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45845-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45849 - RETAINER, TILT ADJUSTER MEMORY SPRING | ||||
| 45849-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45849-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45852 - PLATE, TILT MEMORY, NO.2 | ||||
| 45852-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45852-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45852-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45852-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45852-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45852-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45856-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30270 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-50020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45873-50020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880-30010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90109-06162 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-22090 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-22090 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 90507-10019 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 90507-10019 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-24020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45893-24040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 4 |
1 | ||
| 45893-24030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45893-24010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45893-24050 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 5 |
1 | ||
| 45893-24060 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 6 |
1 | ||
| 45893-24030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45893-24020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45893-24070 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 7 |
1 | ||
| 45893-24050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 5 |
1 | ||
| 45893-24060 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 6 |
1 | ||
| 45893-24010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45893-24040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 4 |
1 | ||
| 45893-24070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 7 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20300 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ E |
1 | ||
| 45893-20290 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ D |
1 | ||
| 45893-20260 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ A |
1 | ||
| 45893-20280 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ C |
1 | ||
| 45893-20280 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ C |
1 | ||
| 45893-20310 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ F |
1 | ||
| 45893-20270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ B |
1 | ||
| 45893-20300 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ E |
1 | ||
| 45893-20290 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ D |
1 | ||
| 45893-20260 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ A |
1 | ||
| 45893-20270 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ B |
1 | ||
| 45893-20320 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ G |
1 | ||
| 45893-20310 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ F |
1 | ||
| 45893-20320 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ G |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90159-60429 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-06009 | ||||
| 90179-06045 | ||||
| 90179-08068 | ||||
| 90179-10053 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 90386-08042 | ||||
| 90506-05003 | ||||
| 91611-61030 | ||||
| 91621-40610 | ||||
| 91651-60616 | ||||
| 93319-14012 | ||||
| 93381-16010 | ||||
| 93382-15014 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94612-11001 | ||||
| 94614-10600 | ||||
| 96111-10850 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

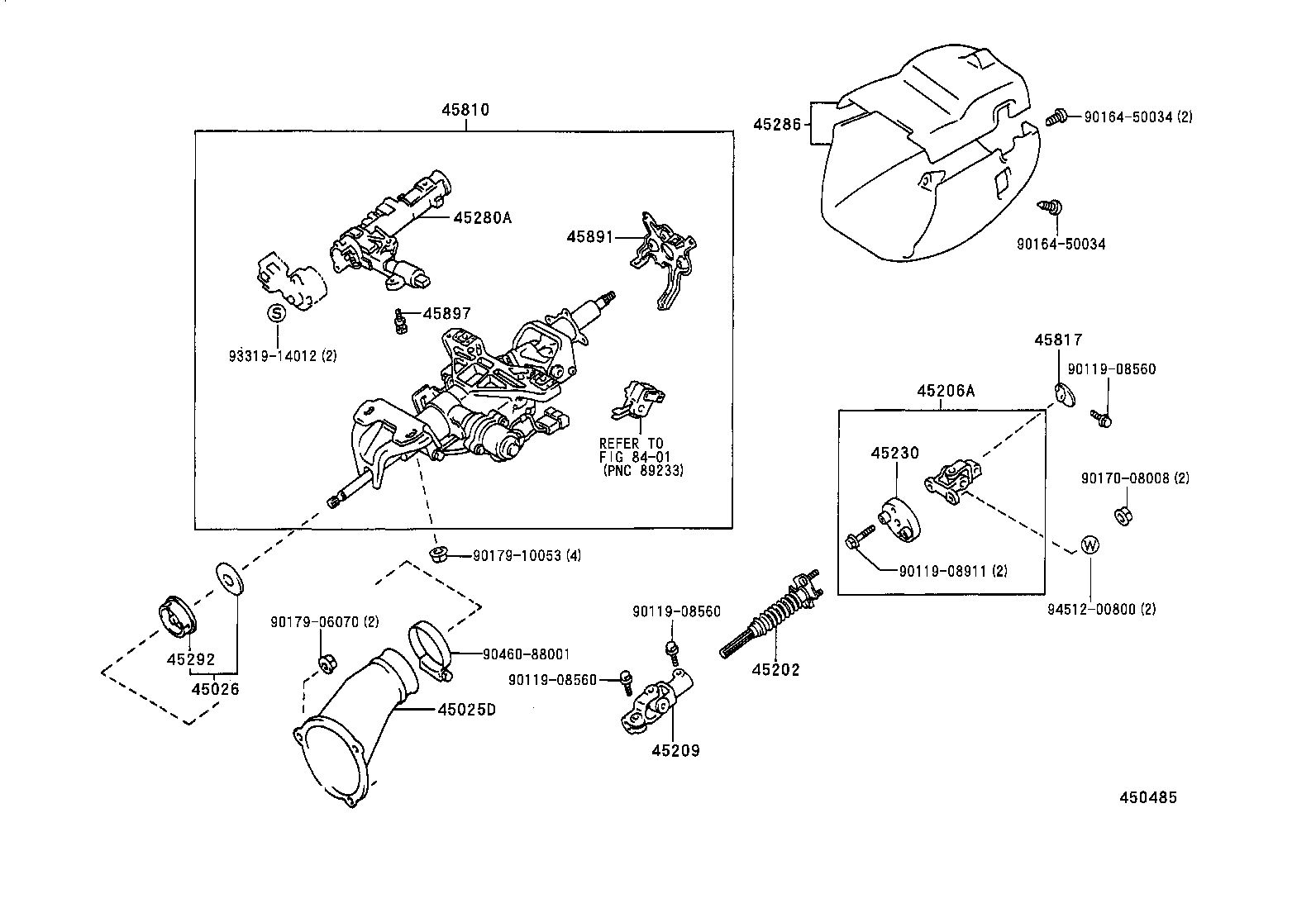

(9508-9707)A,C,E,F
ﾃﾞﾝﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45025-30270 |
GS151,JZS151,153,155,LS151,UZS15# ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-30040 |
GS151,JZS151,LS151 |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZS155..A,E;JZS151,153,157,LS151,UZS151,157 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-32010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22360 |
GS151,JZS15#,LS151,UZS157..ATM..(E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-30992E0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 45286-30992B0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90179-10053 | ||||
| 90460-88001 | ||||
| 93319-14012 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9707- )ROY,ROYEX,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45025-30270 |
GS151,JZS151,153,155,LS151,UZS15# ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30190 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45082-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45083 - PLATE SUB-ASSY, TILT RELEASE MEMORY | ||||
| 45083-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45083-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085 - PLATE SUB-ASSY, TILT MEMORY, NO.1 | ||||
| 45085-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085A - SPRING, TORSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90508-12087 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90508-12087 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085B - SPACER(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90561-10007 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90561-10007 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45085C - SPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1) | ||||
| 90506-06012 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90506-06012 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90363-18005 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90363-18005 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-17042 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT 厚さ=2.00,内径=15.3 |
1 | ||
| 90520-16002 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=2.00,内径=15.3,下側 |
1 | ||
| 90520-17042 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX 厚さ=1.20,上側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90501-40017 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||

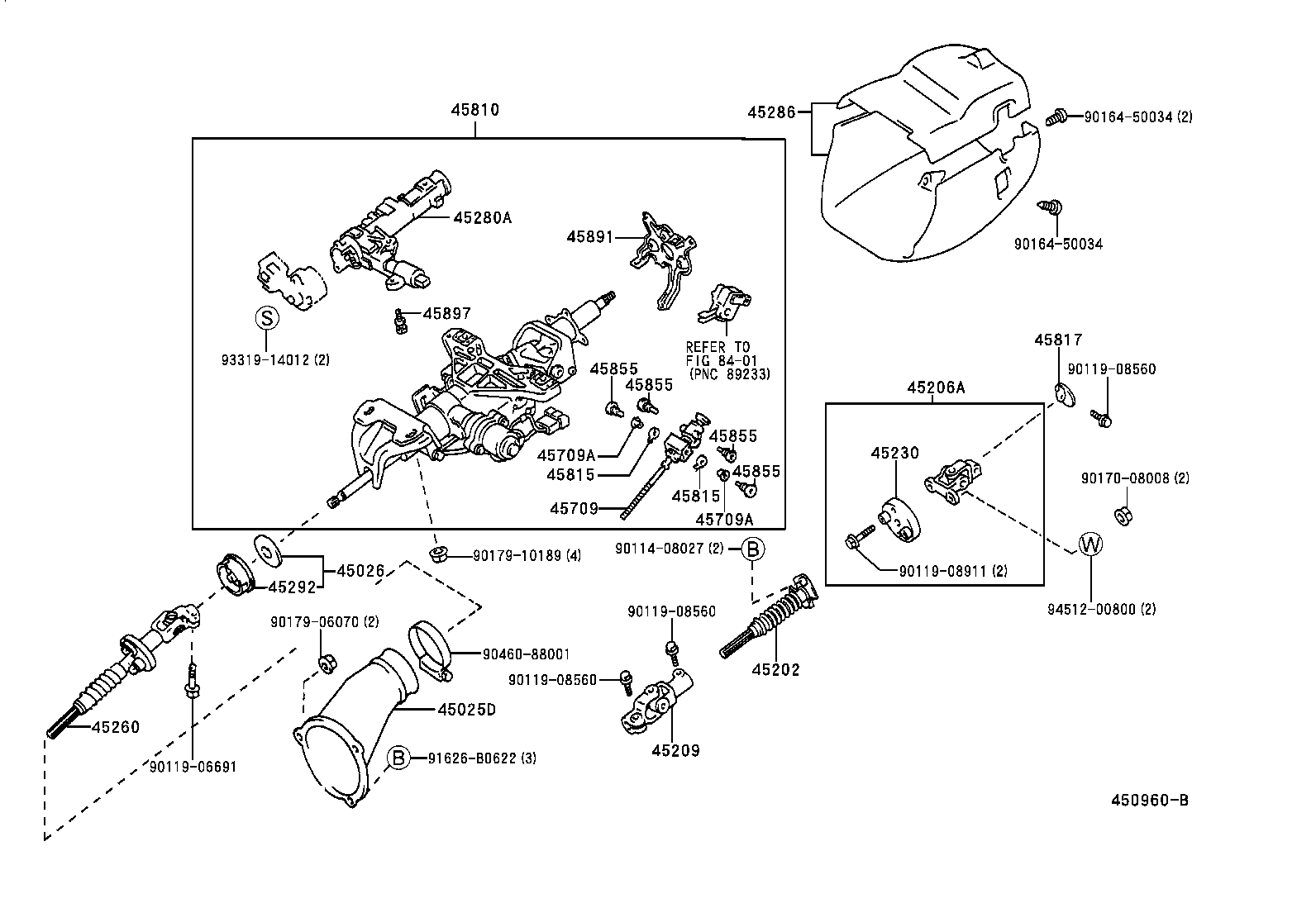

| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-30040 |
GS151,JZS151,LS151 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-30310 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45205-30310 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZS155..A,E;JZS151,153,157,LS151,UZS151,157 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZS155..A,E;JZS151,153,157,LS151,UZS151,157 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45215-12010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-32010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45277C - SPACER(FOR TILT STEERING SUPPORT) | ||||
| 90560-10059 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90560-10059 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22360 |
GS151,JZS15#,LS151,UZS157..ATM..(E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-30992E0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 45286-30992B0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45818 - BRACKET, CONNECTOR | ||||
| 45818-22070 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45818-22070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22060 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45819-22060 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-32020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06043 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06043 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
2 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-30130 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826-30130 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826G - COLLAR(FOR STEERING TELESCOPIC LEVER) | ||||
| 90389-10022 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90389-10022 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826H - SPRING, COMPRESSION(FOR STEERING TELESCOPIC LEVER) | ||||
| 90501-12014 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90501-12014 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45826J - BALL(FOR STEERING TELESCOPIC LEVER) | ||||
| 90360-06001 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90360-06001 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45827-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45831-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45835-22040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45835B - ATTACHMENT, TELESCOPIC LEVER SERRATION | ||||
| 45835-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45835-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45845 - SUPPORT, TILT MEMORY | ||||
| 45845-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45845-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45849 - RETAINER, TILT ADJUSTER MEMORY SPRING | ||||
| 45849-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45849-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45852 - PLATE, TILT MEMORY, NO.2 | ||||
| 45852-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45852-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45852-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45852-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45852-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45852-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45856-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30270 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-50020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45873-50020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880-30010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06162 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 90109-06162 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-22090 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-22090 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45890-20110 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 90507-10019 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 左側 |
1 | ||
| 90507-10019 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 右側 |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-24020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45893-24040 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 4 |
1 | ||
| 45893-24030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45893-24010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45893-24050 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 5 |
1 | ||
| 45893-24060 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 6 |
1 | ||
| 45893-24030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 3 |
1 | ||
| 45893-24020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 2 |
1 | ||
| 45893-24070 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 7 |
1 | ||
| 45893-24050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 5 |
1 | ||
| 45893-24060 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 6 |
1 | ||
| 45893-24010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 1 |
1 | ||
| 45893-24040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 4 |
1 | ||
| 45893-24070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ 7 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20300 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ E |
1 | ||
| 45893-20290 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ D |
1 | ||
| 45893-20260 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ A |
1 | ||
| 45893-20280 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ C |
1 | ||
| 45893-20280 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ C |
1 | ||
| 45893-20310 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ F |
1 | ||
| 45893-20270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ B |
1 | ||
| 45893-20300 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ E |
1 | ||
| 45893-20290 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ D |
1 | ||
| 45893-20260 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ A |
1 | ||
| 45893-20270 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ B |
1 | ||
| 45893-20320 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ G |
1 | ||
| 45893-20310 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ F |
1 | ||
| 45893-20320 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX ﾏｰｸ G |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| Common parts | ||||
| 90114-08027 | ||||
| 90119-06059 | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-06009 | ||||
| 90179-06045 | ||||
| 90179-08068 | ||||
| 90179-10065 | ||||
| 90386-08042 | ||||
| 90504-29002 | ||||
| 90506-05003 | ||||
| 91611-61030 | ||||
| 91621-40610 | ||||
| 91626-B0622 | ||||
| 93319-14012 | ||||
| 93381-16010 | ||||
| 93383-15014 | ||||
| 94120-41000 | ||||
| 94150-81000 | ||||
| 94512-00800 | ||||
| 94612-11001 | ||||
| 94613-10601 | ||||
| 96111-10850 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9707- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30270 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45025-30270 |
GS151,JZS151,153,155,LS151,UZS15# ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-30040 |
GS151,JZS151,LS151 |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZS155..A,E;JZS151,153,157,LS151,UZS151,157 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-32010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22360 |
GS151,JZS15#,LS151,UZS157..ATM..(E,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-30992E0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
1 | ||
| 45286-30992B0 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX DK.BLUE GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-22030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.2 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45817-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX NO.1 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-22020 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.989−9.998 |
1 | ||
| 45855-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX 外径=9.998−10.007 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-30030 |
GS151,JZS15#,LS151,UZS157..E,F,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| Common parts | ||||
| 90114-08027 | ||||
| 90119-06691 | ||||
| 90119-08560 | ||||
| 90119-08911 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90179-10189 | ||||
| 90460-88001 | ||||
| 91626-B0622 | ||||
| 93319-14012 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
