LS151H-ATPQT (1995)
Toyota Crown/Crown Majesta
Production
Aug 1995
-
Sep 1999
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508-9909)2LTE

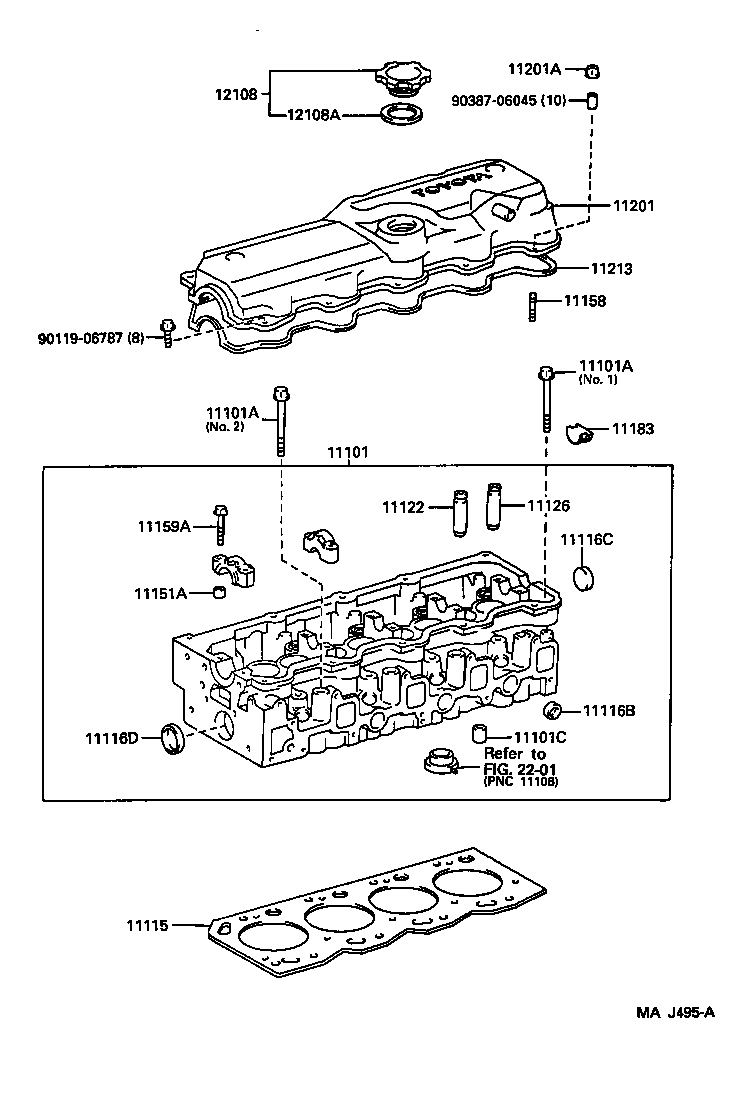

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-54121 |
2LTE..LS151 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02080 |
2LTE..LS151 NO.1 |
14 | ||
| 90910-02081 |
2LTE..LS151 NO.2 |
4 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02080 |
2LTE..LS151 NO.1 |
14 | ||
| 90910-02081 |
2LTE..LS151 NO.2 |
4 | ||
| 11101C - TUBE(FOR CYLINDER HEAD) | ||||
| 90440-15003 |
2LTE..LS151 |
4 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-54084F0 |
2LTE..LS151 MARK F |
1 | ||
| 11115-54084B0 |
2LTE..LS151 MARK B |
1 | ||
| 11115-54084D0 |
2LTE..LS151 MARK D |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
2LTE..LS151 |
7 | ||
| 96411-42500 |
2LTE..LS151 |
7 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2LTE..LS151 |
1 | ||
| 96411-43000 |
2LTE..LS151 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-64500 |
2LTE..LS151 |
2 | ||
| 96411-44500 |
2LTE..LS151 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-54020 |
2LTE..LS151 O/S 0.05 |
4 | ||
| 11122-54020 |
2LTE..LS151 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54020 |
2LTE..LS151 O/S 0.05 |
4 | ||
| 11122-54020 |
2LTE..LS151 STD |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
2LTE..LS151 長さ=8,外径=11 |
7 | ||
| 90253-11021 |
2LTE..LS151..HT 長さ=8,外径=11 |
10 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-80616 |
2LTE..LS151 ﾈｼﾞ部長さ=9 & 9,長さ=25 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-08166 |
2LTE..LS151 |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-54020 |
2LTE..LS151 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-54041 |
2LTE..LS151 |
1 | ||
| 11210-54042 |
2LTE..LS151 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-06319 |
2LTE..LS151 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-54050 |
2LTE..LS151 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70020 |
2LTE..LS151 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-70010 |
2LTE..LS151 |
2 | ||
| 12195-70010 |
2LTE..LS151 |
1 | ||
| Common parts | ||||
| 90119-06787 | ||||
| 90387-06045 | ||||
| Linked diagrams | ||||
| 2201 | ||||
