LS151H-AEPQT (1995)
Toyota Crown/Crown Majesta

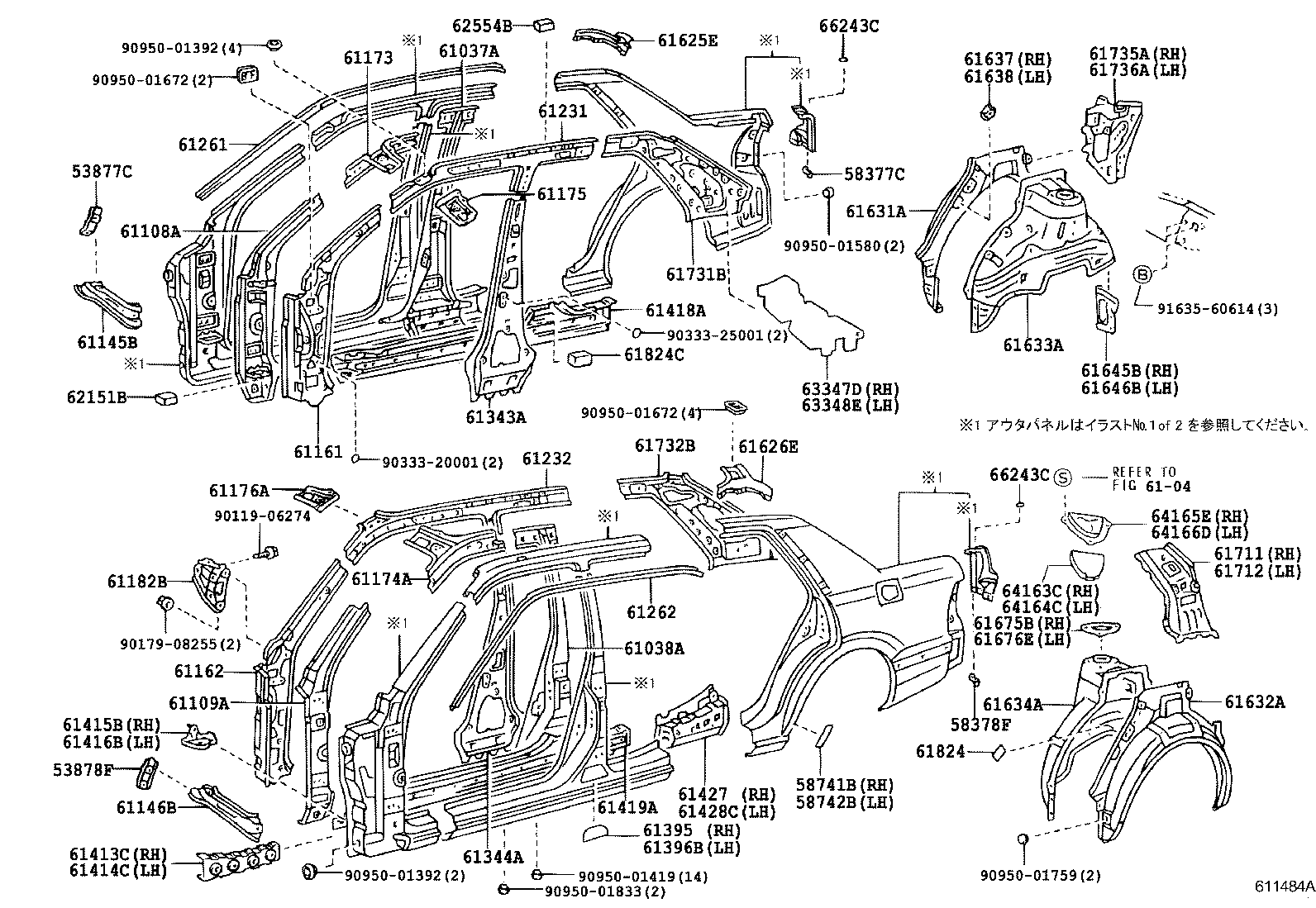

ILLUST NO. 2 OF 2(9508-9707)A,C,E,F
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61037-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61109-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30240 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61161-30270 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61162-30260 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61174-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61231-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61232-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343-30160 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30170 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344-30190 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90159-45005 | ||||
| 90159-60507 | ||||
| 90179-08255 | ||||
| 90269-05010 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90480-07006 | ||||
| 90480-22022 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01672 | ||||
| 90950-01864 | ||||
| Linked diagrams | ||||
| 7503 | ||||

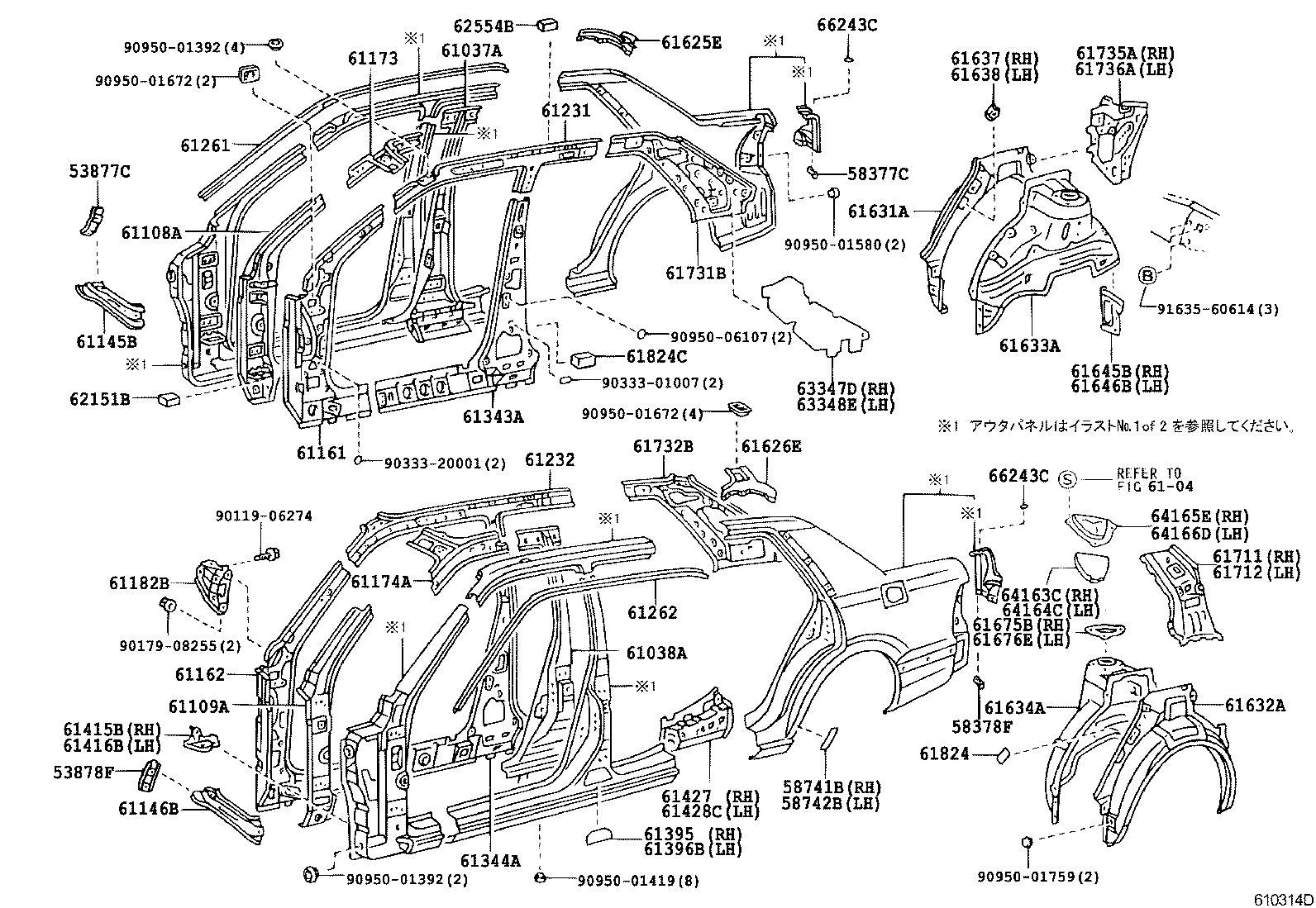

ILLUST NO. 2 OF 2(9512-9707)SED
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53877C - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 53878F - BRACKET, FRONT FENDER LINER, LH | ||||
| 53877-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 58377C - RETAINER, LOWER BACK TRIM, RH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58378F - RETAINER, LOWER BACK TRIM, LH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61037-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61109-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30240 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61161-30270 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61162-30260 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61174-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61231-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61232-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343-30160 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30170 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344-30190 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
8 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 64163C - COVER, BACK CORNER, RH | ||||
| 64163-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64164C - COVER, BACK CORNER, LH | ||||
| 64164-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64165E - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64166D - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 90950-06123 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243-20010 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 90950-06123 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243-20010 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90179-08255 | ||||
| 90333-01007 | ||||
| 90333-20001 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01580 | ||||
| 90950-01672 | ||||
| 90950-01759 | ||||
| 90950-06107 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 6104 | ||||
ILLUST NO. 2 OF 2(9707- )A,C,E,F
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61037-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61109-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30240 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61161-30270 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61162-30260 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61174-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-30070 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61231-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61232-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343-30160 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30170 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344-30190 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90159-45005 | ||||
| 90159-60507 | ||||
| 90179-08255 | ||||
| 90269-05010 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90480-07006 | ||||
| 90480-22022 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01672 | ||||
| 90950-01864 | ||||
| 90950-06110 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(9707- )SED
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53877C - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 53878F - BRACKET, FRONT FENDER LINER, LH | ||||
| 53877-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 58377C - RETAINER, LOWER BACK TRIM, RH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 58378F - RETAINER, LOWER BACK TRIM, LH | ||||
| 58377-22020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61037-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-30061 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61038-30060 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61108-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61109-30081 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30240 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61161-30270 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30230 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61162-30260 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61173-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-30120 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61174-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-30070 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61231-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30320 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61232-30340 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-30210 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61343-30160 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30170 |
GS151,JZS15#,LS151..SED |
1 | ||
| 61344-30190 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61395-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30070 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-30150 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-30900 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61638 - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61637-30110 |
JZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-30180 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 61825-22050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
8 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30060 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-30070 |
GS151,JZS15#,LS151,UZS15# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 62554-30010 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 64163C - COVER, BACK CORNER, RH | ||||
| 64163-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64164C - COVER, BACK CORNER, LH | ||||
| 64164-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64165E - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 64166D - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-30040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 90950-06123 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243-20010 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 90950-06123 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| 66243-20010 |
GS151,JZS151,153,155,LS151..SED |
2 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90179-08255 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01392 | ||||
| 90950-01419 | ||||
| 90950-01580 | ||||
| 90950-01672 | ||||
| 90950-01759 | ||||
| 90950-01833 | ||||
| 91635-60614 | ||||
| Linked diagrams | ||||
| 6104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
