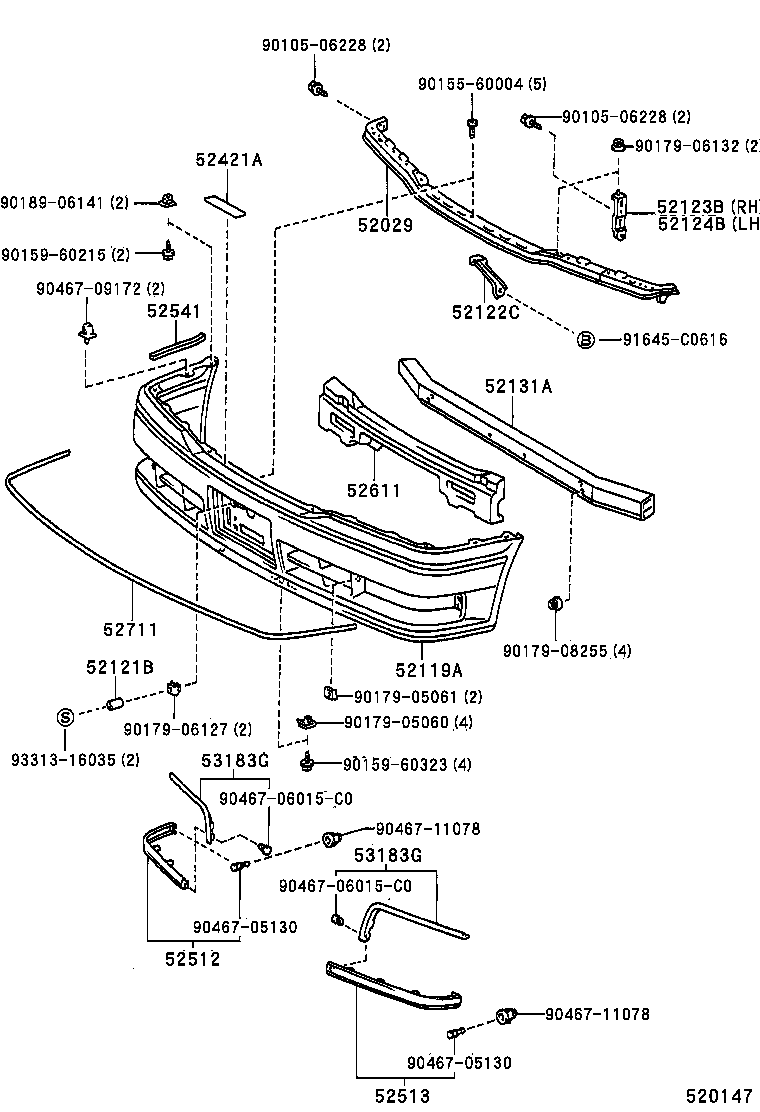

LS151H-AEPQT (1995)
Toyota Crown/Crown Majesta
(9508-9909)4FC..A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-30110 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30290B0 |
GS151,JZS151,153,155,LS151..SED..WIB SILVER ME,199 |
1 | ||
| 52119-30290A2 |
JZS151,153..SED..ROY;GS151,JZS155,LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52119-30290H0 |
GS151,JZS15#,LS151..SED..WIB DK.TURQUOISE.MC,742 |
1 | ||
| 52119-30290B1 |
GS151,JZS151,153,155,LS151..SED..WIB DK.GRAY ME.,1A8 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 90560-11020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52123-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52124-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30140 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52131-30170 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-30090 |
JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED |
2 | ||
| 52421-30090 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30210 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52611-30160 |
GS151,JZS15#,LS151..SED..WIB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30180 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90155-60004 | ||||
| 90159-60215 | ||||
| 90159-60323 | ||||
| 90179-05060 | ||||
| 90179-05061 | ||||
| 90179-06127 | ||||
| 90179-06132 | ||||
| 90179-08255 | ||||
| 90189-06141 | ||||
| 90467-05130 | ||||
| 90467-06015C0 | ||||
| 90467-09172 | ||||
| 90467-11078 | ||||
| 91645-C0616 | ||||
| 93313-16035 | ||||

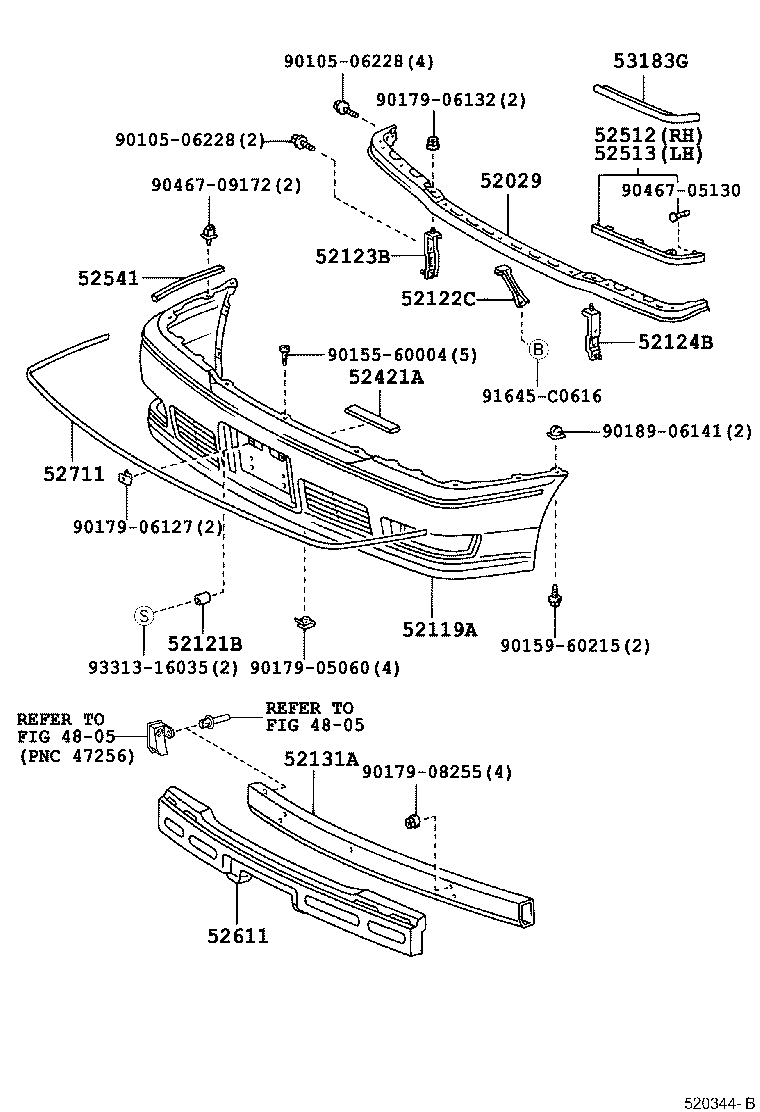

(9707- )A,C,E,F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-30110 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30290B0 |
GS151,JZS151,153,155,LS151..SED..WIB SILVER ME,199 |
1 | ||
| 52119-30290A2 |
JZS151,153..SED..ROY;GS151,JZS155,LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52119-30290H0 |
GS151,JZS15#,LS151..SED..WIB DK.TURQUOISE.MC,742 |
1 | ||
| 52119-30290B1 |
GS151,JZS151,153,155,LS151..SED..WIB DK.GRAY ME.,1A8 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 90560-11020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52123-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52124-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30140 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52131-30170 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-30090 |
JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED |
2 | ||
| 52421-30090 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30210 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52611-30160 |
GS151,JZS15#,LS151..SED..WIB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30180 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90155-60004 | ||||
| 90159-60215 | ||||
| 90179-05060 | ||||
| 90179-06127 | ||||
| 90179-06132 | ||||
| 90179-08255 | ||||
| 90189-06141 | ||||
| 90467-05130 | ||||
| 90467-09172 | ||||
| 91645-C0616 | ||||
| 93313-16035 | ||||
| Linked diagrams | ||||
| 4805 | ||||

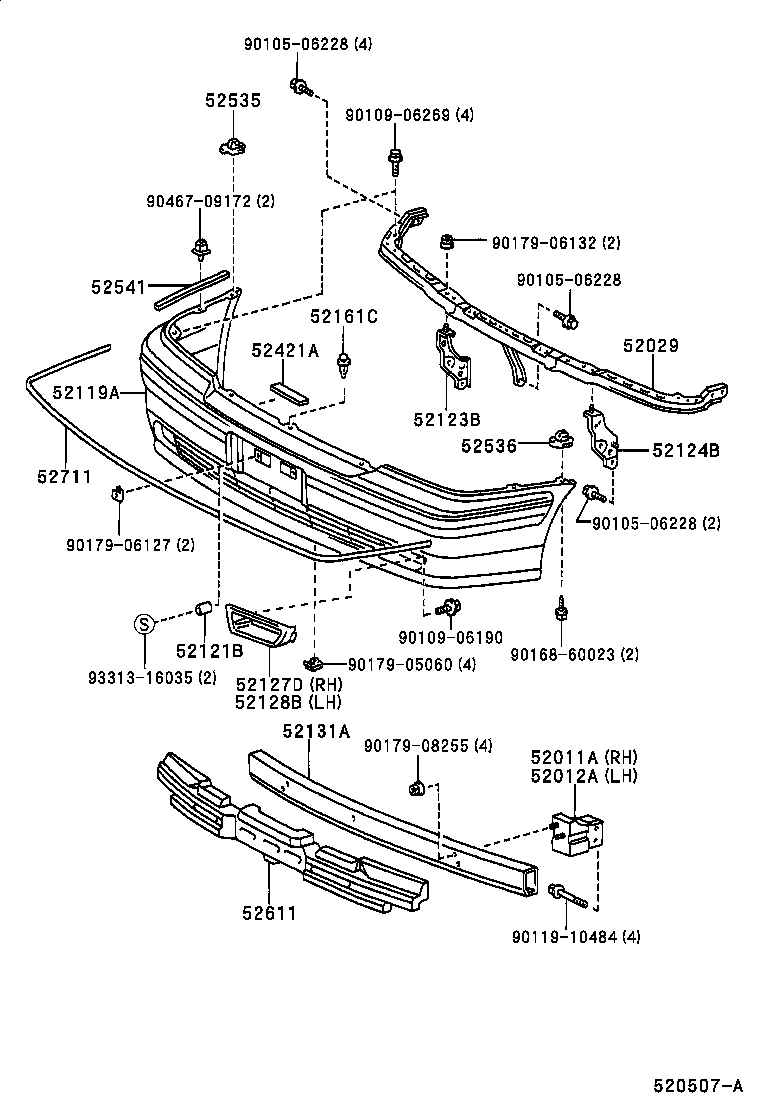

(9707- )SED..WIB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-30220 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52011-30240 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-30190 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52012-30250 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-30110 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30290B0 |
GS151,JZS151,153,155,LS151..SED..WIB SILVER ME,199 |
1 | ||
| 52119-30290A2 |
JZS151,153..SED..ROY;GS151,JZS155,LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52119-30290H0 |
GS151,JZS15#,LS151..SED..WIB DK.TURQUOISE.MC,742 |
1 | ||
| 52119-30290B1 |
GS151,JZS151,153,155,LS151..SED..WIB DK.GRAY ME.,1A8 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 90560-11020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52123-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52124-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-30100A0 |
GS151..5F;LS151..SED SUPER WHITE,040 |
1 | ||
| 52127-30100C0 |
GS151..5F;LS151..SED BLACK,202 |
1 | ||
| 52127-30100B1 |
GS151..5F;LS151..SED SILVER,199 |
1 | ||
| 52127-30100J0 |
GS151..5F;LS151..SED DK.BLUE,8L4 |
1 | ||
| 52127-30100A1 |
LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52127-30100B0 |
GS151..5F;LS151..SED DK.GRAY,1A8 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-30060A0 |
GS151..5F;LS151..SED SUPER WHITE,040 |
1 | ||
| 52128-30060A1 |
LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52128-30060B1 |
GS151..5F;LS151..SED SILVER,199 |
1 | ||
| 52128-30060B0 |
GS151..5F;LS151..SED DK.GRAY,1A8 |
1 | ||
| 52128-30060C0 |
GS151..5F;LS151..SED BLACK,202 |
1 | ||
| 52128-30060J0 |
GS151..5F;LS151..SED DK.BLUE,8L4 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30140 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52131-30170 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-30090 |
JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED |
2 | ||
| 52421-30090 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30210 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52611-30160 |
GS151,JZS15#,LS151..SED..WIB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30180 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90109-06190 | ||||
| 90109-06269 | ||||
| 90119-10484 | ||||
| 90168-60023 | ||||
| 90179-05060 | ||||
| 90179-06127 | ||||
| 90179-06132 | ||||
| 90179-08255 | ||||
| 90467-09172 | ||||
| 93313-16035 | ||||

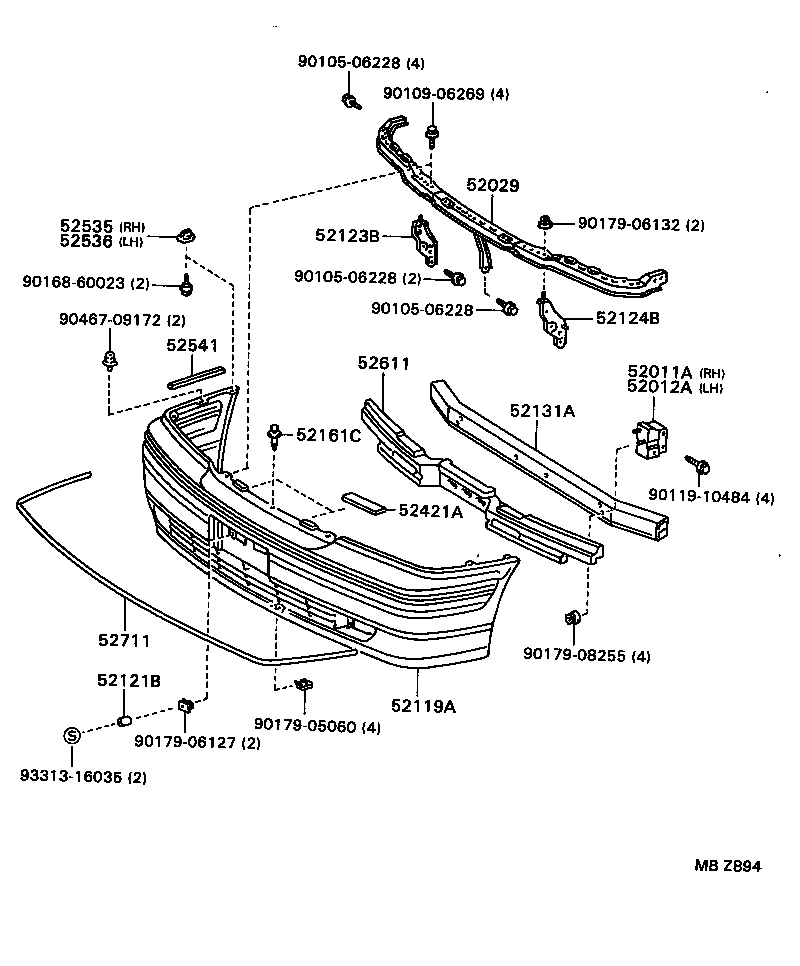

(9512-9707)ROY,ROYEX,ROYG,ROYT,SALEX..WIB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-30220 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52011-30240 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-30190 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52012-30250 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-30110 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30290B0 |
GS151,JZS151,153,155,LS151..SED..WIB SILVER ME,199 |
1 | ||
| 52119-30290A2 |
JZS151,153..SED..ROY;GS151,JZS155,LS151..SED..WIB SU.WHITE PM,051 |
1 | ||
| 52119-30290H0 |
GS151,JZS15#,LS151..SED..WIB DK.TURQUOISE.MC,742 |
1 | ||
| 52119-30290B1 |
GS151,JZS151,153,155,LS151..SED..WIB DK.GRAY ME.,1A8 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 90560-11020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52123-30100 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52124-30080 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30140 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52131-30170 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-30090 |
JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED |
2 | ||
| 52421-30090 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30210 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| 52611-30160 |
GS151,JZS15#,LS151..SED..WIB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30180 |
GS151,JZS151,153,155,LS151..SED..WIB |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90109-06269 | ||||
| 90119-10484 | ||||
| 90168-60023 | ||||
| 90179-05060 | ||||
| 90179-06127 | ||||
| 90179-06132 | ||||
| 90179-08255 | ||||
| 90467-09172 | ||||
| 93313-16035 | ||||
