LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )NOB

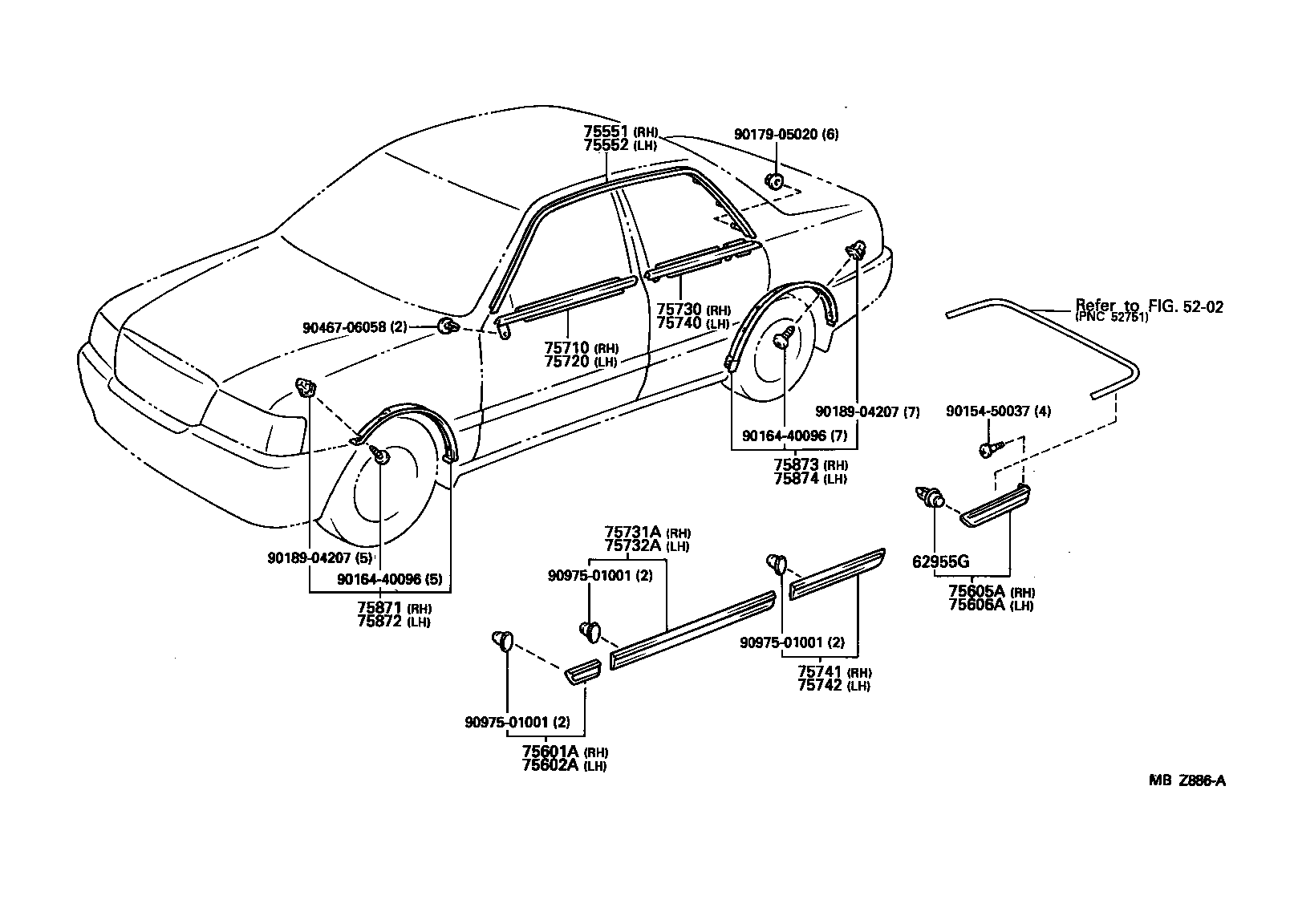

Click highlighted areas on diagram

diagram 5202 62955G 75551 75552 75601A 75602A 75605A 75606A 75710 75720 75730 75731A 75732A 75740 75741 75742 75871 75872 75873 75874 9015450037 9016440096 9016440096 9017905020 9018904207 9018904207 9046706058 9097501001 9097501001 9097501001
Part # Description Qty Price
62955G - RETAINER, QUARTER VENT LOUVER
62955-20030

GS151,JZS151,153,155,LS151..SED

 2
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-30210

GS151,JZS151,153,155,LS151..SED

 1
75505-30220

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-30210

GS151,JZS151,153,155,LS151..SED

 1
75506-30220

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75601-30100

GS151,LS151..NOB

 1
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75602-30090

GS151,LS151..NOB

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-30440

GS151,JZS151,153,155,LS151..SED

 1
75710-30450

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-30440

GS151,JZS151,153,155,LS151..SED

 1
75720-30450

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-30320

GS151,JZS151,153,155,LS151..SED

 1
75730-30330

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-30370

GS151,JZS151,153,155,LS151..SED

 1
75740-30380

GS151,JZS151,153,155,LS151..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-39285

GS151,LS151..NOB

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-39285

GS151,LS151..NOB

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-39335

GS151,LS151..NOB

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-39335

GS151,LS151..NOB

 1
Common parts
90154-50037
90164-40096
90179-05020
90189-04207
90467-06058
90975-01001
Linked diagrams
5202
