LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )SED

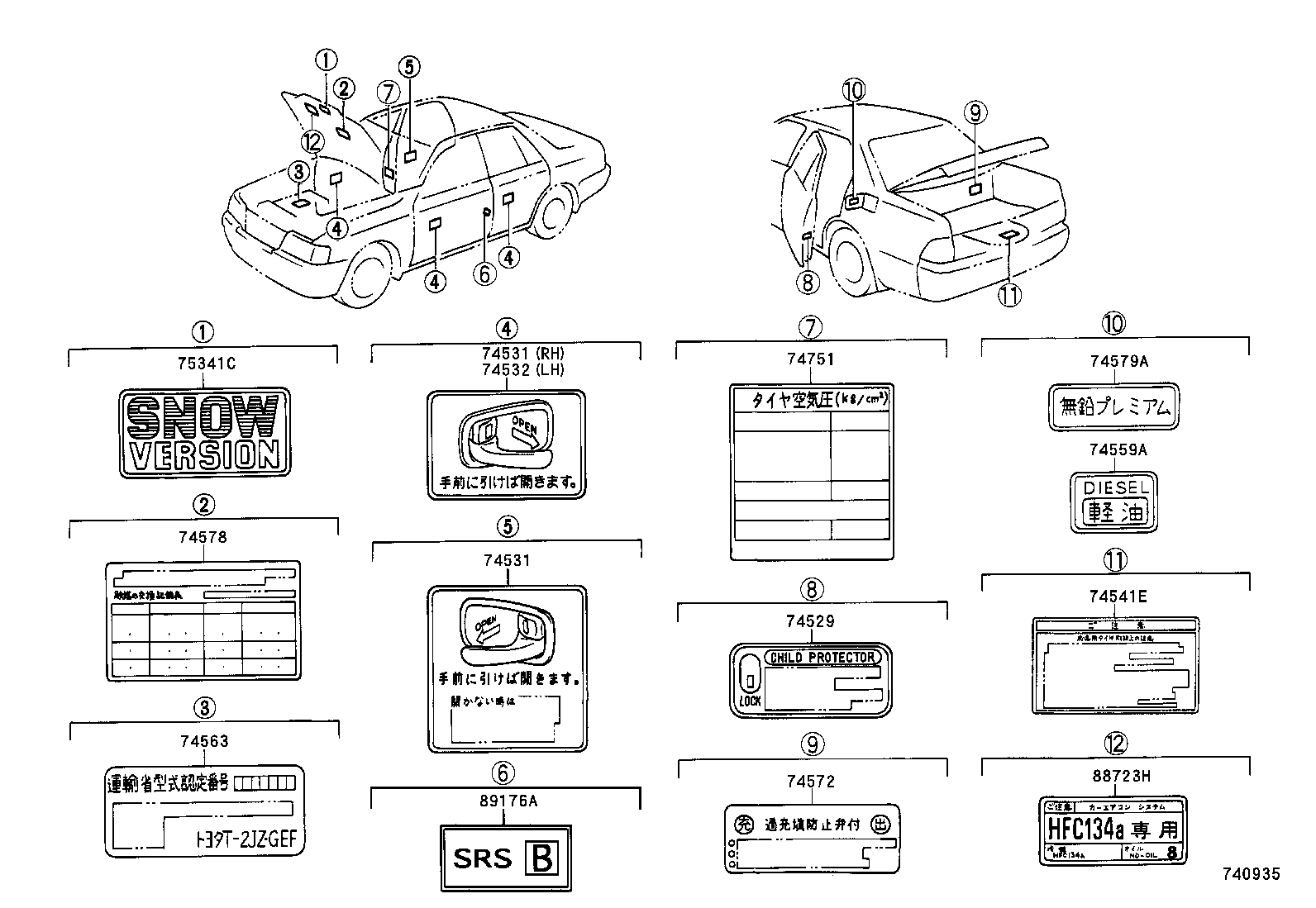

Click highlighted areas on diagram

diagram 74529 74531 74531 74532 74541E 74559A 74563 74572 74578 74579A 74751 75341C 88723H 89176A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-40010

GS151,JZS15#,LS151,UZS151,157..HTWC,TDE,TWC

 1
42668-40010

GS151,JZS15#,LS151,UZS15#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LS151

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-30380

GS151,LS151..SED

 1
75341C - PLATE, HOOD NAME
75341-20060

JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155

ﾕｷｸﾞﾆ ｼﾖｳ

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-50140

GS151,JZS15#,LS151,UZS15#

 1
