LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )SED

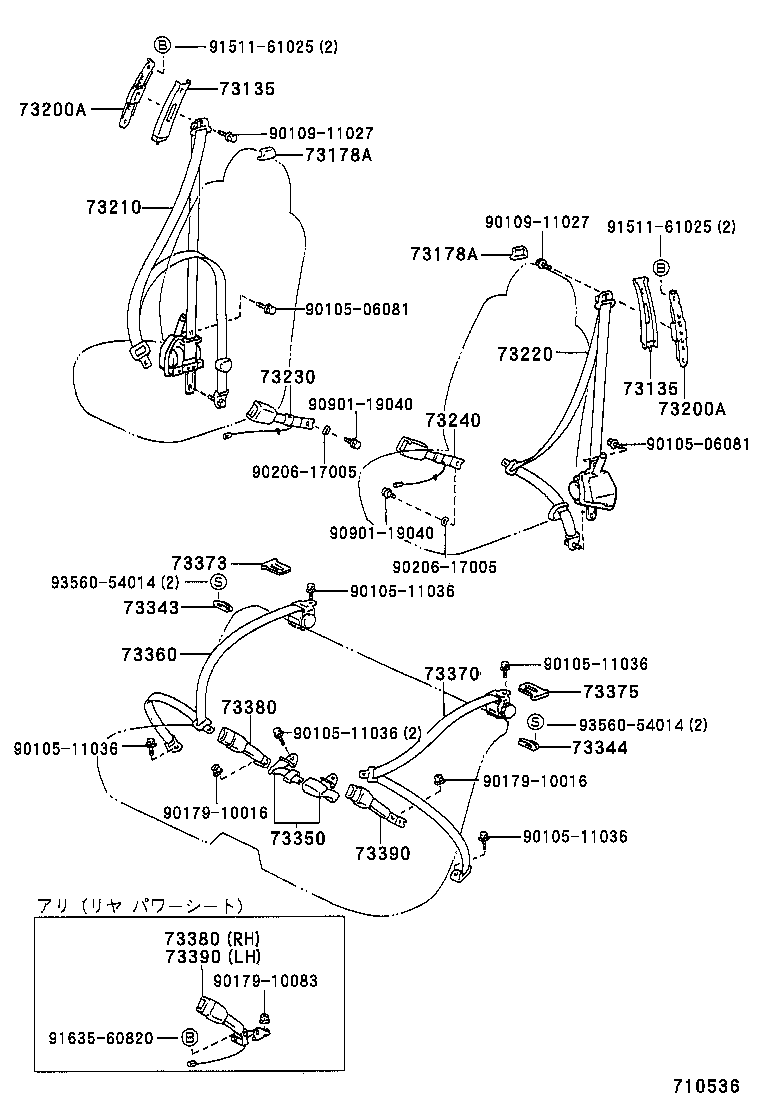

Click highlighted areas on diagram

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 73220 73230 73240 73343 73344 73350 73360 73370 73373 73375 73380 73380 73390 73390 9010506081 9010506081 9010511036 9010511036 9010511036 9010511036 9010511036 9010911027 9010911027 9017910016 9017910016 9017910083 9020617005 9020617005 9090119040 9090119040 9151161025 9151161025 9163560820 9356054014 9356054014
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B0

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

LT.BLUISH GRAY,TRIM1#

 2
73135-30030E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B0

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

LT.BLUISH GRAY,TRIM1#

 2
73135-30030E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73178-12040B1

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

LT.BLUISH GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73178-12040B1

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

LT.BLUISH GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B2

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

BLUE GRAY,TRIM1#

 2
73200-22070E1

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B2

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

BLUE GRAY,TRIM1#

 2
73200-22070E1

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30670B0

GS151,JZS15#,LS151..SED

BLUISH GRAY,TRIM1#

 1
73210-30670E0

GS151,JZS15#,LS151..SED

DK. ROSE,TRIM4#

 1
73210-30671E0

GS151,JZS15#,LS151..SED

DK. ROSE,TRIM4#

 1
73210-30671B0

GS151,JZS15#,LS151..SED

BLUISH GRAY,TRIM1#

 1
73210-30760E1

GS151,JZS15#,LS151..SED

DK. ROSE,TRIM4#

 1
73210-30760B1

GS151,JZS15#,LS151..SED

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30621E0

GS151,JZS15#,LS151..SED

DK. ROSE,TRIM4#

 1
73220-30620B0

GS151,JZS15#,LS151..SED

BLUISH GRAY,TRIM1#

 1
73220-30621B0

GS151,JZS15#,LS151..SED

BLUISH GRAY,TRIM1#

 1
73220-30620E0

GS151,JZS15#,LS151..SED

DK. ROSE,TRIM4#

 1
73220-30710E1

GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC)

DK. ROSE,TRIM4#

 1
73220-30710B1

GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC)

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30700B0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

ｱﾘ(ｳﾝﾃﾝｾｷ ﾏﾆﾕｱﾙｼ-ﾄ ),DK.BLUE GRAY,TRIM1#

 1
73230-30700E0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

ｱﾘ(ｳﾝﾃﾝｾｷ ﾏﾆﾕｱﾙｼ-ﾄ ),ANTELOPE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-30400B0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

DK.BLUE GRAY,TRIM1#

 1
73240-30400E0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

ANTELOPE,TRIM4#

 1
73240-30470B0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

DK.BLUE GRAY,TRIM1#

 1
73240-30470E0

GS151,JZS15#,LS151..SED..(ROY,SALEX,SPDLX)

ANTELOPE,TRIM4#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-50020B0

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

BLUE GRAY,TRIM1#

 1
73343-50020E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-50010E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 1
73344-50010B0

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX

BLUE GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-30190B0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

BLUISH GRAY,TRIM1#

 1
73350-30190E0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK. ROSE,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-30270E0

LS151..ROY,SPDLX;GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

DK. ROSE,TRIM4#

 1
73360-30320B0

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)

BLUISH GRAY,TRIM1#

 1
73360-30270B0

LS151..ROY,SPDLX;GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

BLUISH GRAY,TRIM1#

 1
73360-30320E0

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)

DK. ROSE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-30270E0

LS151..ROY,SPDLX;GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

DK. ROSE,TRIM4#

 1
73360-30270B0

LS151..ROY,SPDLX;GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

BLUISH GRAY,TRIM1#

 1
73360-30320B0

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)

BLUISH GRAY,TRIM1#

 1
73360-30320E0

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)

DK. ROSE,TRIM4#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-30020B1

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG

BLUE GRAY,TRIM1#

 1
73373-30020E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-30010B1

GS151,JZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYEX,ROYG

BLUE GRAY,TRIM1#

 1
73375-30010E0

GS151,JZS15#,LS151,UZS15#

QUARTZ,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-30310E0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310B0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310E0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310E1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

ORCHID BROWN,TRIM4#

 1
73380-30310B1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-30310E0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310B0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310E0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310E1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

ORCHID BROWN,TRIM4#

 1
73380-30310B1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-30310E0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310B0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310E0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310E1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

ORCHID BROWN,TRIM4#

 1
73380-30310B1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-30310E0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS153;LS151..HT..ROY;JZS151,LS151..SALEX,SPDLX;JZS151,155..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310B0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.BLUEGRAY,TRIM1#

 1
73380-30310E0

GS151;JZS151,153,LS151..SALEX,SPDLX;JZS15#,LS151..HT..(ROY,ROYEX,ROYT)

DK.ROSE,TRIM4#

 1
73380-30310E1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

ORCHID BROWN,TRIM4#

 1
73380-30310B1

GS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)

SHADOW GRAY,TRIM1#

 1
Common parts
90105-06081
90105-11036
90109-11027
90179-10016
90179-10083
90206-17005
90901-19040
91511-61025
91635-60820
93560-54014
