LS151-AEPFT (1995)
Toyota Crown/Crown Majesta

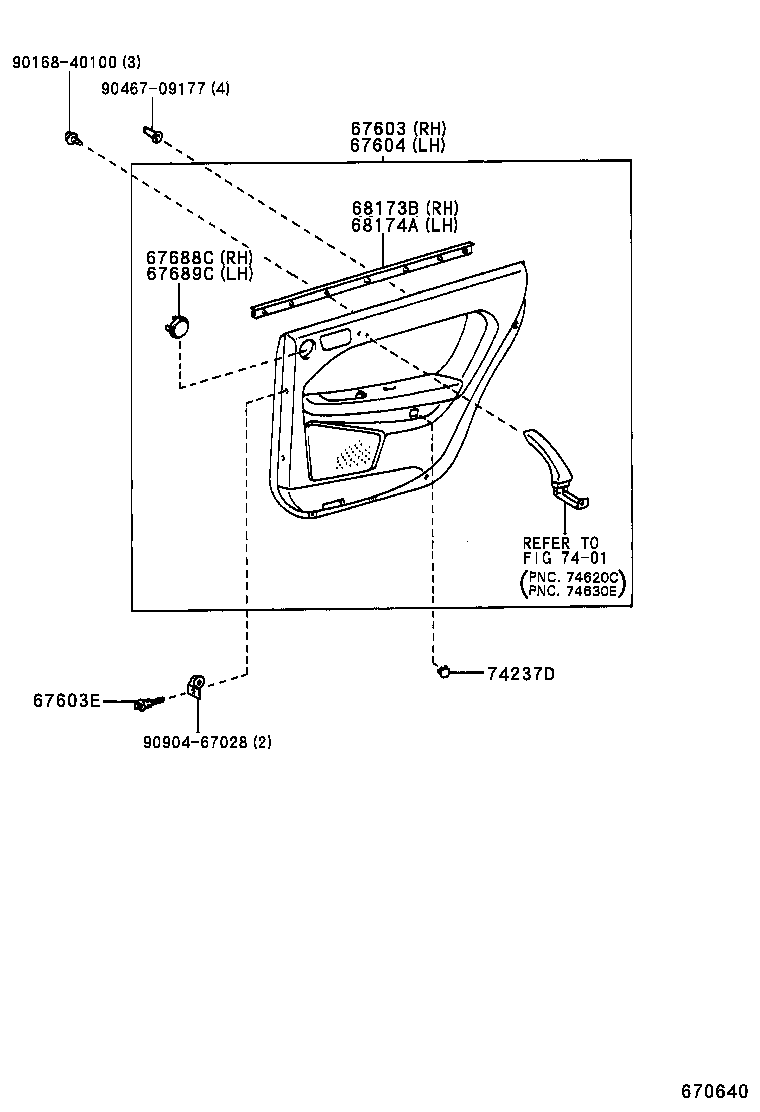

ILLUST NO. 1 OF 2(9512- )SED
D ﾊﾟﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3F070E0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3F070B0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3F070E0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F070B0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-30101 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-30051 |
GS151,JZS15#,LS151..SED |
1 | ||
| Common parts | ||||
| 67771-17030 | ||||
| 67771-43010 | ||||
| Linked diagrams | ||||
| 7401 | ||||

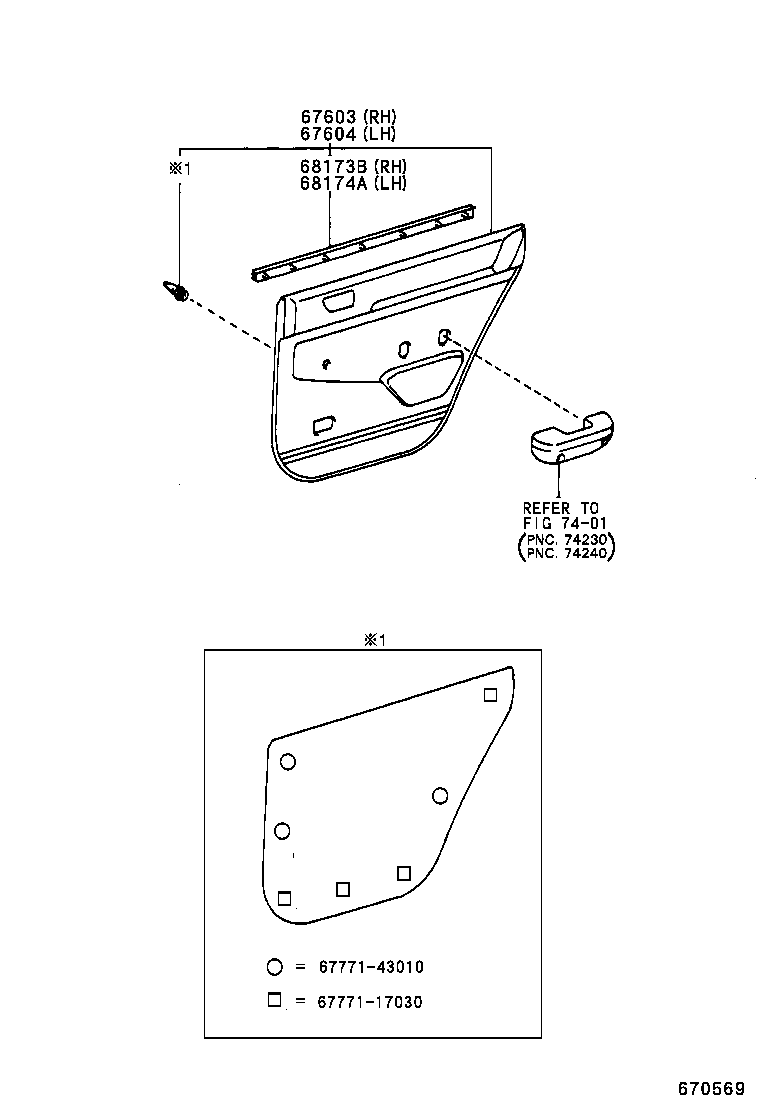

ILLUST NO. 1 OF 2(9512- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3F070E0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,ANTELOPE,TRIM4# |
1 | ||
| 67630-3F070B0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3F070E0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,ANTELOPE,TRIM4# |
1 | ||
| 67640-3F070B0 |
GS151,LS151..SPDLX..(HTWC,TDE) ﾄﾘﾑ = TYPE H-*104,DK.BLUE GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-30101 |
GS151,JZS15#,LS151..SED |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-30051 |
GS151,JZS15#,LS151..SED |
1 | ||
| Common parts | ||||
| 90168-40100 | ||||
| 90467-09177 | ||||
| 90904-67028 | ||||
| Linked diagrams | ||||
| 7401 | ||||

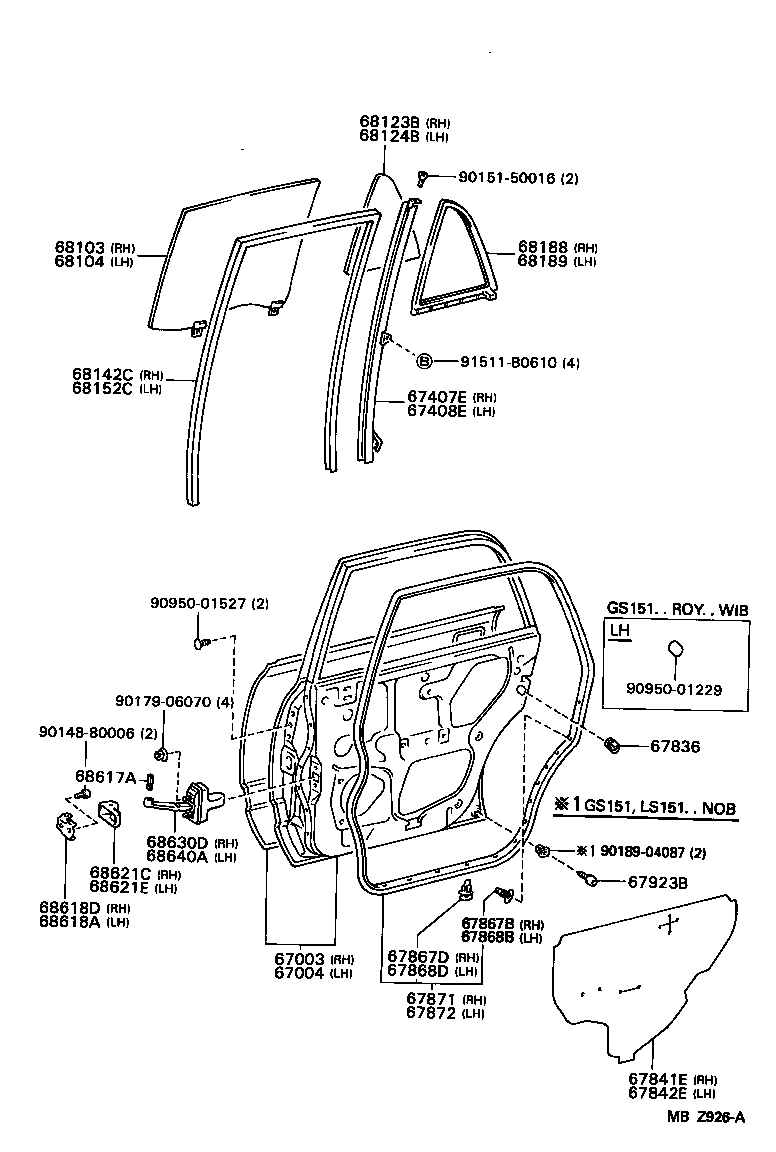

ILLUST NO. 2 OF 2(9512- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30530 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30530 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30131 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67407-30130 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30120 |
GS151,JZS15#,LS151..SED |
1 | ||
| 67408-30121 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30360 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30220 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS151,JZS151,153,155,LS151..SED |
21 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS151,JZS151,153,155,LS151..SED |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30260 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30270 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-30080 |
GS151,LS151..NOB;JZS155,UZS15#..A,C,E,F |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-30440 |
GS151,JZS15#,LS151..SED *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68103-30440 |
GS151,LS151..SPDLX *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-30440 |
GS151,JZS15#,LS151..SED *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-30440 |
GS151,LS151..SPDLX *TT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30380 |
GS151,JZS15#,LS151..SED *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-30380 |
GS151,LS151..SPDLX *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30320 |
GS151,JZS15#,LS151..SED *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-30320 |
GS151,LS151..SPDLX *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30140 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30040 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30110 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30090 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 68621E - COVER, REAR DOOR CHECK, LH | ||||
| 68621-50030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90148-80006 | ||||
| 90151-50016 | ||||
| 90179-06070 | ||||
| 90189-04087 | ||||
| 90950-01229 | ||||
| 90950-01527 | ||||
| 91511-B0610 | ||||
