LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )SED

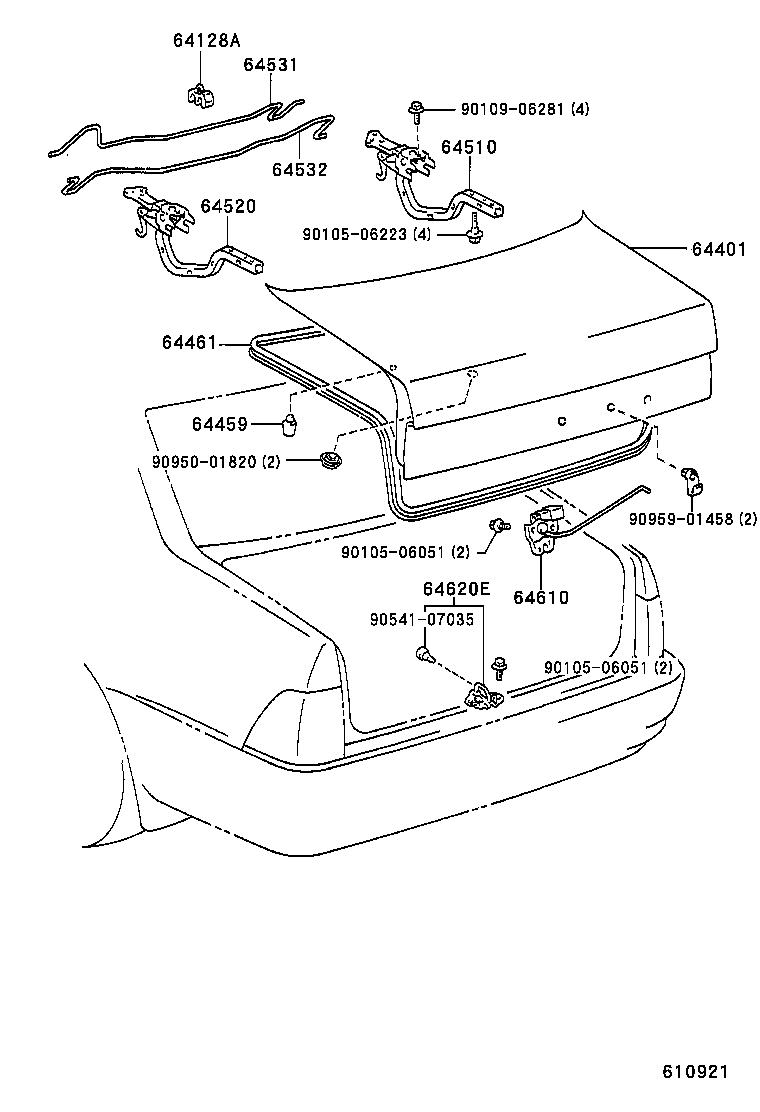

Click highlighted areas on diagram

diagram 64128A 64401 64459 64461 64510 64520 64531 64532 64610 64620E 9010506051 9010506051 9010506223 9010906281 9054107035 9095001820 9095901458
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64128-30050

GS151,JZS15#,LS151,UZS15#

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-30870

GS151,JZS151,153,155,LS151..SED

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09114

GS151,JZS151,153,155,LS151..SED

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30290

GS151,JZS151,153,155,LS151..SED

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-30100

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90105-06051
90105-06223
90109-06281
90541-07035
90950-01820
90959-01458
