LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )SED

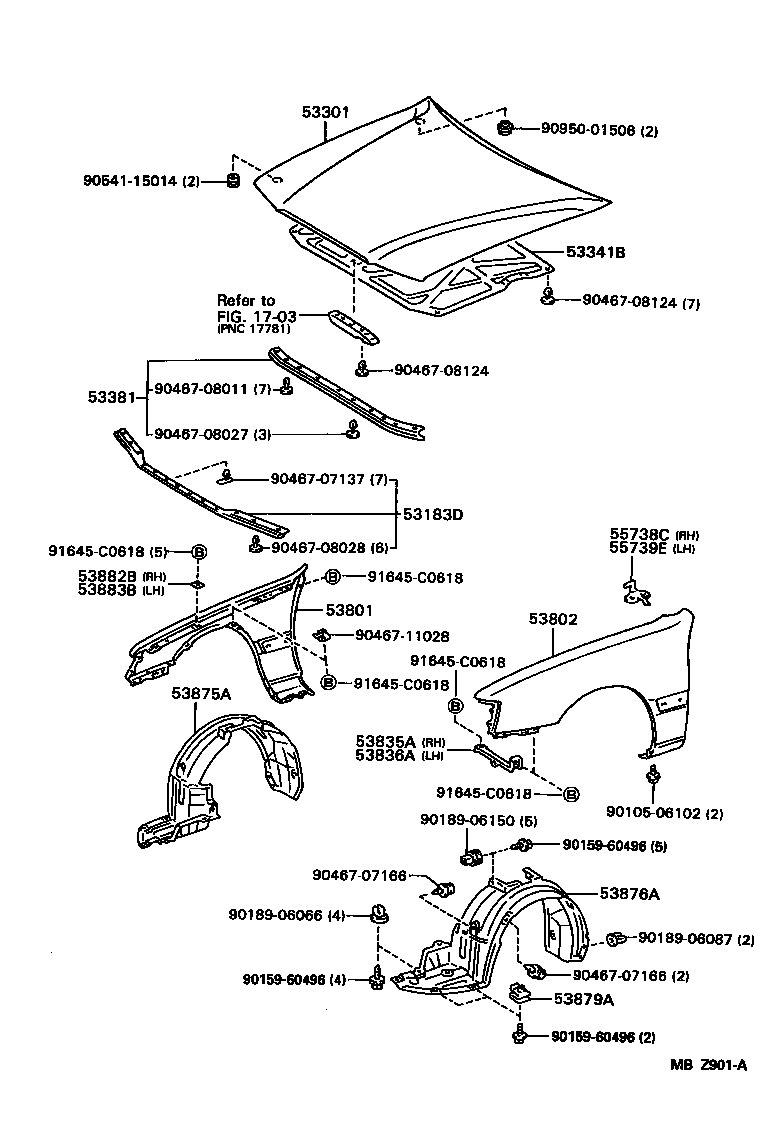

Click highlighted areas on diagram

diagram 1703 53183D 53301 53341B 53381 53801 53802 53835A 53836A 53875A 53876A 53879A 53882B 53883B 55738C 55739E 9010506102 9015960496 9015960496 9015960496 9018906066 9018906087 9018906150 9046707137 9046707166 9046707166 9046708011 9046708027 9046708028 9046708124 9046708124 9046711028 9054115014 9095001506 91645C0618 91645C0618 91645C0618 91645C0618 91645C0618
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-30180

GS151,JZS151,153,155,LS151..SED

 1
53301 - HOOD SUB-ASSY
53301-30300

GS151,JZS151,153,155,LS151..SED

 1
53341B - INSULATOR, HOOD
53341-30180

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30110

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-3F260

GS151,LS151..SPDLX

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 1
53801-3F180

GS151,LS151..SPDLX

ｱﾘ(ﾄﾞｱ ﾐﾗ- & ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-3F040

GS151,LS151..SPDLX

ｱﾘ(ﾄﾞｱ ﾐﾗ- & ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 1
53802-3F060

GS151,LS151..SPDLX

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-30060

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53835-30060

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
53875A - LINER, FRONT FENDER, RH
53875-30090

GS151,LS151..NOB

 1
53876A - LINER, FRONT FENDER, LH
53876-30070

GS151,LS151..NOB

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

GS151,JZS15#,LS151,UZS15#

 4
53882B - SEAL, FRONT FENDER, RH
53882-16030

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 5
53883B - SEAL, FRONT FENDER, LH
53882-16030

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 5
55738C - STOPPER, HOOD, RH
55738-22050

GS151,JZS15#,LS151,UZS15#

 1
55739E - STOPPER, HOOD, LH
55739-22040

GS151,JZS15#,LS151,UZS15#

 1
Common parts
90105-06102
90159-60496
90189-06066
90189-06087
90189-06150
90467-07137
90467-07166
90467-08011
90467-08027
90467-08028
90467-08124
90467-11028
90541-15014
90950-01506
91645-C0618
Linked diagrams
1703
