LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )NOB

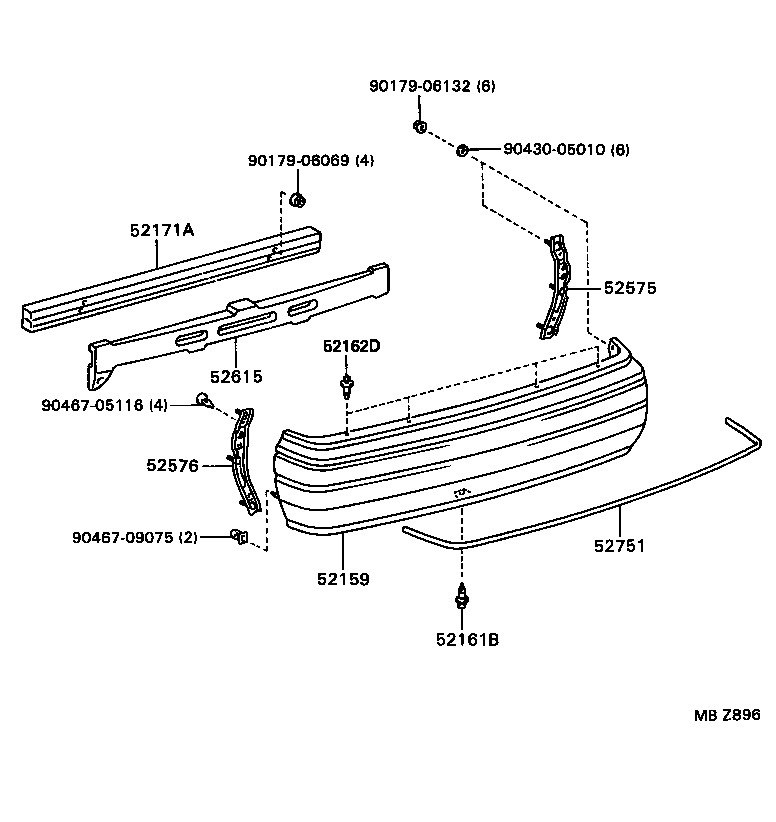

Click highlighted areas on diagram

diagram 52159 52161B 52162D 52171A 52575 52576 52615 52751 9017906069 9017906132 9043005010 9046705116 9046709075
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-30280H0

GS151,LS151..NOB

DK.TURQUOISE.MC,742

 1
52159-30280B0

GS151,LS151..NOB

SILVER ME,199

 1
52159-30280B1

GS151,LS151..NOB

DK.GRAY ME.,1A8

 1
52161B - PIECE, REAR BUMPER
52161-16010

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
52162D - PIECE, REAR BUMPER
90467-09181C1

GS151,JZS15#,LS151..SED

BLACK,199 ,1A8 ,202 ,8L4

 4
90467-09181A1

GS151,JZS15#,LS151..SED

WHITE,040

 4
90467-09181C1

GS151,JZS15#,LS151..SED

BLACK,199 ,202 ,742 ,8L4

 4
90467-09181C1

GS151,JZS151,153,155,LS151..SED

BLACK,1A8 ,199 ,202 ,8L4

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-30160

GS151,LS151..NOB

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30140

GS151,LS151..NOB

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-30130

GS151,LS151..NOB

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30190

GS151,LS151..NOB

 1
52751 - MOULDING, REAR BUMPER
52751-30140

GS151,LS151..NOB

 1
Common parts
90179-06069
90179-06132
90430-05010
90467-05116
90467-09075
