Toyota Crown/crown majesta LS151 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
LS151-AEPFT (1995)
5201 - FRONT BUMPER & BUMPER STAY

LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999

Engine 2LTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9508-9909)4FC..A,C,E,F

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-30120	GS151,LS151..NOB	12/1995 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-30300H0	GS151,LS151..NOB DK.TURQUOISE.MC,742	12/1995 - 07/1997	1
52119-30300B1	GS151,LS151..NOB DK.GRAY ME.,1A8	07/1997 - 09/1999	1
52119-30300B0	GS151,LS151..NOB SILVER ME,199	12/1995 - 09/1999	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30100	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30080	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30160	GS151,LS151..NOB	12/1995 - 07/1997	1
52421A - PAD, FRONT BUMPER
52421-30090	JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED	07/1996 - 10/1997	2
52421-30090	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1996	2
52541 - PROTECTOR, FRONT BUMPER
52541-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	2
52711 - MOULDING, FRONT BUMPER
52711-30190	GS151,LS151..NOB	12/1995 - 12/2999	1
Common parts
90105-06228
90155-60004
90159-60215
90159-60323
90179-05060
90179-05061
90179-06127
90179-06132
90179-08255
90189-06141
90467-05130
90467-06015C0
90467-09172
90467-11078
91645-C0616
93313-16035

(9707- )A,C,E,F

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-30120	GS151,LS151..NOB	12/1995 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-30300H0	GS151,LS151..NOB DK.TURQUOISE.MC,742	12/1995 - 07/1997	1
52119-30300B1	GS151,LS151..NOB DK.GRAY ME.,1A8	07/1997 - 09/1999	1
52119-30300B0	GS151,LS151..NOB SILVER ME,199	12/1995 - 09/1999	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30100	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30080	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30160	GS151,LS151..NOB	12/1995 - 07/1997	1
52421A - PAD, FRONT BUMPER
52421-30090	JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED	07/1996 - 10/1997	2
52421-30090	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1996	2
52541 - PROTECTOR, FRONT BUMPER
52541-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	2
52711 - MOULDING, FRONT BUMPER
52711-30190	GS151,LS151..NOB	12/1995 - 12/2999	1
Common parts
90105-06228
90155-60004
90159-60215
90179-05060
90179-06127
90179-06132
90179-08255
90189-06141
90467-05130
90467-09172
91645-C0616
93313-16035
Linked diagrams
4805

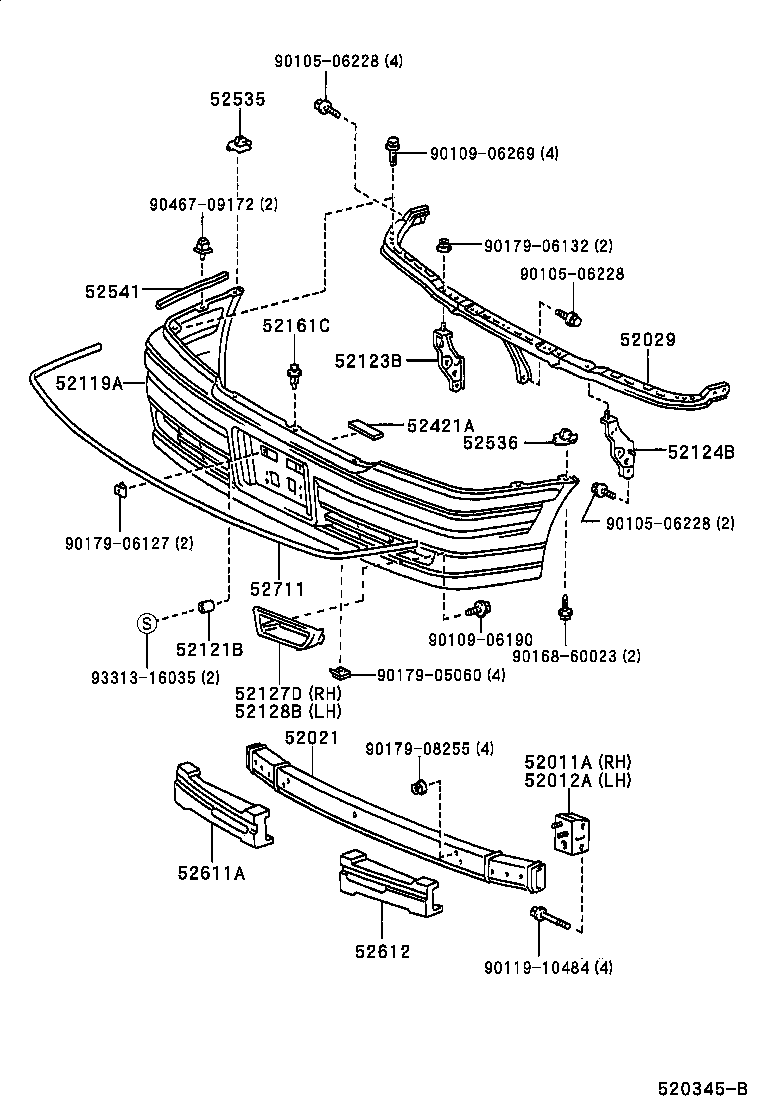

(9707- )NOB

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30230	GS151,LS151..NOB	12/1995 - 12/2999	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30240	GS151,LS151..NOB	12/1995 - 12/2999	1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-30160	GS151,LS151..NOB	07/1997 - 12/2999	1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-30120	GS151,LS151..NOB	12/1995 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-30300H0	GS151,LS151..NOB DK.TURQUOISE.MC,742	12/1995 - 07/1997	1
52119-30300B1	GS151,LS151..NOB DK.GRAY ME.,1A8	07/1997 - 09/1999	1
52119-30300B0	GS151,LS151..NOB SILVER ME,199	12/1995 - 09/1999	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30100	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30080	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-30100A0	GS151..5F;LS151..SED SUPER WHITE,040	08/1999 - 09/1999	1
52127-30100C0	GS151..5F;LS151..SED BLACK,202	08/1999 - 09/1999	1
52127-30100B1	GS151..5F;LS151..SED SILVER,199	08/1999 - 09/1999	1
52127-30100J0	GS151..5F;LS151..SED DK.BLUE,8L4	08/1999 - 09/1999	1
52127-30100B0	GS151..5F;LS151..SED DK.GRAY,1A8	08/1999 - 09/1999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-30060A0	GS151..5F;LS151..SED SUPER WHITE,040	08/1999 - 09/1999	1
52128-30060B1	GS151..5F;LS151..SED SILVER,199	08/1999 - 09/1999	1
52128-30060B0	GS151..5F;LS151..SED DK.GRAY,1A8	08/1999 - 09/1999	1
52128-30060C0	GS151..5F;LS151..SED BLACK,202	08/1999 - 09/1999	1
52128-30060J0	GS151..5F;LS151..SED DK.BLUE,8L4	08/1999 - 09/1999	1
52161C - PIECE, FRONT BUMPER
52161-16010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52421A - PAD, FRONT BUMPER
52421-30090	JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED	07/1996 - 10/1997	2
52421-30090	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1996	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52541 - PROTECTOR, FRONT BUMPER
52541-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	2
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-30150	GS151,LS151..NOB	12/1995 - 07/1997	1
52611-30220	GS151,LS151..NOB	07/1997 - 12/2999	1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-30020	GS151,LS151..NOB	07/1997 - 12/2999	1
52612-30010	GS151,LS151..NOB	12/1995 - 07/1997	1
52711 - MOULDING, FRONT BUMPER
52711-30190	GS151,LS151..NOB	12/1995 - 12/2999	1
Common parts
90105-06228
90109-06190
90109-06269
90119-10484
90168-60023
90179-05060
90179-06127
90179-06132
90179-08255
90467-09172
93313-16035

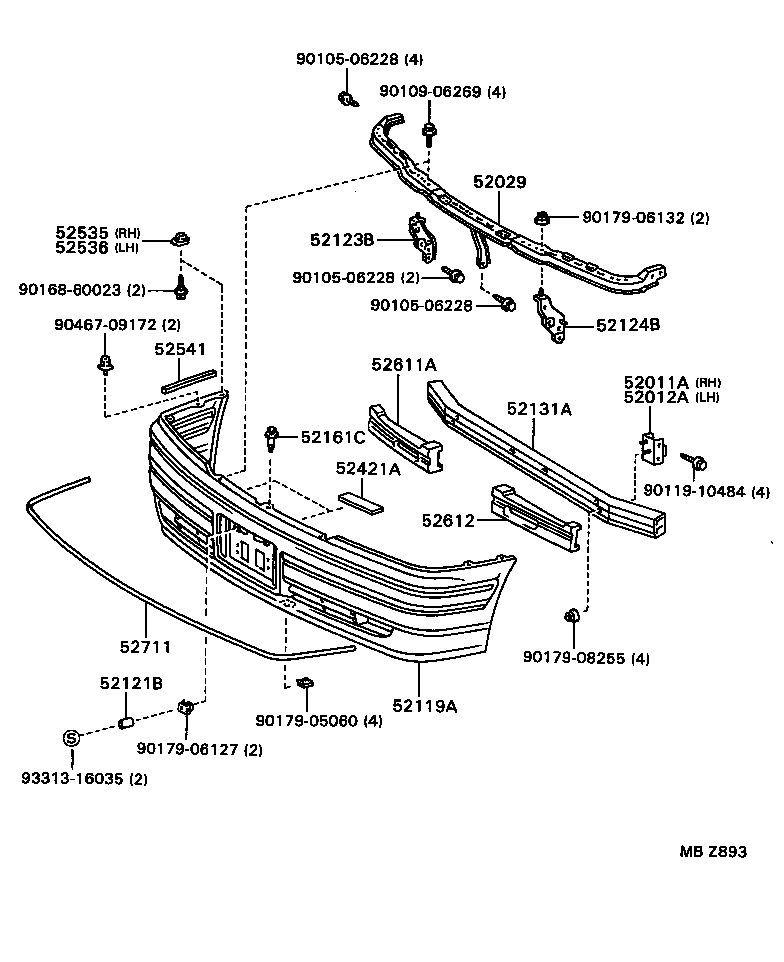

(9512-9707)NOB

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30230	GS151,LS151..NOB	12/1995 - 12/2999	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30240	GS151,LS151..NOB	12/1995 - 12/2999	1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-30120	GS151,LS151..NOB	12/1995 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-30300H0	GS151,LS151..NOB DK.TURQUOISE.MC,742	12/1995 - 07/1997	1
52119-30300B1	GS151,LS151..NOB DK.GRAY ME.,1A8	07/1997 - 09/1999	1
52119-30300B0	GS151,LS151..NOB SILVER ME,199	12/1995 - 09/1999	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	2
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30100	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30080	GS151,JZS151,153,155,LS151..SED	12/1995 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30160	GS151,LS151..NOB	12/1995 - 07/1997	1
52161C - PIECE, FRONT BUMPER
52161-16010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52421A - PAD, FRONT BUMPER
52421-30090	JZS155,UZS15#..A,C,E,F;GS151,JZS15#,LS151..SED	07/1996 - 10/1997	2
52421-30090	GS151,JZS15#,LS151,UZS15#	08/1995 - 07/1996	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
52541 - PROTECTOR, FRONT BUMPER
52541-30050	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	2
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-30150	GS151,LS151..NOB	12/1995 - 07/1997	1
52611-30220	GS151,LS151..NOB	07/1997 - 12/2999	1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-30020	GS151,LS151..NOB	07/1997 - 12/2999	1
52612-30010	GS151,LS151..NOB	12/1995 - 07/1997	1
52711 - MOULDING, FRONT BUMPER
52711-30190	GS151,LS151..NOB	12/1995 - 12/2999	1
Common parts
90105-06228
90109-06269
90119-10484
90168-60023
90179-05060
90179-06127
90179-06132
90179-08255
90467-09172
93313-16035
