LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9909)2LTE

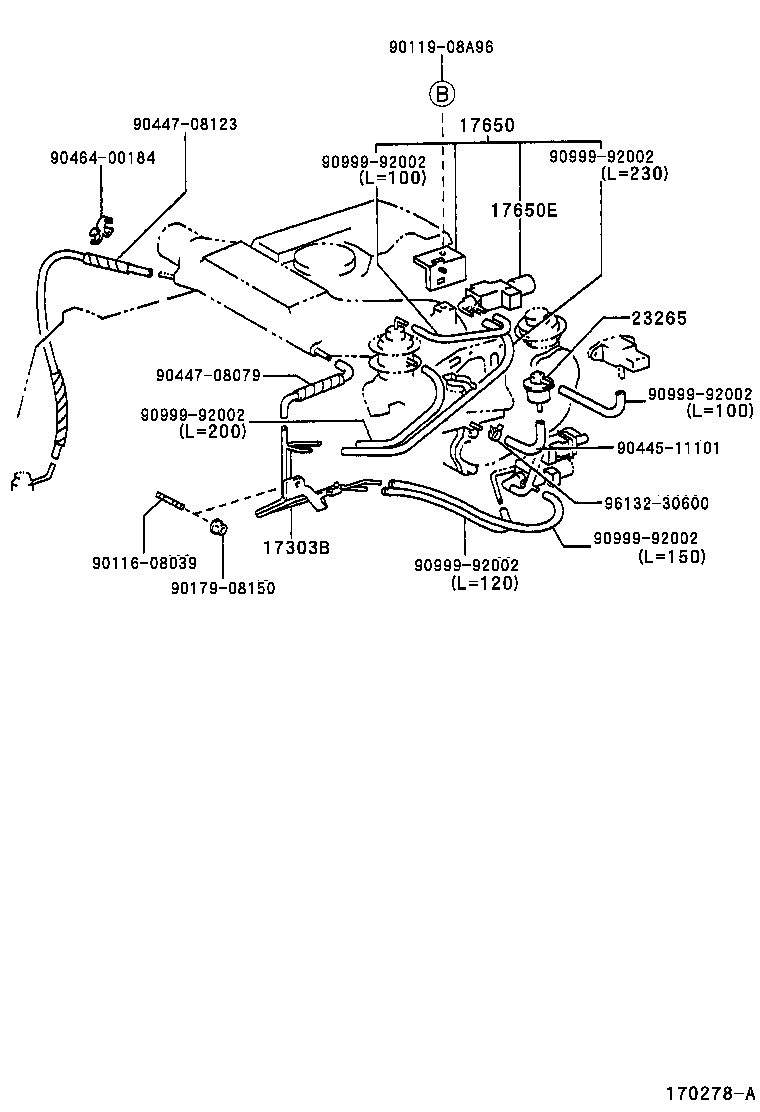

Click highlighted areas on diagram

diagram 17303B 17650 17650E 23265 9011608039 9011908A96 9017908150 9044511101 9044708079 9044708123 9046400184 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9613230600
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-54021

2LTE..LS151

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-60021

2LTE..LS151

 1
17650E - VALVE, VACUUM SWITCHING
90910-12134

2LTE..LS151

 1
23265 - FILTER, GAS, NO.1
90917-11033

2LTE..LS151

 1
Common parts
90116-08039
90119-08A96
90179-08150
90445-11101
90447-08079
90447-08123
90464-00184
90999-92002
96132-30600
