LS151-AEPFT (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Sep 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9909)2LTE

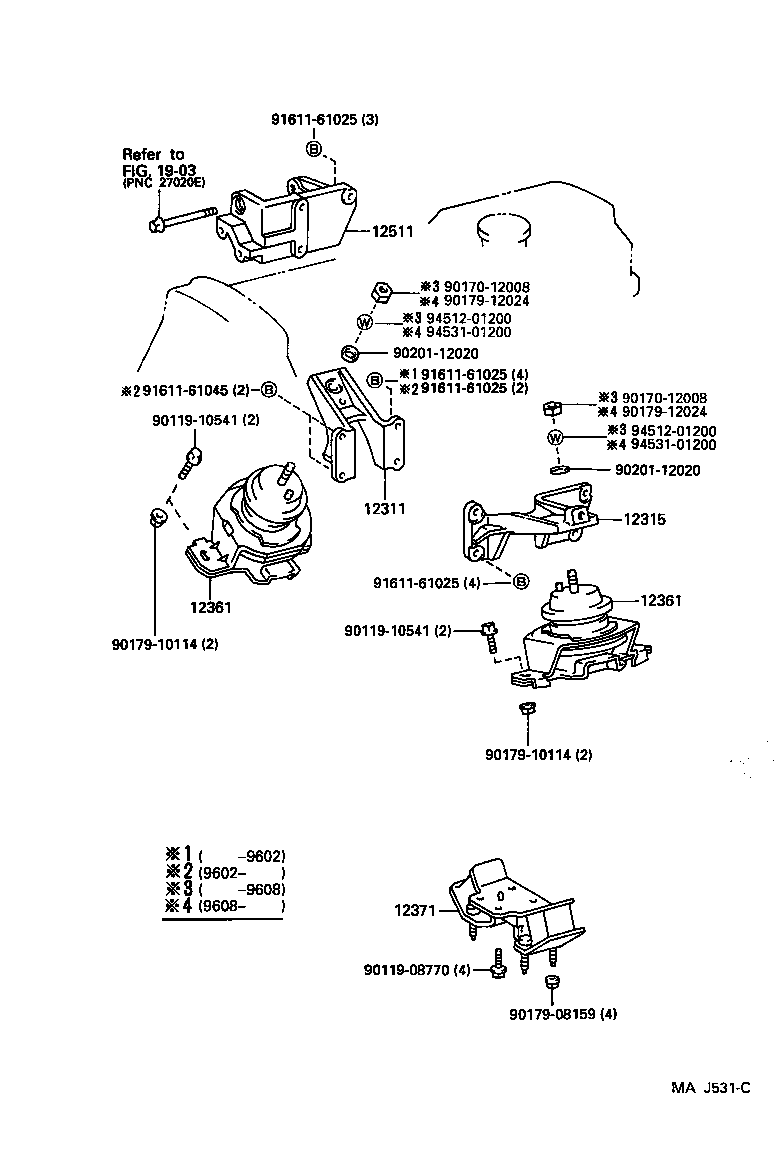

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 1903 9011908770 9011910541 9011910541 9017012008 9017012008 9017908159 9017910114 9017910114 9017912024 9017912024 9020112020 9020112020 9161161025 9161161025 9161161025 9161161025 9161161045 9451201200 9451201200 9453101200 9453101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54210

2LTE..LS151

 1
12311-54211

2LTE..LS151

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-54020

2LTE..LS151

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54190

2LTE..LS151

 2
12361-54191

2LTE..LS151

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54190

2LTE..LS151

 2
12361-54191

2LTE..LS151

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54130

2LTE..LS151

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-54020

2LTE..LS151

 1
12511-54021

2LTE..LS151

 1
Common parts
90119-08770
90119-10541
90170-12008
90179-08159
90179-10114
90179-12024
90201-12020
91611-61025
91611-61045
94512-01200
94531-01200
Linked diagrams
1903
