LS141-ATPSJ (1991)
Toyota Crown/Crown Majesta

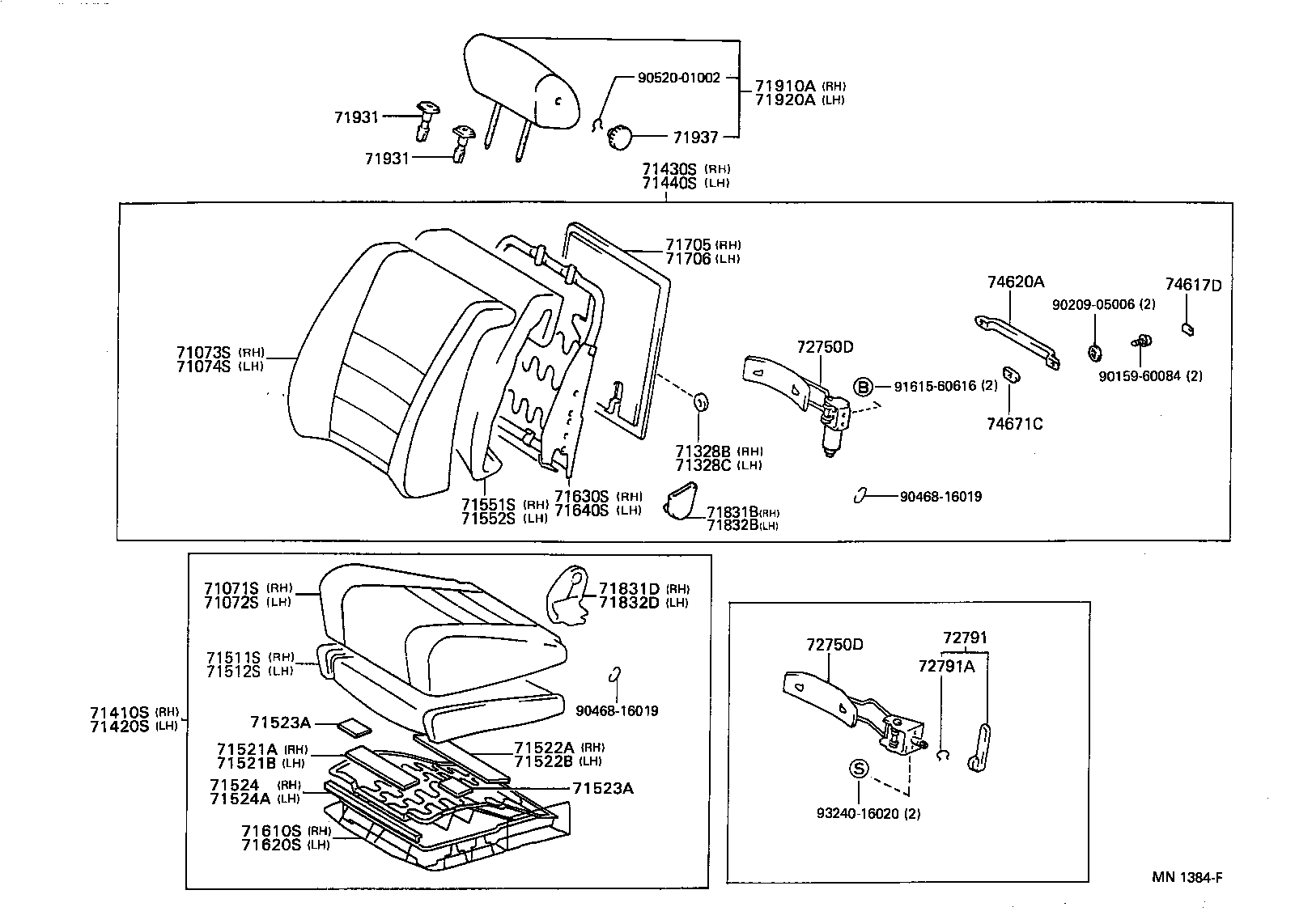

ILLUST NO. 1 OF 3(9110- )GS141,JZS141,143,145,LS141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3F720E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71071-3F280B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3F280J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71071-3F360E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71071-3F360B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3F360J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71071-3F280E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F180E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71072-3A580E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71072-3A600J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71072-3A580J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71072-3A600E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71072-3A580B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-3A600B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F460E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71073-3F110B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3F040B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3F040E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71073-3F110J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71073-3F040J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71073-3F110E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3F050E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71074-3A510E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71074-3A510J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71074-3A490B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-3A490J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71074-3A490E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71074-3A510B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3F470B0 |
JZS141,LS141..SSL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-3F470E0 |
JZS141,LS141..SSL ***,QUARTZ,TRIM4# |
1 | ||
| 71410-3F890B0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-3F470J0 |
JZS141,LS141..SSL ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-3F890J0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71410-3F890E0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A670B0 |
JZS141,LS141..SSL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-3A670E0 |
JZS141,LS141..SSL ***,QUARTZ,TRIM4# |
1 | ||
| 71420-3A650B0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-3A650E0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71420-3A670J0 |
JZS141,LS141..SSL ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-3A650J0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3K030E0 |
JZS141,LS141..SSL ***,QUARTZ,TRIM4# |
1 | ||
| 71430-3K030B0 |
JZS141,LS141..SSL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-3K030J0 |
JZS141,LS141..SSL ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-3K600B0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-3K600E0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71430-3K600J0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F810B0 |
JZS141,LS141..SSL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-3F880J0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71440-3F810J0 |
JZS141,LS141..SSL ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-3F880E0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71440-3F810E0 |
JZS141,LS141..SSL ***,QUARTZ,TRIM4# |
1 | ||
| 71440-3F880B0 |
JZS141,LS141..SSL ***,Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30810 |
JZS141,143,145,LS141 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30810 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-30280 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 71521B - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-30280 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30140 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 71522B - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30140 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS141,JZS141,143,145,LS141 |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 71524A - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30760 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30760 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30690 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30330 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A170 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30850 |
JZS141,LS141;JZS143..ROYT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30280E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 71705-30280B0 |
JZS141,143,145,LS141..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 71705-30280J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71705-30280B0 |
JZS141,143,145,LS141 SHADOW GRAY,TRIM1# |
1 | ||
| 71705-30280E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30280E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 71705-30280B0 |
JZS141,143,145,LS141..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 71705-30280E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71705-30280B0 |
JZS141,143,145,LS141 SHADOW GRAY,TRIM1# |
1 | ||
| 71705-30280J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30040B0 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71831-30040J1 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71831-30040E1 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-30030E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71831-30030B0 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71831-30030J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30020E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71832-30020B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71832-30020J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-30010B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71832-30010E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71832-30010J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30850E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71910-30670J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71910-30670E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71910-30670B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71910-30650B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-30650E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71910-30650J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-30460B0 |
JZS141,LS141..SSL SHADOW GRAY,TRIM1# |
1 | ||
| 71920-30460E0 |
JZS141,LS141..SSL QUARTZ,TRIM4# |
1 | ||
| 71920-30600E0 |
JZS141,LS141..SSL ﾄｸﾍﾞﾂｼﾖｳｼﾔ,QUARTZ,TRIM4# |
1 | ||
| 71920-30440B0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71920-30440J0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,DK.BLUE,TRIM8# |
1 | ||
| 71920-30460J0 |
JZS141,LS141..SSL DK.BLUE,TRIM8# |
1 | ||
| 71920-30440E0 |
JZS141,LS141..SSL Q ﾊﾟﾂｹ-ｼﾞ-*99,QUARTZ,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040E0 |
JZS14#,LS141,UZS141..4FC ﾛｯｸ無,QUARTZ,TRIM4# |
1 | ||
| 71930-12070E0 |
JZS14#,LS141,UZS141..4FC ﾛｯｸ付,QUARTZ,TRIM4# |
1 | ||
| 71930-12070B2 |
GS141,JZS14#,LS141,UZS14# ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71930-12070J0 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-12040J0 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-12040B2 |
GS141,JZS14#,LS141,UZS14# ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040E0 |
JZS14#,LS141,UZS141..4FC ﾛｯｸ無,QUARTZ,TRIM4# |
1 | ||
| 71930-12070E0 |
JZS14#,LS141,UZS141..4FC ﾛｯｸ付,QUARTZ,TRIM4# |
1 | ||
| 71930-12070B2 |
GS141,JZS14#,LS141,UZS14# ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71930-12070J0 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-12040J0 |
GS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-12040B2 |
GS141,JZS14#,LS141,UZS14# ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71937 - HANDLE, FRONT SEAT HEADREST REGULATOR | ||||
| 71937-30010E0 |
JZS14#,LS141,UZS141..4FC QUARTZ,TRIM4# |
1 | ||
| 71937-30010B0 |
JZS14#,LS141,UZS14# GRAY,TRIM1# |
1 | ||
| 71937-30010E0 |
JZS14#,LS141,UZS14# QUARTZ,TRIM4# |
1 | ||
| 71937-30010J0 |
JZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020E5 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72791-22020B4 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 72791-22020J1 |
GS141,JZS141,LS141..SALEX,SSL DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
JZS141,LS141..SALEX,SSL |
1 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 90209-05006 | ||||
| 90468-16019 | ||||
| 90520-01002 | ||||
| 91615-60616 | ||||
| 93240-16020 | ||||

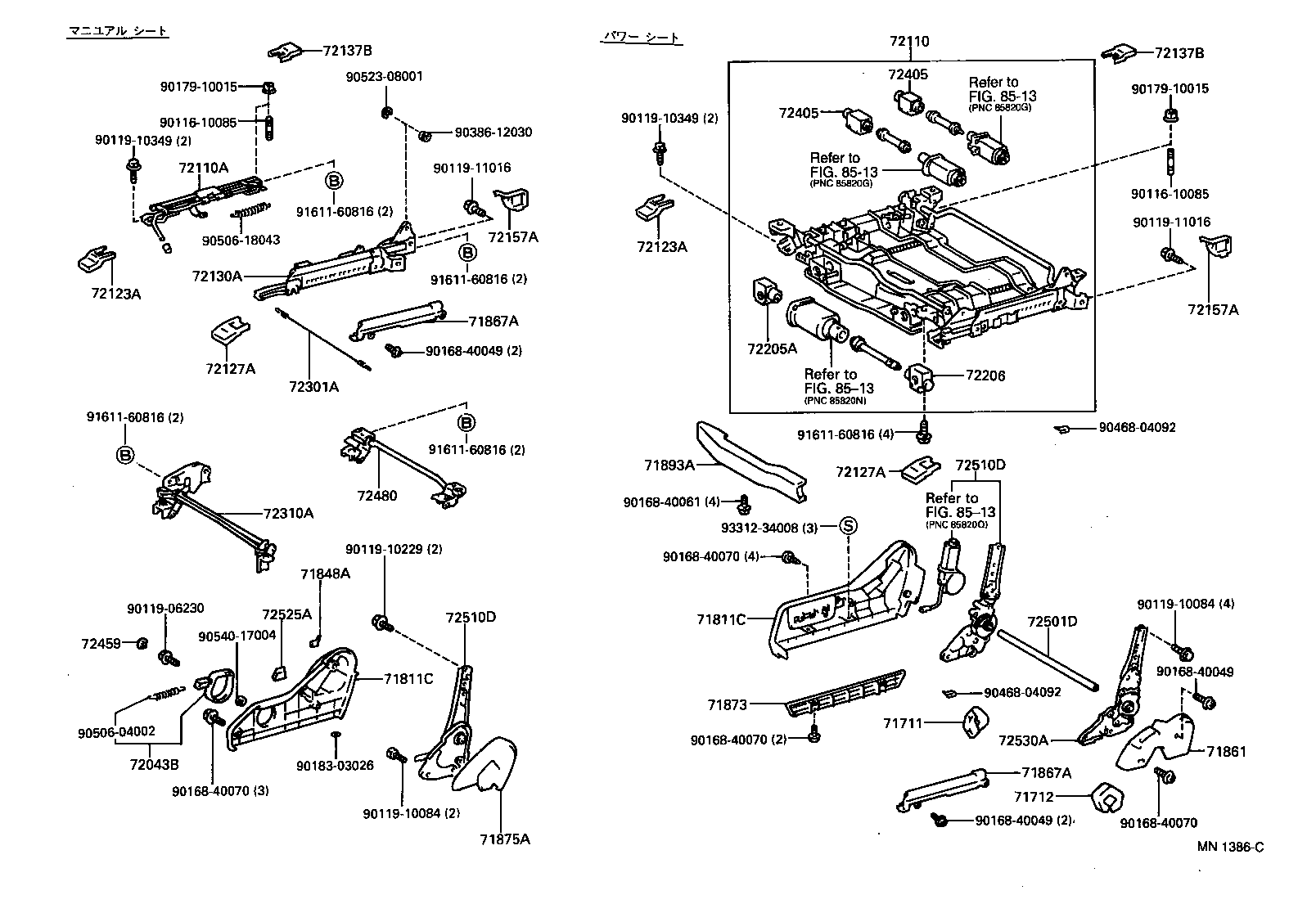

ILLUST NO. 2 OF 3(9110- )GS141,JZS141,143,145,LS141
RH ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30230E0 |
JZS141,LS141..ROYT,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71811-30230J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71811-30230B0 |
JZS141,LS141..ROYT,SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-30230E0 |
JZS141,LS141..ROYT,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71811-30230J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71811-30230B0 |
JZS141,LS141..ROYT,SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-30010B0 |
JZS141,LS141..ROYT,SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71848-30010E0 |
JZS141,LS141..ROYT,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71848-30010J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30030B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 71867-30030J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71867-30030E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30030B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 71867-30030J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71867-30030E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30040B0 |
JZS141,LS141..ROYT,SALEX,SSL GRAY,TRIM1# |
1 | ||
| 71875-30040E0 |
JZS141,LS141..ROYT,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 71875-30040J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72043B - LEVER SUB-ASSY, SEAT LIFTER, RH | ||||
| 72043-30010E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72043-30010B0 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 72043-30010J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30450 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30040E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72123-30040E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72123-30040J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72123-30040B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30040E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72123-30040E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72123-30040J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72123-30040B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30010B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72127-30010E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72127-30010J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72127-30010E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30010B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72127-30010E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72127-30010J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72127-30010E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-30140 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30040B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72137-30040J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72137-30040E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72137-30040E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30040B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72137-30040J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72137-30040E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72137-30040E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30020J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72157-30020E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72157-30020B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72157-30020E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30020J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72157-30020E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 72157-30020B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72157-30020E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30140 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72310A - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72310-30050 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-30020E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72459-30020J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72459-30020B0 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 72480 - ADJUSTER ASSY, FRONT SEAT VERTICAL, NO.2 RH | ||||
| 72480-30020 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
JZS141,LS141..SALEX,SSL |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-30080E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72525-30080B0 |
JZS141,LS141..SALEX,SSL GRAY,TRIM1# |
1 | ||
| 72525-30080J0 |
GS141,JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90168-40061 | ||||
| 90168-40070 | ||||
| 90179-10015 | ||||
| 90183-03026 | ||||
| 90386-12030 | ||||
| 90468-04092 | ||||
| 90506-04002 | ||||
| 90506-18043 | ||||
| 90523-08001 | ||||
| 90540-17004 | ||||
| 91611-60816 | ||||
| 93312-34008 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 3 OF 3(9110- )GS141,JZS141,143,145,LS141
LH ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71812-30130J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71812-30130B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-30130E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71812-30130J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71812-30130B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30050E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 71868-30050B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 71868-30050E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71868-30050J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30050E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 71868-30050B0 |
JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 71868-30050E0 |
JZS141,143,145,LS141 QUARTZ,TRIM4# |
1 | ||
| 71868-30050J0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71873-30021B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71873-30021J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30021E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71873-30021B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71873-30021J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30040E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 71876-30040B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 71876-30040J0 |
GS141,JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30040E0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72124-30040J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72124-30040B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-30040E0 |
JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72124-30040J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72124-30040B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30010E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72128-30010J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72128-30010B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-30010E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72128-30010J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72128-30010B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30021J0 |
JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72138-30021E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 72138-30021E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72138-30021B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30021J0 |
JZS141,LS141..SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72138-30021E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| 72138-30021E0 |
JZS141,LS141..SALEX,SSL QUARTZ,TRIM4# |
1 | ||
| 72138-30021B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30020E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72158-30020J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72158-30020B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30020E0 |
JZS141,143,145,LS141..4FC QUARTZ,TRIM4# |
1 | ||
| 72158-30020J0 |
GS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72158-30020B0 |
GS141,JZS141,143,145,LS141 GRAY,TRIM1# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
JZS143..ROYT;GS141,JZS141,LS141 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-30050E0 |
JZS141,LS141;JZS143..ROYT QUARTZ,TRIM4# |
1 | ||
| 72526-30050B0 |
JZS143..ROYT;GS141,JZS141,LS141 GRAY,TRIM1# |
1 | ||
| 72526-30050J0 |
JZS141,LS141..ROY,SALEX,SSL DK.BLUE,TRIM8# |
1 | ||
| 72526-30050E0 |
JZS141,LS141 QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90168-40061 | ||||
| 90168-40070 | ||||
| 90179-10015 | ||||
| 90183-03026 | ||||
| 90386-12030 | ||||
| 90468-04092 | ||||
| 90506-18043 | ||||
| 90523-08001 | ||||
| 91611-60816 | ||||
| 93312-34008 | ||||
| Linked diagrams | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
