LS141-ATPSJ (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1993
Engine 2LTHE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS141,JZS141,143,145,LS141

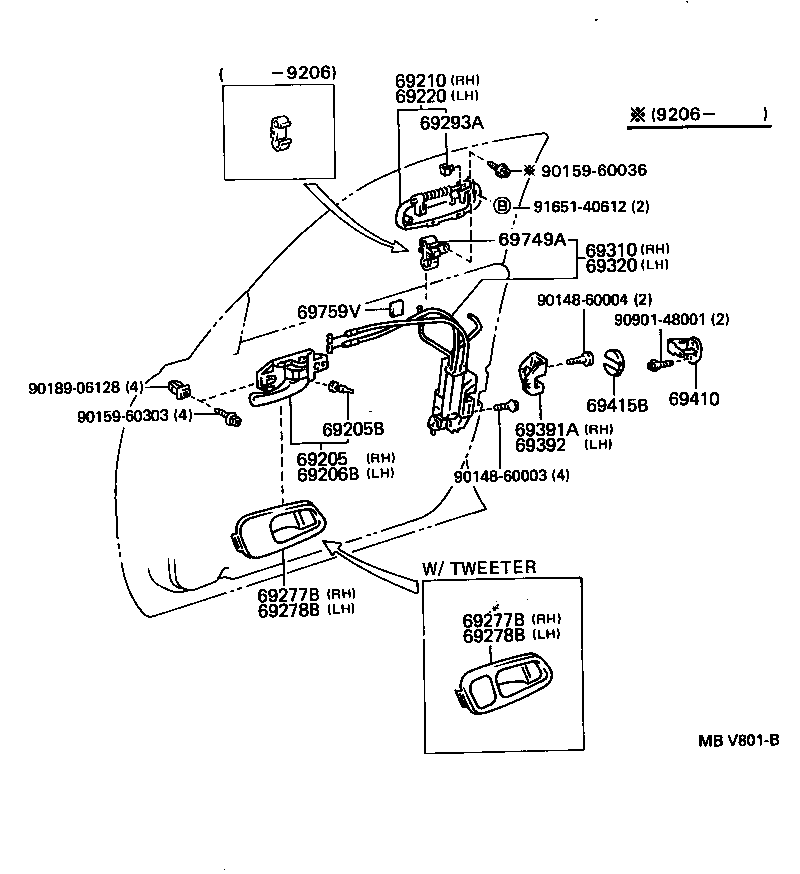

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69220 69277B 69277B 69278B 69278B 69293A 69310 69320 69391A 69392 69410 69415B 69749A 69759V 9014860003 9014860004 9015960036 9015960303 9018906128 9090148001 9165140612
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30060E0

JZS14#,LS141,UZS141..4FC

QUARTZ,TRIM4#

 1
69205-30060E0

JZS14#,LS141,UZS14#

QUARTZ,TRIM4#

 1
69205-30060B0

JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
69205-30060E0

JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
69205-30060J0

JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
69205-30060B0

JZS14#,LS141,UZS14#

SHADOW GRAY,TRIM1#

 1
69205-30060J0

JZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

JZS14#,LS141,UZS14#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30060E0

JZS14#,LS141,UZS14#

QUARTZ,TRIM4#

 1
69206-30060E0

JZS141,143,145,LS141

QUARTZ,TRIM4#

 1
69206-30060B0

JZS14#,LS141,UZS14#

SHADOW GRAY,TRIM1#

 1
69206-30060J0

JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
69206-30060J0

JZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL

DK.BLUE,TRIM8#

 1
69206-30060B0

JZS141,143,145,LS141

SHADOW GRAY,TRIM1#

 1
69206-30060E0

JZS14#,LS141,UZS141..4FC

QUARTZ,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30200G0

JZS141,143,145,LS141..4FC

DK GREEN M,6K2

 1
69210-30200C0

JZS141,143,145,LS141..4FC

BLACK,202

 1
69210-30200A1

JZS141,143,145,LS141..4FC

SUPER WHITE 4,050

 1
69210-30200H0

JZS141,143,145,LS141

DK.T0RQU0ISE.MC,742

 1
69210-30200A0

JZS141,143,LS141..ROYT,SSL

WARM GRAY PEARL MICA,29T

 1
69210-30200J0

JZS141,143,145,LS141..ROY,ROYG,SSL

DK.BLUE MICA FP,8J5

 1
69210-30200B0

JZS141,143,145,LS141

BL.GRAY ME,182

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-30180B0

JZS141,143,145,LS141

BL.GRAY ME,182

 1
69220-30180J0

JZS141,143,145,LS141..ROY,ROYG,SSL

DK.BLUE MICA FP,8J5

 1
69220-30180A0

JZS141,143,LS141..ROYT,SSL

WARM GRAY PEARL MICA,29T

 1
69220-30180H0

JZS141,143,145,LS141

DK.T0RQU0ISE.MC,742

 1
69220-30180G0

JZS141,143,145,LS141..4FC

DK GREEN M,6K2

 1
69220-30180A1

JZS141,143,145,LS141..4FC

SUPER WHITE 4,050

 1
69220-30180C0

JZS141,143,145,LS141..4FC

BLACK,202

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-30100E0

GS141,JZS141,LS141..SALEX,SSL

QUARTZ,TRIM4#

 1
69277-30100J0

GS141,JZS141,LS141..SALEX,SSL

DK.BLUE,TRIM8#

 1
69277-30100B0

GS141,JZS141,LS141..SALEX,SSL

SHADOW GRAY,TRIM1#

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-30100E0

GS141,JZS141,LS141..SALEX,SSL

QUARTZ,TRIM4#

 1
69277-30100J0

GS141,JZS141,LS141..SALEX,SSL

DK.BLUE,TRIM8#

 1
69277-30100B0

GS141,JZS141,LS141..SALEX,SSL

SHADOW GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-30040B0

GS141,JZS141,LS141..SALEX,SSL

SHADOW GRAY,TRIM1#

 1
69278-30040J0

GS141,JZS141,LS141..SALEX,SSL

DK.BLUE,TRIM8#

 1
69278-30040E0

GS141,JZS141,LS141..SALEX,SSL

QUARTZ,TRIM4#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-30040B0

GS141,JZS141,LS141..SALEX,SSL

SHADOW GRAY,TRIM1#

 1
69278-30040J0

GS141,JZS141,LS141..SALEX,SSL

DK.BLUE,TRIM8#

 1
69278-30040E0

GS141,JZS141,LS141..SALEX,SSL

QUARTZ,TRIM4#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-30030

GS141,JZS14#,LS141,UZS14#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69030-30750

JZS141,143,145,LS141

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-30710

JZS141,143,145,LS141

 1
69391A - COVER, FRONT DOOR LOCK, OUTER RH
69391-30030

GS141,JZS141,143,145,LS141

 1
69392 - COVER, FRONT DOOR LOCK, OUTER LH
69392-30030

GS141,JZS141,143,145,LS141

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-30030

GS141,JZS14#,LS141,UZS14#

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-30010

GS141,JZS14#,LS141,UZS14#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-30040

JZS14#,LS141,UZS141

 1
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-30090

GS141,JZS14#,LS141,UZS14#

 2
Common parts
90148-60003
90148-60004
90159-60036
90159-60303
90189-06128
90901-48001
91651-40612
