LS141-ATPJT (1993)
Toyota Crown/Crown Majesta
Production
Aug 1993
-
Aug 1995
Engine
2LTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9508)JZS141,143,145,LS141

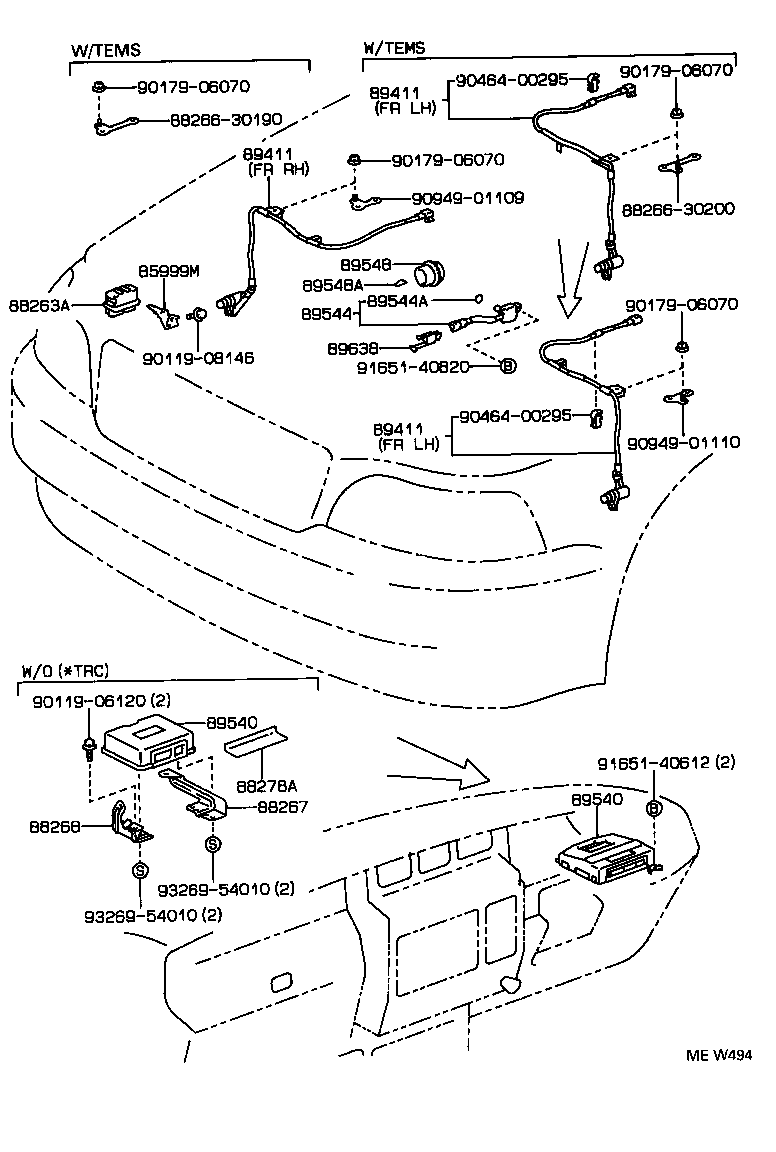

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-30410 |
JZS141,143,145,LS141 |
1 | ||
| 85999-30450 |
JZS141,143,145,LS141 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 89633-50030 |
JZS141,143,145,LS141 NO.2 |
1 | ||
| 88263-12070 |
JZS141,143,145,LS141 |
1 | ||
| 88263-35070 |
JZS141,143,145,LS141 NO.1 |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-30150 |
JZS141,143,145,LS141 |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-30140 |
JZS141,143,145,LS141 |
1 | ||
| 88278A - CUSHION, SKID CONTROL COMPUTER | ||||
| 88278-30150 |
JZS141,143,145,LS141 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-30140 |
JZS141,143,LS141..4FC FRONT RH |
1 | ||
| 89543-30140 |
JZS141,143,LS141..4FC FRONT LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-30140 |
JZS141,143,LS141..4FC FRONT RH |
1 | ||
| 89543-30140 |
JZS141,143,LS141..4FC FRONT LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-30140 |
JZS141,143,LS141..4FC FRONT RH |
1 | ||
| 89543-30140 |
JZS141,143,LS141..4FC FRONT LH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-30140 |
JZS141,143,145,LS141 |
1 | ||
| 89541-30060 |
JZS145,LS141 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-30140 |
JZS141,143,145,LS141 |
1 | ||
| 89541-30060 |
JZS145,LS141 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-30010 |
JZS141,143,145,LS141 |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 90301-11008 |
JZS141,143,145,LS141 |
1 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89548-14010 |
JZS141,143,145,LS141 |
1 | ||
| 89548A - KEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR) | ||||
| 90280-03005 |
JZS141,143,145,LS141 |
1 | ||
| 89638 - COVER, BRAKE CONTROL COMPUTER | ||||
| 89638-30010 |
JZS141,143,145,LS141 |
1 | ||
| Common parts | ||||
| 88266-30190 | ||||
| 88266-30200 | ||||
| 90119-06120 | ||||
| 90119-08146 | ||||
| 90179-06070 | ||||
| 90464-00295 | ||||
| 90949-01109 | ||||
| 90949-01110 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 93269-54010 | ||||
