LS141-ATPJJ (1991)
Toyota Crown/Crown Majesta
Production
Oct 1991
-
Aug 1993
Engine
2LTHE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

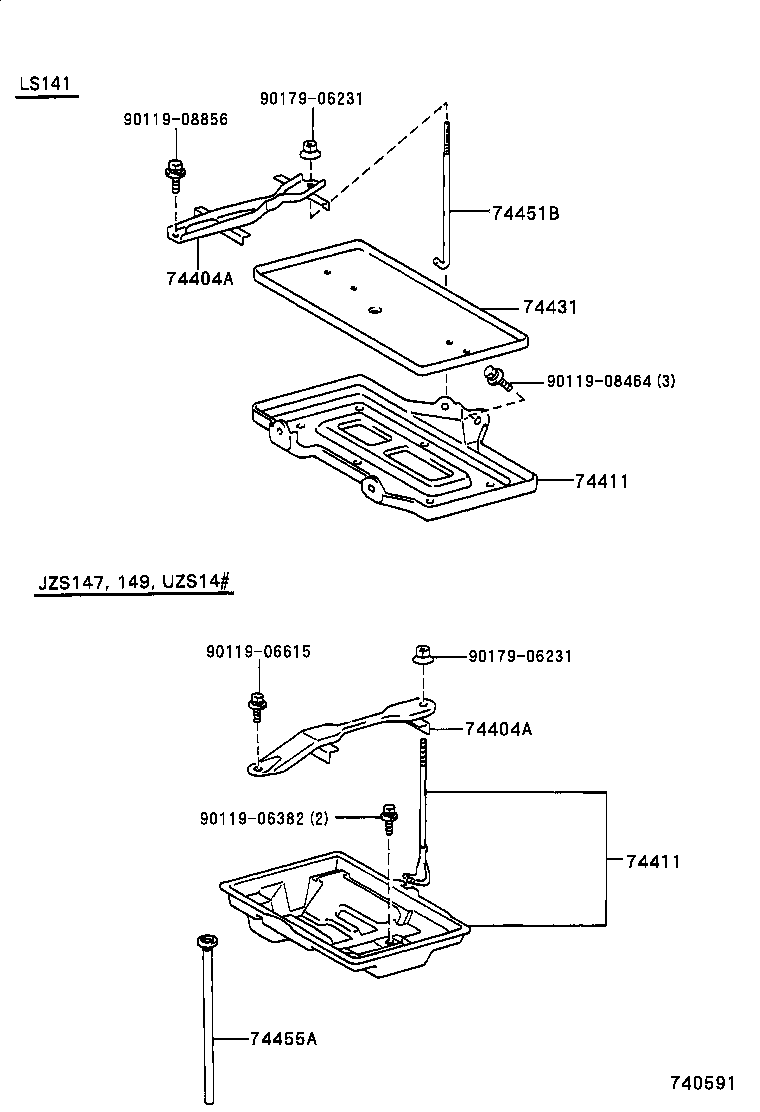

(9110- )JZS147,149,LS141,UZS14#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-30230 |
LS141 140E41L |
1 | ||
| 74404-30220 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-30230 |
LS141 140E41L |
1 | ||
| 74404-30220 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-30250 |
LS141 140E41L |
1 | ||
| 74431-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-30250 |
LS141 140E41L |
1 | ||
| 74431-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-30010 |
LS141 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74451-30080 |
LS141 140E41L |
1 | ||
| 74455A - HOSE, BATTERY DRAIN | ||||
| 74455-30020 |
JZS14#,LS141,UZS141 |
1 | ||
| Common parts | ||||
| 90119-06382 | ||||
| 90119-06615 | ||||
| 90119-08464 | ||||
| 90119-08856 | ||||
| 90179-06231 | ||||

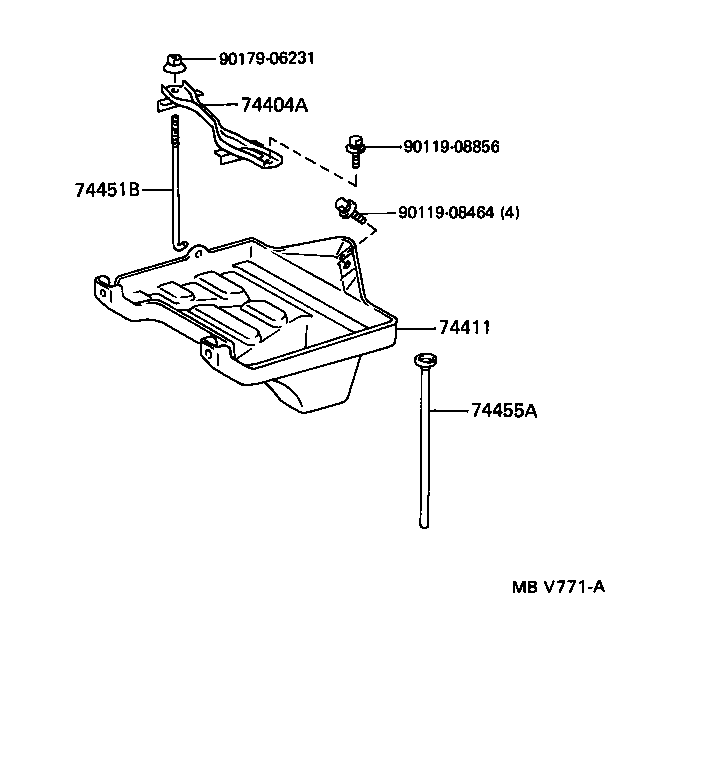

(9110- )GS141,JZS141,143,145,LS141
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-30230 |
LS141 140E41L |
1 | ||
| 74404-30220 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-30250 |
LS141 140E41L |
1 | ||
| 74431-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-30090 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 74451-30080 |
LS141 140E41L |
1 | ||
| 74455A - HOSE, BATTERY DRAIN | ||||
| 74455-30020 |
JZS14#,LS141,UZS141 |
1 | ||
| Common parts | ||||
| 90119-08464 | ||||
| 90119-08856 | ||||
| 90179-06231 | ||||
