LS141-ATPJJ (1991)
Toyota Crown/Crown Majesta
Production
Oct 1991
-
Aug 1993
Engine
2LTHE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )LS141

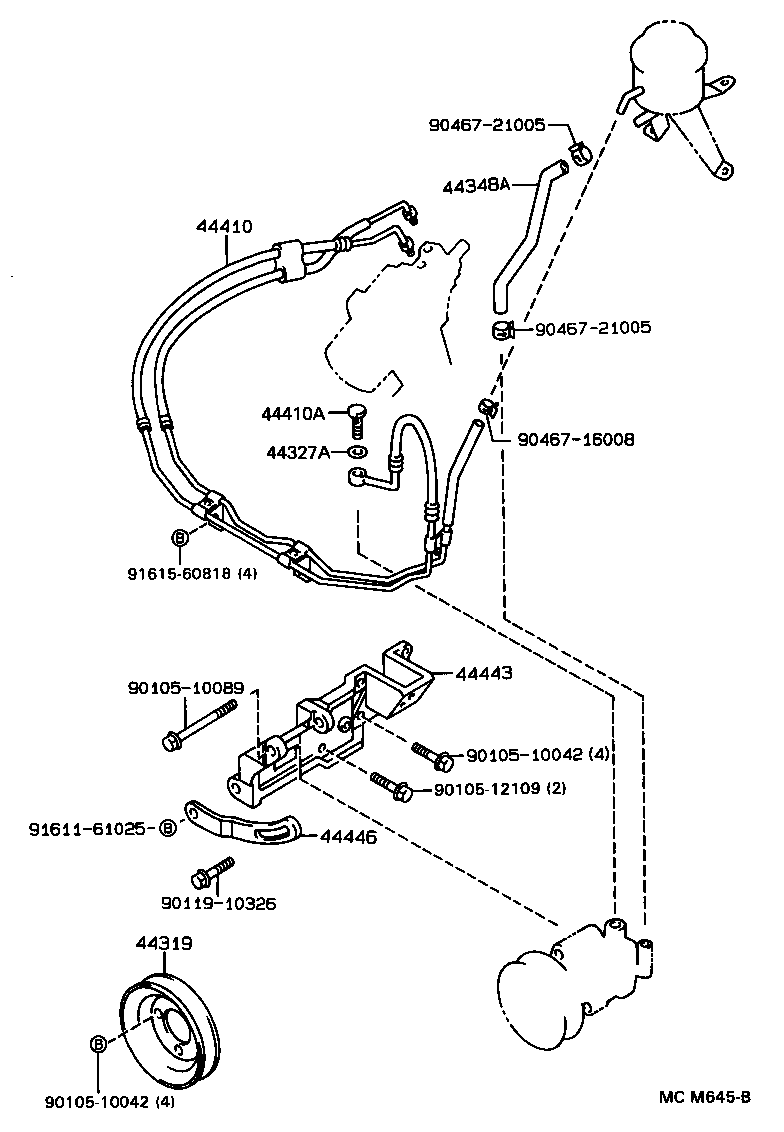

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-22010 |
LS141 |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
LS141 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-30080 |
LS141 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-30081 |
LS141 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
LS141 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30080 |
LS141 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30070 |
LS141 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10089 | ||||
| 90105-12109 | ||||
| 90119-10326 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-61025 | ||||
| 91615-60818 | ||||
