LS141-ATPJJ (1991)
Toyota Crown/Crown Majesta

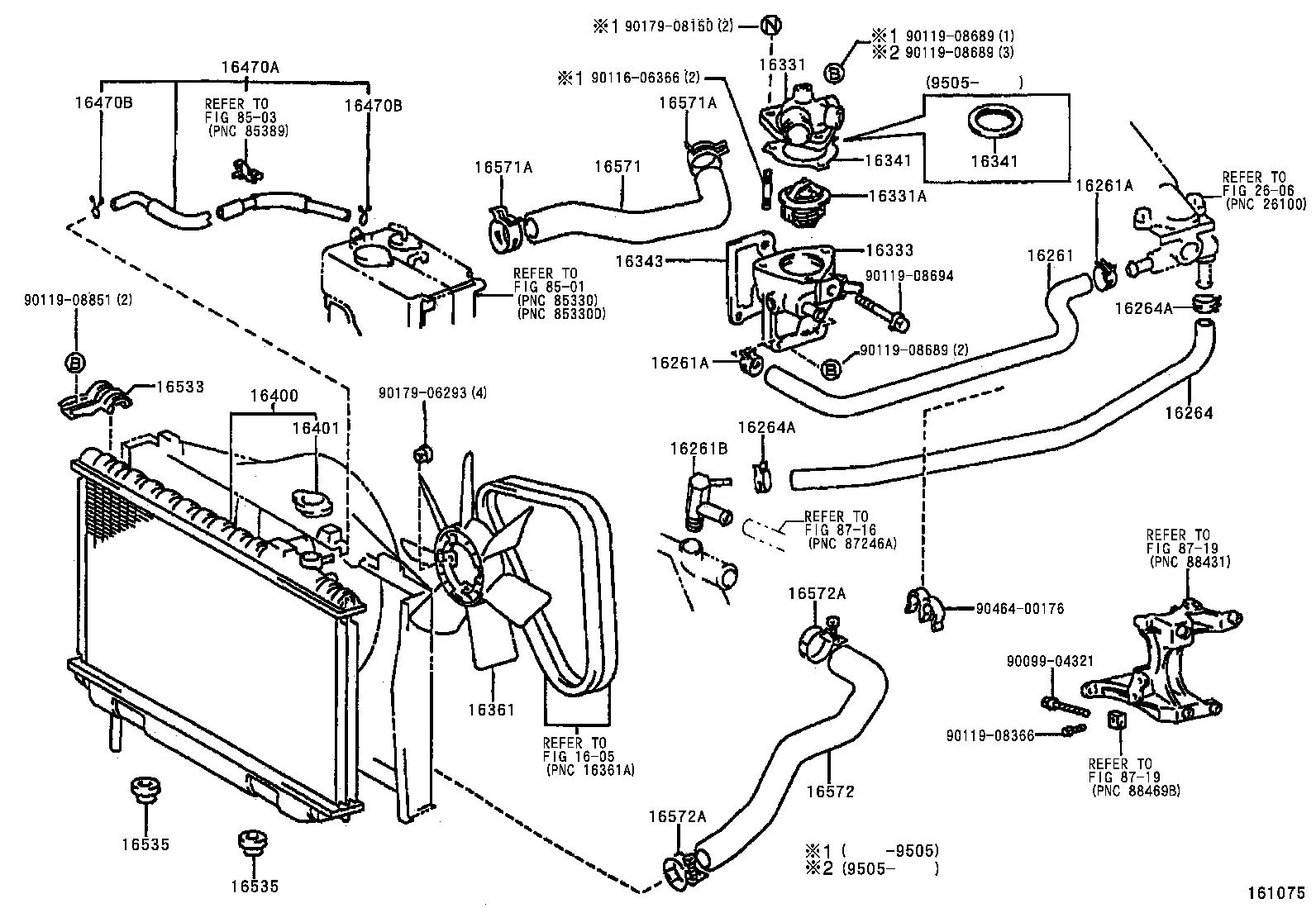

ILLUST NO. 1 OF 3(9110-9308)2LTHE ; (9308- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54110 |
2LT#..LS141 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LT#..LS141 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LT#..LS141 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54040 |
2LT#..LS141 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54130 |
2LT#..LS141 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#..LS141 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT#..LS141 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54130 |
2LT#..LS141 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LT#..LS141 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54112 |
2LT#..LS141 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54040 |
2LT#..LS141 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54040 |
2LT#..LS141 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
2LT#..LS141 |
1 | ||
| 16361 - FAN | ||||
| 16361-54060 |
2LT#..LS141 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B081 |
2LT#..LS141 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2LT#..LS141 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85399-30280 |
2LT#..LS141 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#..LS141 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2LT#..LS141 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
2LT#..LS141 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-35008 |
2LT#..LS141 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-35008 |
2LT#..LS141 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54290 |
2LT#..LS141 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
2LT#..LS141 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
2LT#..LS141 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54340 |
2LT#..LS141 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41004 |
2LT#..LS141 WATER PUMP SIDE |
1 | ||
| 90467-37006 |
2LT#..LS141 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41004 |
2LT#..LS141 WATER PUMP SIDE |
1 | ||
| 90467-37006 |
2LT#..LS141 ﾗｼﾞｴｰﾀ側 |
1 | ||
| Common parts | ||||
| 90099-04321 | ||||
| 90116-06366 | ||||
| 90119-08366 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08851 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90464-00176 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 2606 | ||||
| 8501 | ||||
| 8503 | ||||
| 8716 | ||||
| 8719 | ||||

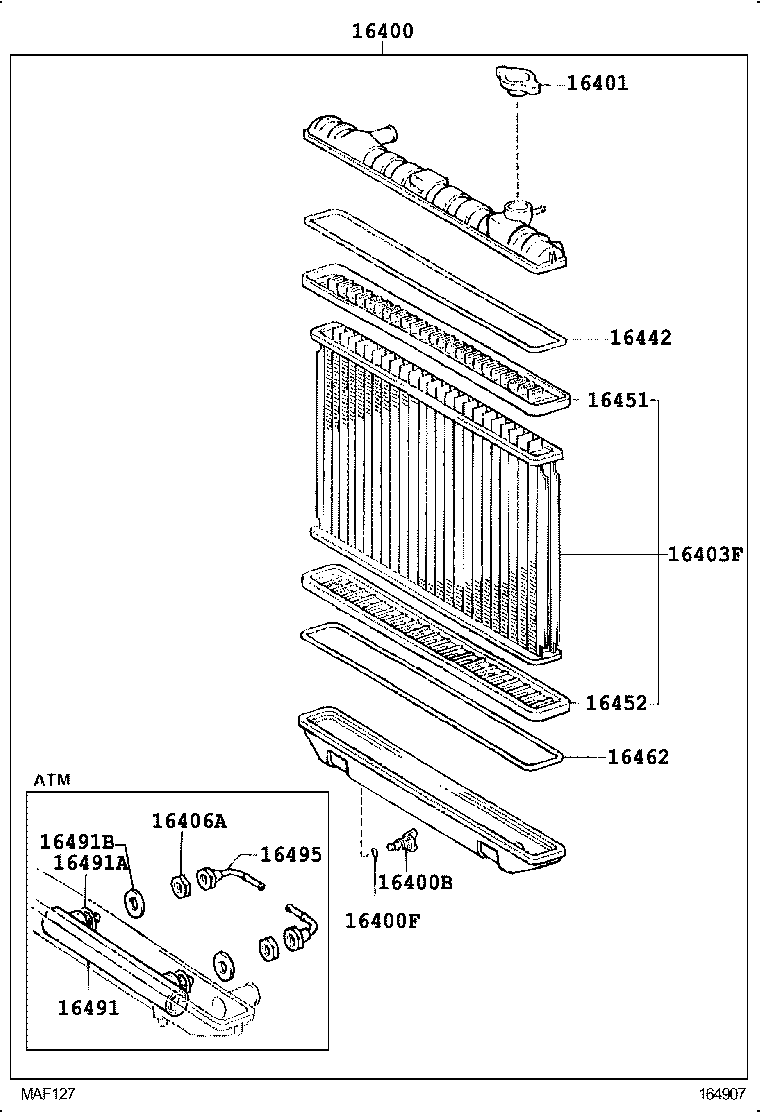

ILLUST NO. 3 OF 3(9110-9308)2LTHE ; (9308- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B081 |
2LT#..LS141 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2LT#..LS141 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2LT#..LS141 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2LT#..LS141 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-54790 |
2LT#..LS141 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
2LT#..LS141 |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-54790 |
2LT#..LS141 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-54790 |
2LT#..LS141 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-54790 |
2LT#..LS141 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-54790 |
2LT#..LS141 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
2LT#..LS141 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
2LT#..LS141 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
2LT#..LS141 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-54790 |
2LT#..LS141 |
2 | ||

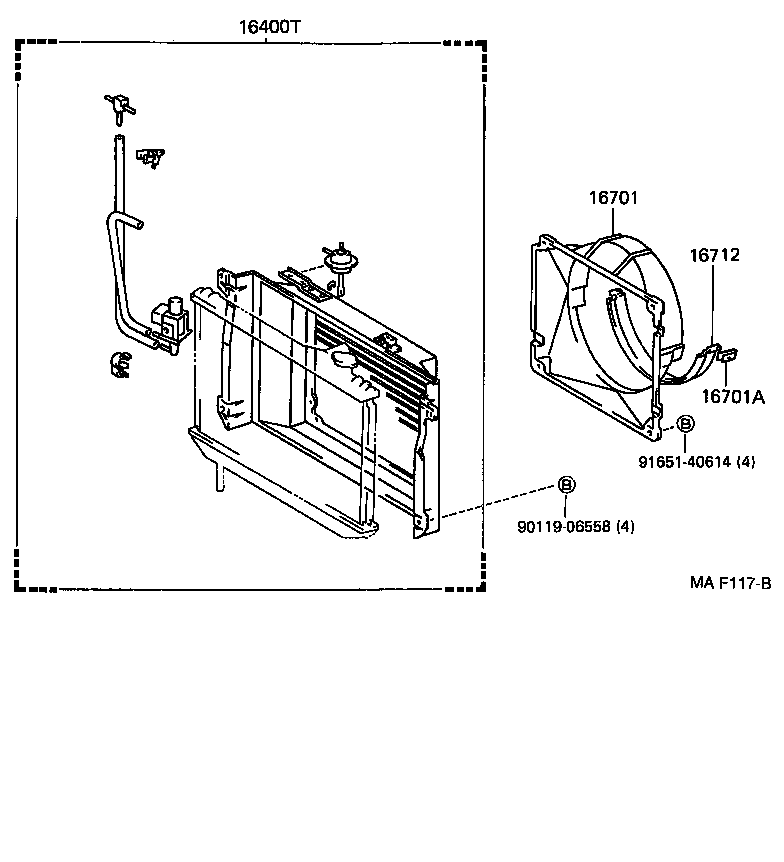

ILLUST NO. 2 OF 3(9110-9308)2LTHE ; (9308- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400T - SHUTTER ASSY, RADIATOR | ||||
| 53180-30031 |
2LT#..LS141 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54360 |
2LT#..LS141 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2LTHE..LS141 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54260 |
2LT#..LS141 |
1 | ||
| Common parts | ||||
| 90119-06558 | ||||
| 91651-40614 | ||||
