JZS179-AEPQF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS173,179

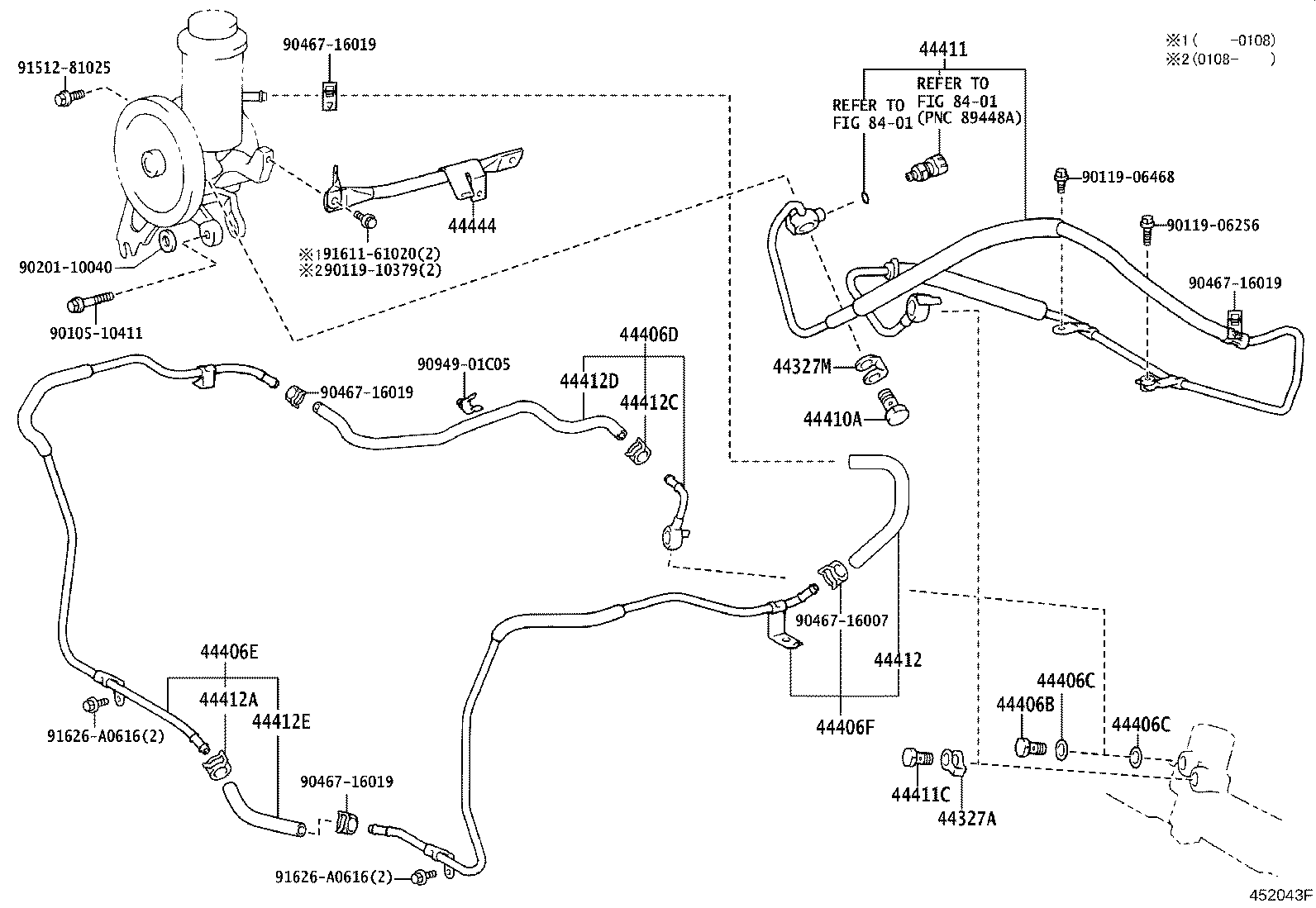

Click highlighted areas on diagram

diagram 44327A 44327M 44406B 44406C 44406C 44406D 44406E 44406F 44410A 44411 44411C 44412 44412A 44412C 44412D 44412E 44444 8401 8401 9010510411 9011906256 9011906468 9011910379 9020110040 9046716007 9046716019 9046716019 9046716019 9046716019 9094901C05 9151281025 9161161020 91626A0616 91626A0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

JZS17#

 1
44327-30030

JKS175,JZS17#

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JKS175,JZS17#

 1
44327-30040

JZS17#

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
96341-11703

JZS171..TWT;JKS175,JZS173,175,177,179,UZS17#

 1
90401-17005

JZS171..TWT;JKS175,JZS173,175,177,179,UZS17#

 1
96341-11703

JZS173,179;JZS171,175,177,UZS17#..D4,HTWC,TWT

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZS173,179;JZS171,175..D4,TWT

 2
90430-17007

JZS171..TWT;JKS175,JZS173,175,179

 2
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZS173,179;JZS171,175..D4,TWT

 2
90430-17007

JZS171..TWT;JKS175,JZS173,175,179

 2
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-30310

JZS173,179

 1
44406-30340

JZS173,179

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-30320

JZS173,179

 1
44406-30350

JZS173,179

 1
44406F - TUBE SUB-ASSY, RETURN, NO.3
44406-30330

JZS173,179

 1
44406-30330

JZS173,179

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

JZS171,173,175,179

 1
90401-16034

JKS175,JZS171,173,175,179

 1
44411 - HOSE, PRESSURE FEED
44411-30620

JZS173,179

 1
44411-30610

JZS173,179

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

JZS171,173,175,179

 1
96341-41603

JKS175,JZS171,173,175,179

 1
44412 - HOSE, RETURN
44412-30100

JZS173,179

 1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90467-16007

JZS173,179

 1
44412C - CLAMP(FOR RETURN HOSE)
90467-16007

JZS173,179

 1
44412D - HOSE, RETURN, NO.1
44412-30080

JZS173,179

 1
44412E - HOSE, RETURN, NO.2
44412-30090

JZS173,179

 1
44444 - STAY, PUMP, REAR
44444-51010

JZS173,179

 1
44444-51010

JZS171,173,179..TWC

 1
Common parts
90105-10411
90119-06256
90119-06468
90119-10379
90201-10040
90467-16007
90467-16019
90949-01C05
91512-81025
91611-61020
91626-A0616
Linked diagrams
8401
