Toyota Crown/crown majesta JZS177 HEATING & AIR CONDITIONING - WATER PIPING

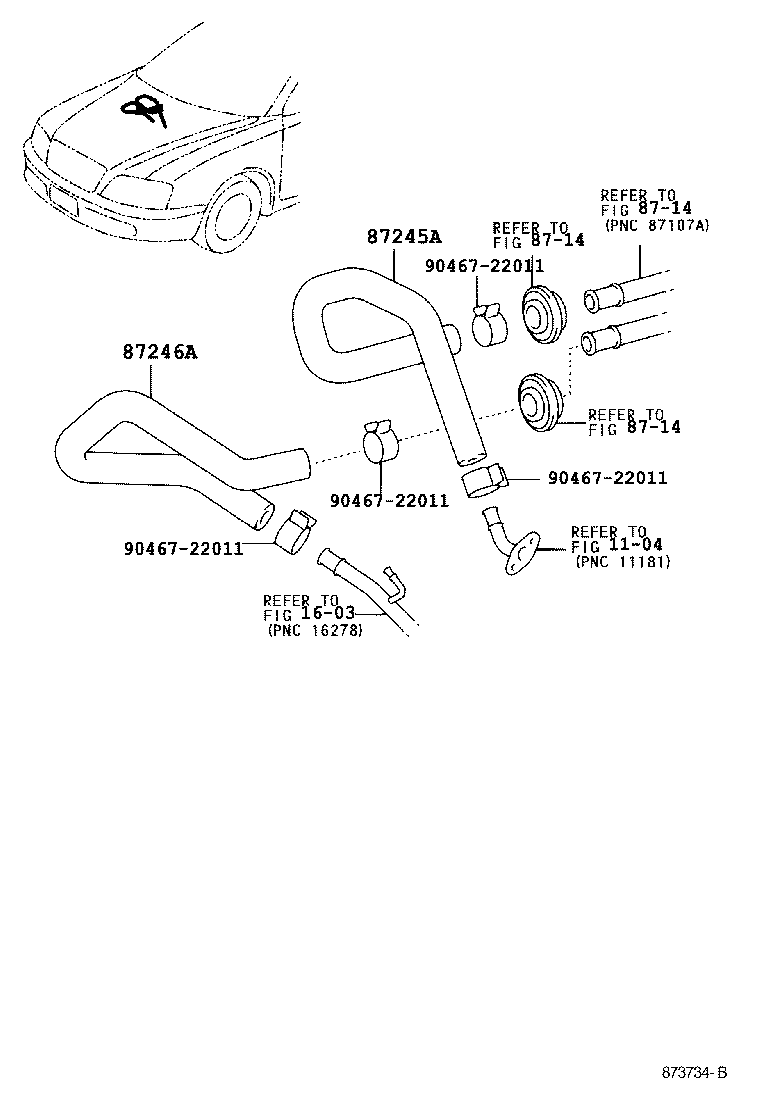

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3F480	JZS177	09/1999 - 08/2001	1
87245-3F710	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F710	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-3F480	JZS177	08/2001 - 06/2004	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F720	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F490	JZS177	09/1999 - 08/2001	1
87245-3F490	JZS177	08/2001 - 06/2004	1
87245-3F720	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
Common parts
90467-22011
Linked diagrams
1104
1603
8714

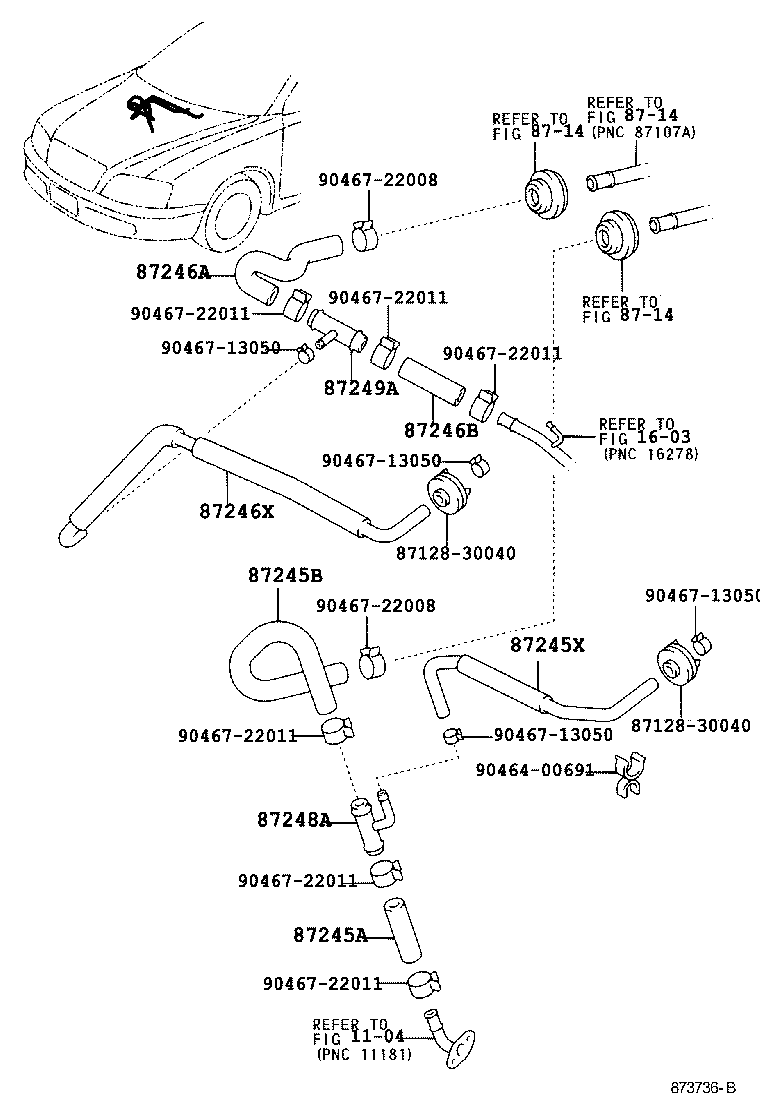

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3F480	JZS177	09/1999 - 08/2001	1
87245-3F710	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F710	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-3F480	JZS177	08/2001 - 06/2004	1
87245B - HOSE, HEATER WATER, INLET B
87245-3F700	JZS177	09/1999 - 08/2001	1
87245-3F700	JZS177	08/2001 - 06/2004	1
87245X - HOSE, HEATER WATER
87242-30150	JZS177	09/1999 - 08/2001	1
87242-30150	JZS177	08/2001 - 06/2004	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F720	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F490	JZS177	09/1999 - 08/2001	1
87245-3F490	JZS177	08/2001 - 06/2004	1
87245-3F720	JZS177 ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3F710	JZS177	08/2001 - 06/2004	1
87245-3F710	JZS177	09/1999 - 08/2001	1
87246X - HOSE, HEATER WATER
87246-30380	JZS177	09/1999 - 08/2001	1
87246-30380	JZS177	08/2001 - 06/2004	1
87248A - PIPE, HEATER WATER INLET, A
87248-30390	JZS171,173,177,179,UZS17#	09/1999 - 08/2001	1
87248-30390	JZS177;JZS171,173,179,UZS17#..HTWC,TWC,TWT	08/2001 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-30400	GS171,JZS17#	09/1999 - 08/2001	1
87248-30400	GS171,JKS175,JZS17#	08/2001 - 12/2999	1
Common parts
87128-30040
90464-00691
90467-13050
90467-22008
90467-22011
Linked diagrams
1104
1603
8714

JZS177-CEAZH (1999)
