JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 1 OF 3(9909- )JZS177,UZS17#
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30240 |
JZS177,UZS17# |
1 | ||
| 55843-30240 |
JZS177,UZS17# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30210 |
GS171,JZS17#,UZS17# |
1 | ||
| 55844-30210 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30210 |
GS171,JZS17#,UZS17# |
1 | ||
| 55845-30210 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-30160 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55847-30160 |
GS171,JZS17#,UZS17# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30230 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87211-30230 |
GS171,JZS17#,UZS17# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30240 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87211-30240 |
GS171,JZS17#,UZS17# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-30250 |
GS171,JZS17#,UZS17# |
1 | ||
| 87211-30250 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30400 |
JZS177,UZS171,175 |
1 | ||
| 87212-30400 |
JZS177,UZS171,175 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30330 |
JZS177,UZS171,175 |
1 | ||
| 87213-30330 |
JZS177,UZS171,175 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-30270 |
JZS177,UZS17# |
1 | ||
| 87215-30270 |
JZS177,UZS17# |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-30260 |
JZS177,UZS17# |
1 | ||
| 87216-30260 |
JZS177,UZS17# |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030A2 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 87217-50030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 87217-50030B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030A2 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030A2 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 87217-50030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
2 | ||
| 87217-50030B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 87217-50030A2 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-0169322 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
4 | ||
| 90950-01693B5 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-01693A2 |
JZS177,UZS17# IVORY,TRIM0# |
4 | ||
| 90950-01693A2 |
JZS177,UZS17# IVORY,TRIM0# |
4 | ||
| 90950-01693B5 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-0169322 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
4 | ||
| 90950-01693B5 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
4 | ||
| 90950-01693A2 |
JZS177,UZS17# IVORY,TRIM0# |
4 | ||
| 90950-01693A2 |
JZS177,UZS17# IVORY,TRIM0# |
4 | ||
| 90950-01693B5 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
4 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90164-60002 | ||||
| 90467-0604922 | ||||
| 90467-06124 | ||||
| 91631-J0612 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 3(9909- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22130 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88790-22130 |
GS171,JZS17#,UZS17# |
1 | ||
| 88790-22131 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88790-22140 |
GS171,JZS17#,UZS17# |
1 | ||
| 88790-22140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-30030 |
GS171,JZS17#,UZS17# |
1 | ||
| 88669-30030 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Linked diagrams | ||||
| 8416 | ||||

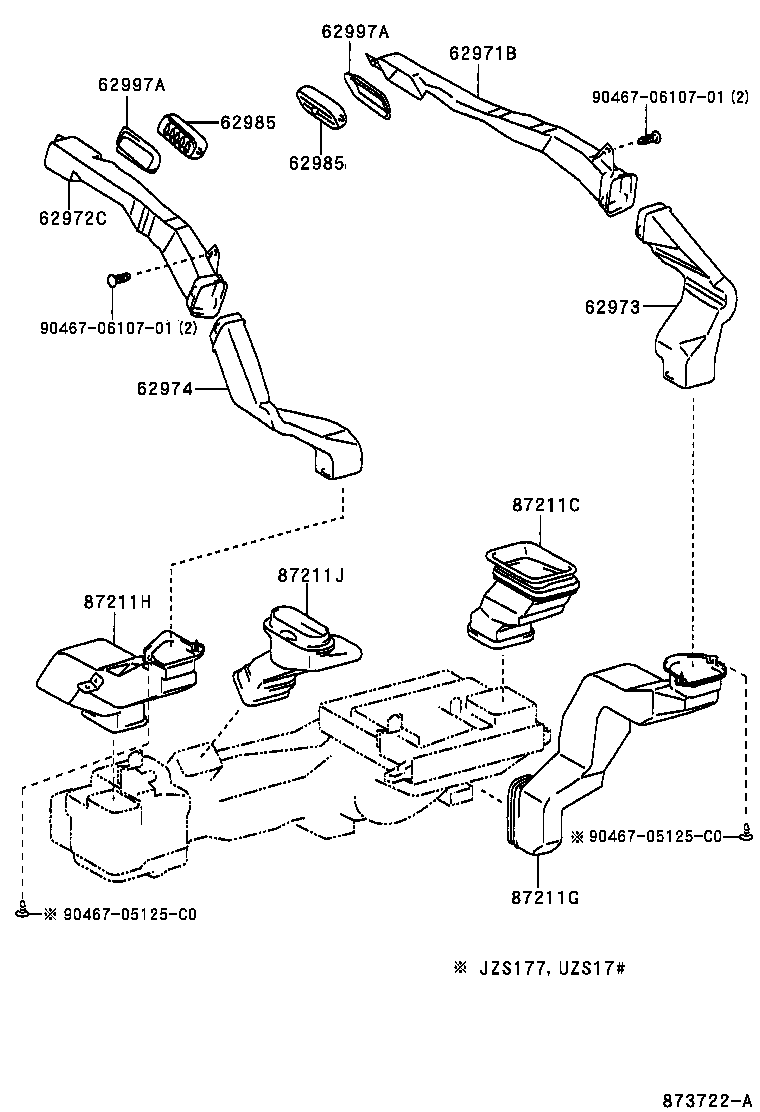

ILLUST NO. 2 OF 3(9909- )
ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62971B - DUCT, ROOF SIDE AIR, NO.1 RH | ||||
| 62971-30150 |
JZS177,UZS17# |
1 | ||
| 62971-30150 |
JZS177,UZS17# |
1 | ||
| 62972C - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62972-30150 |
JZS177,UZS17# |
1 | ||
| 62972-30150 |
JZS177,UZS17# |
1 | ||
| 62973 - DUCT, ROOF SIDE AIR, NO.2 RH | ||||
| 62973-30090 |
JZS177,UZS17# |
1 | ||
| 62973-30090 |
JZS177,UZS17# |
1 | ||
| 62974 - DUCT, ROOF SIDE AIR, NO.2 LH | ||||
| 62974-30090 |
JZS177,UZS17# |
1 | ||
| 62974-30090 |
JZS177,UZS17# |
1 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060A1 |
GS171,JZS17#,UZS17#..SED IVORY,TRIM0# |
2 | ||
| 62985-30060B3 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23 |
2 | ||
| 62985-30060B3 |
GS171,JZS17#,UZS17#..SED MD.CHARCOAL,TRIM1# |
2 | ||
| 62985-30060A1 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 62985-30060B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-30060A1 |
GS171,JZS17#,UZS17#..SED IVORY,TRIM0# |
2 | ||
| 62985-30060B3 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),MEDIUM CHARCOAL,TRIM23 |
2 | ||
| 62985-30060B3 |
GS171,JZS17#,UZS17#..SED MD.CHARCOAL,TRIM1# |
2 | ||
| 62985-30060A1 |
JZS177,UZS17# IVORY,TRIM0# |
2 | ||
| 62985-30060B3 |
JZS177,UZS17# MD.CHARCOAL,TRIM1# |
2 | ||
| 62997A - COVER, QUARTER VENT HOLE | ||||
| 62997-30030 |
JZS177,UZS175..A |
2 | ||
| 62997-30030 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) |
2 | ||
| 62997A - COVER, QUARTER VENT HOLE | ||||
| 62997-30030 |
JZS177,UZS175..A |
2 | ||
| 62997-30030 |
GS171,JZS17#,UZS175..SED..(A,ATH,ATHG,ATHV,ROY,ROYEX) |
2 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-30260 |
JZS177,UZS17# |
1 | ||
| 87211-30260 |
JZS177,UZS17# |
1 | ||
| 87211G - DUCT, AIR, NO.5 | ||||
| 87211-30270 |
JZS177,UZS17# |
1 | ||
| 87211-30270 |
JZS177,UZS17# |
1 | ||
| 87211H - DUCT, AIR, NO.6 | ||||
| 87211-30280 |
JZS177,UZS17# |
1 | ||
| 87211-30280 |
JZS177,UZS17# |
1 | ||
| 87211J - DUCT, AIR, NO.7 | ||||
| 87211-30290 |
JZS177,UZS17# |
1 | ||
| 87211-30290 |
JZS177,UZS17# |
1 | ||
| Common parts | ||||
| 90467-05125C0 | ||||
| 90467-0610701 | ||||
