JZS177-CEAZH (1999)
Toyota Crown/Crown Majesta

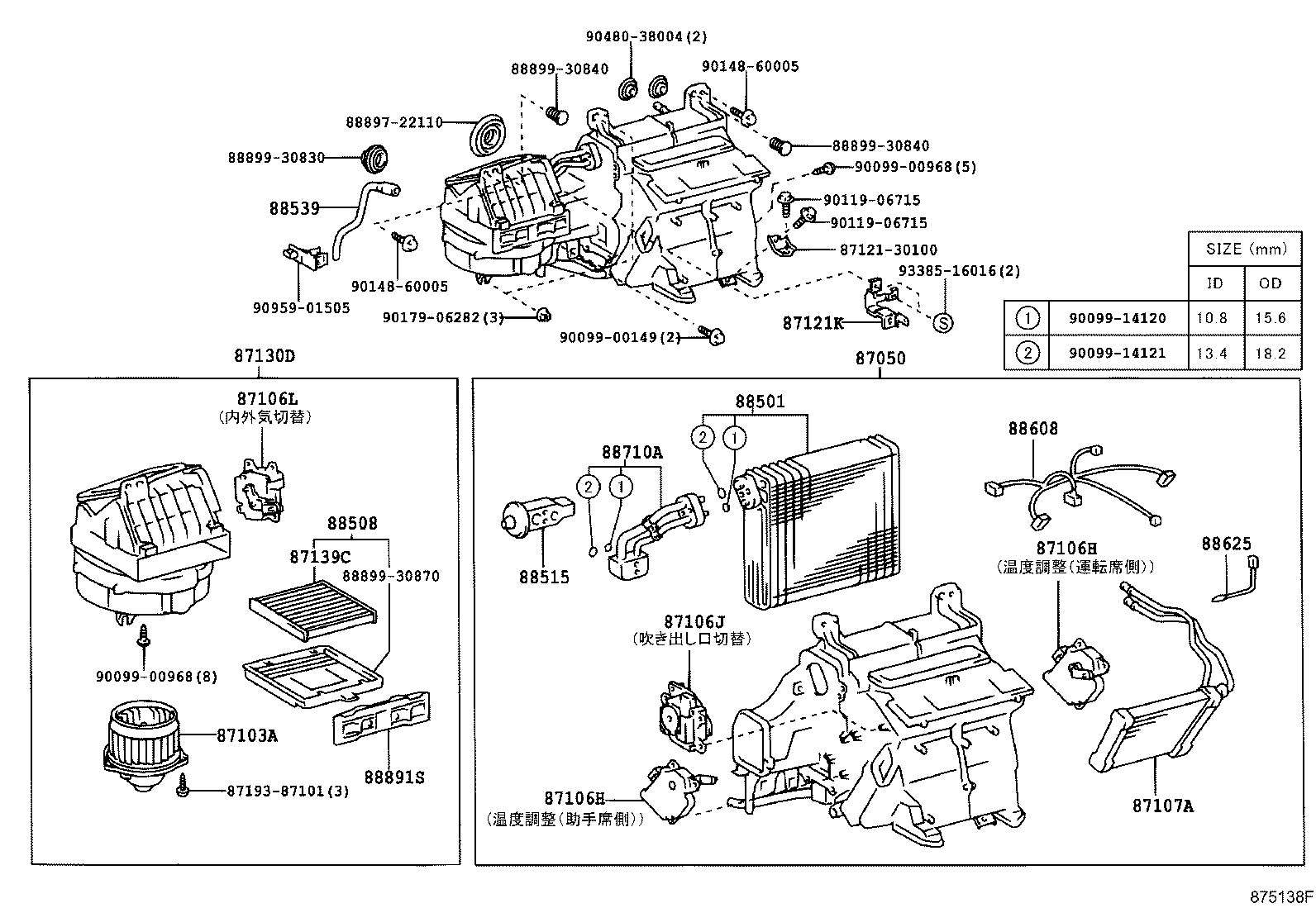

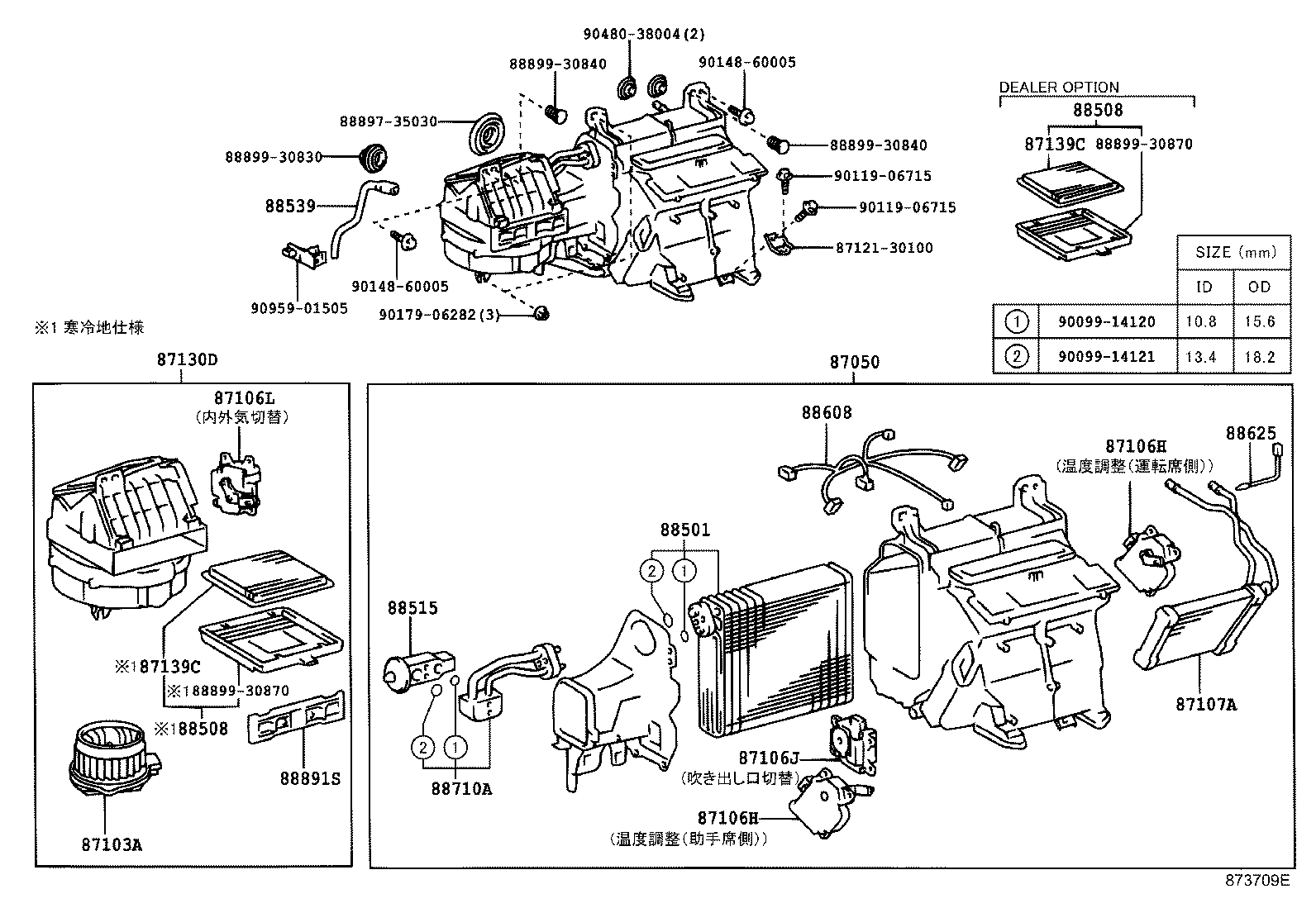

ILLUST NO. 1 OF 2(9909-0108)JZS177,UZS17#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30080 |
JZS177,UZS17# |
1 | ||
| 87050-30060 |
JZS177,UZS17# |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-30440 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87103-30410 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30340 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30340 |
GS171,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30341 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30350 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30350 |
GS171,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30351 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30340 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30340 |
GS171,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30341 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30350 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30350 |
GS171,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30351 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-30361 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87106-30361 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30380 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106-30380 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30510 |
JZS177,UZS17# |
1 | ||
| 87107-30510 |
JZS177,UZS17# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30730 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-30720 |
JZS177,UZS17# |
1 | ||
| 87130-30770 |
JZS177,UZS17# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48030 |
GS171,JZS17#,UZS17# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48030 |
GS171,JZS17#,UZS17# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A020 |
GS171,JZS17#,UZS17# |
1 | ||
| 88501-3A050 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-48020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88508-48020 |
GS171,JZS17#,UZS17# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-48020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88508-48020 |
GS171,JZS17#,UZS17# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30690 |
JZS17#,UZS17# |
1 | ||
| 88515-30690 |
JKS175,JZS17#,UZS17# |
1 | ||
| 88515-22260 |
JZS17#,UZS17# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30810 |
JZS177 |
1 | ||
| 88539-30810 |
JZS177 |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-3A061 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88608-3A060 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88608-3A060 |
GS171,JZS17#,UZS17# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A120 |
GS171,JZS17#,UZS17# |
1 | ||
| 88625-3A120 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A140 |
JZS177,UZS17# |
1 | ||
| 88710-3A140 |
JZS177,UZS17# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-30680 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88891-30680 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 87121-30100 | ||||
| 88897-35030 | ||||
| 88899-30830 | ||||
| 88899-30840 | ||||
| 88899-30870 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06715 | ||||
| 90148-60005 | ||||
| 90179-06282 | ||||
| 90480-38004 | ||||
| 90959-01505 | ||||
ILLUST NO. 2 OF 2(9909-0108)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134D - FAN, BLOWER, NO.2 | ||||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508C - FILTER SUB-ASSY, AIR | ||||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88892V - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23 |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..SED BLACK,TRIM0#,1# |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 88688-30230 | ||||
| 90041-79141 | ||||
| 90093-00610 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90179-06162 | ||||
| 90468-04177 | ||||
| 91111-50614 | ||||
ILLUST NO. 2 OF 2(9909-0108)
ﾘﾔ--ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134D - FAN, BLOWER, NO.2 | ||||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508C - FILTER SUB-ASSY, AIR | ||||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A440 |
JZS177,UZS17# |
1 | ||
| 88576-3A440 |
JZS177,UZS17# |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-3A450 |
JZS177,UZS17# |
1 | ||
| 88576-3A450 |
JZS177,UZS17# |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88892V - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23 |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..SED BLACK,TRIM0#,1# |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 88688-30230 | ||||
| 90041-79141 | ||||
| 90093-00610 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90179-06162 | ||||
| 90468-04177 | ||||
| 91111-50614 | ||||
ILLUST NO. 1 OF 2(0108- )JZS177,UZS17#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30080 |
JZS177,UZS17# |
1 | ||
| 87050-30060 |
JZS177,UZS17# |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-30440 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87103-30410 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30340 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30340 |
GS171,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30341 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30350 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30350 |
GS171,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30351 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-30340 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30340 |
GS171,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30341 |
GS171,JKS175,JZS17#,UZS17# 運転席側 |
1 | ||
| 87106-30350 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30350 |
GS171,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106-30351 |
GS171,JKS175,JZS17#,UZS17# 助手席側 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-30361 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87106-30361 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30380 |
GS171,JZS17#,UZS17# |
1 | ||
| 87106-30380 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30510 |
JZS177,UZS17# |
1 | ||
| 87107-30510 |
JZS177,UZS17# |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-53020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30730 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-30720 |
JZS177,UZS17# |
1 | ||
| 87130-30770 |
JZS177,UZS17# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48030 |
GS171,JZS17#,UZS17# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A020 |
GS171,JZS17#,UZS17# |
1 | ||
| 88501-3A050 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-48020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88508-48020 |
GS171,JZS17#,UZS17# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30690 |
JZS17#,UZS17# |
1 | ||
| 88515-30690 |
JKS175,JZS17#,UZS17# |
1 | ||
| 88515-22260 |
JZS17#,UZS17# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30810 |
JZS177 |
1 | ||
| 88539-30810 |
JZS177 |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-3A061 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88608-3A060 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88608-3A060 |
GS171,JZS17#,UZS17# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A120 |
GS171,JZS17#,UZS17# |
1 | ||
| 88625-3A120 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A140 |
JZS177,UZS17# |
1 | ||
| 88710-3A140 |
JZS177,UZS17# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-30680 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 88891-30680 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 87121-30100 | ||||
| 87193-87101 | ||||
| 88897-22110 | ||||
| 88899-30830 | ||||
| 88899-30840 | ||||
| 88899-30870 | ||||
| 90099-00149 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06715 | ||||
| 90148-60005 | ||||
| 90179-06282 | ||||
| 90480-38004 | ||||
| 90959-01505 | ||||
| 93385-16016 | ||||
ILLUST NO. 2 OF 2(0108- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134D - FAN, BLOWER, NO.2 | ||||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508C - FILTER SUB-ASSY, AIR | ||||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88892V - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23 |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..SED BLACK,TRIM0#,1# |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 88688-30230 | ||||
| 90041-79141 | ||||
| 90093-00610 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90179-06308 | ||||
| 90468-04177 | ||||
| 91111-50614 | ||||
ILLUST NO. 2 OF 2(0108- )
ﾘﾔ--ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87030-30040 |
JZS177,UZS175..A |
1 | ||
| 87030-30030 |
JZS177,UZS17# ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87104-30520 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87106-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134D - FAN, BLOWER, NO.2 | ||||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 87134-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A041 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88501-3A040 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508C - FILTER SUB-ASSY, AIR | ||||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88508-30110 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88515-30730 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,C,ROY,ROYG) |
1 | ||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 88520-30010 |
JZS171,175,177,179,UZS17#..SED..(A,ATHG,ATHV,C,ROY,ROYG) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88539-30850 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A440 |
JZS177,UZS17# |
1 | ||
| 88576-3A440 |
JZS177,UZS17# |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-3A450 |
JZS177,UZS17# |
1 | ||
| 88576-3A450 |
JZS177,UZS17# |
1 | ||
| 88576G - DUCT, COOLER AIR, NO.3 | ||||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88576-3A480 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88608-3A070 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88630-30420 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88635-30450 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88710-3A230 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88892V - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM06,23 |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 88891-30690C0 |
GS171,JZS17#,UZS17#..SED BLACK,TRIM0#,1# |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| 88931-30090 |
GS171,JZS17#,UZS17#..SED |
1 | ||
| Common parts | ||||
| 88688-30230 | ||||
| 90041-79141 | ||||
| 90093-00610 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90179-06308 | ||||
| 90468-04177 | ||||
| 91111-50614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
