JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

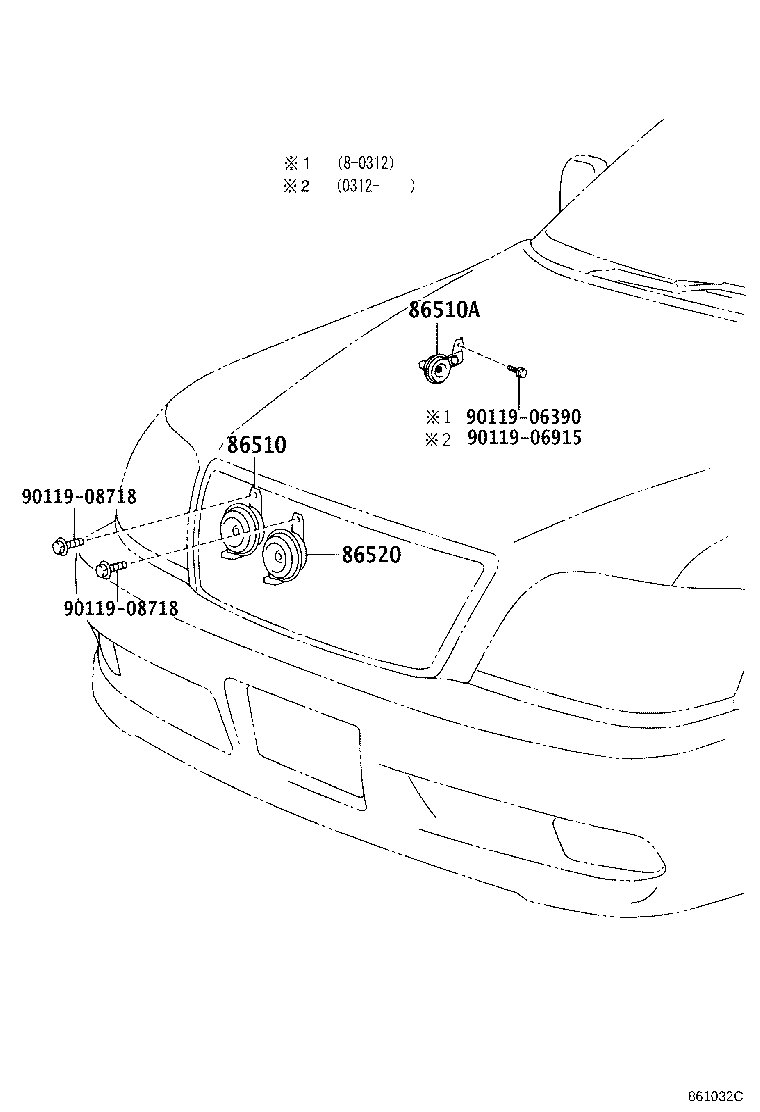

Click highlighted areas on diagram

diagram 86510 86510A 86520 9011906390 9011906915 9011908718 9011908718
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-28080

GS171,JZS17#,UZS17#

MARUKO

 1
86510-28090

GS171,JKS175,JZS17#,UZS17#

DENSO

 1
86510-28080

GS171,JKS175,JZS17#,UZS17#

MARUKO

 1
86510-28090

GS171,JZS17#,UZS17#

DENSO

 1
86510A - HORN ASSY, SECURITY
86510-30630

JZS177,UZS17#

 1
86520 - HORN ASSY, LOW PITCHED
86520-28050

GS171,JKS175,JZS17#,UZS17#

MARUKO

 1
86520-28080

GS171,JZS17#,UZS17#

DENSO

 1
86520-28050

GS171,JZS17#,UZS17#

MARUKO

 1
86520-28080

GS171,JKS175,JZS17#,UZS17#

DENSO

 1
Common parts
90119-06390
90119-06915
90119-08718
