Toyota Crown/crown majesta JZS177 ANTENNA

JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

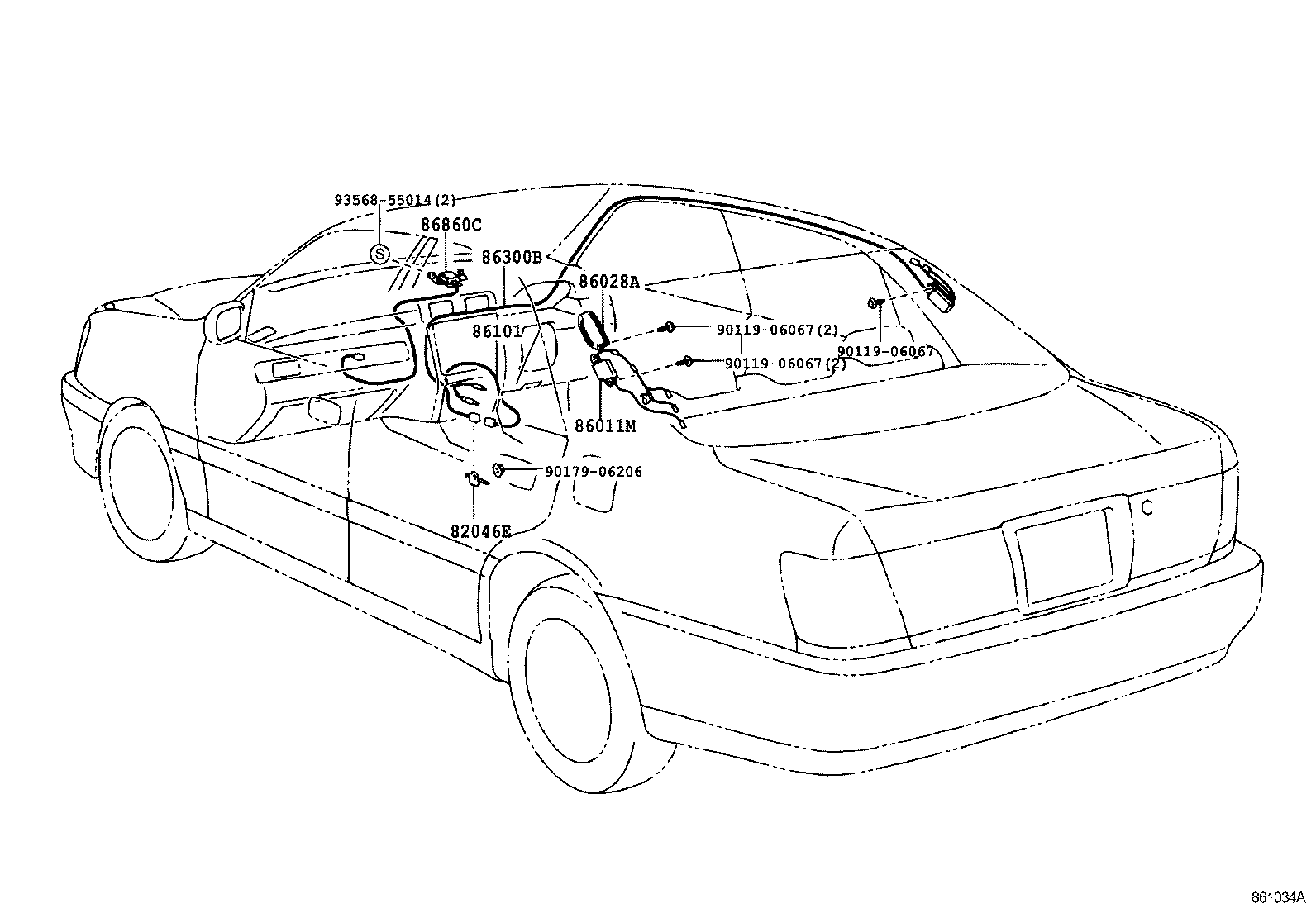

Click highlighted areas on diagram

Part #	Description	Period	Qty
82046E - WIRE SUB-ASSY, BODY GROUND
82046-30090	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
82046-30090	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
86011M - FILTER, NOISE
90980-05337	JZS177,UZS17#	08/2001 - 06/2004	1
90980-05337	JZS177,UZS17#	09/1999 - 08/2001	1
86028A - BRACKET SUB-ASSY, TELEVISION
86028-30010	JZS177,UZS17#	08/2001 - 06/2004	1
86028-30010	JZS177,UZS17#	09/1999 - 08/2001	1
86101 - CORD SUB-ASSY, ANTENNA
86101-30800	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
86101-30800	JZS177,UZS17#	08/2001 - 06/2004	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-3A190	JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1999 - 08/2001	1
86300-3A190	JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/2001 - 06/2004	1
86300-3A200	JZS177,UZS17#	09/1999 - 08/2001	1
86300-3A200	JZS177,UZS17#	08/2001 - 06/2004	1
86860C - ANTENNA ASSY, NAVIGATION
86860-30141	GS171,JZS17#,UZS17#	04/2000 - 08/2001	1
86860-30142	JZS177,UZS17#	08/2001 - 06/2004	1
86860-30140	JZS17#,UZS17#	09/1999 - 04/2000	1
Common parts
90119-06067
90179-06206
93568-55014

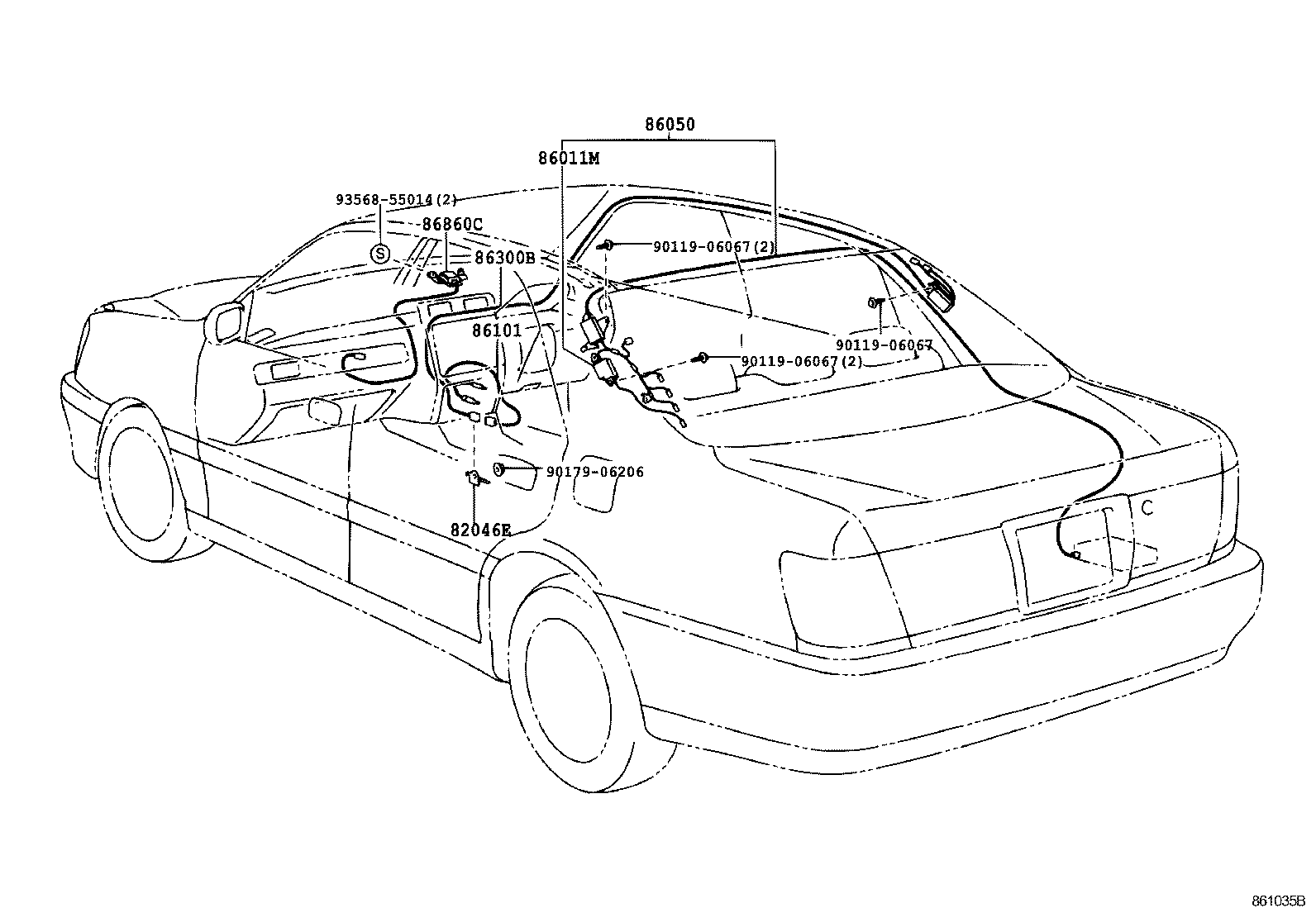

Click highlighted areas on diagram

ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)

Part #	Description	Period	Qty
82046E - WIRE SUB-ASSY, BODY GROUND
82046-30090	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
82046-30090	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
86011M - FILTER, NOISE
90980-05337	JZS177,UZS17#	08/2001 - 06/2004	1
90980-05337	JZS177,UZS17#	09/1999 - 08/2001	1
86050 - ANTENNA ASSY, TELEVISION
86050-30070	JZS177,UZS17#	08/2001 - 06/2004	1
86050-30100	JZS177,UZS17# ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ)	08/2001 - 06/2004	1
86050-30070	JZS177,UZS17#	09/1999 - 08/2001	1
86101 - CORD SUB-ASSY, ANTENNA
86101-30800	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
86101-30800	JZS177,UZS17#	08/2001 - 06/2004	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-3A190	JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1999 - 08/2001	1
86300-3A190	JZS177,UZS17# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/2001 - 06/2004	1
86300-3A200	JZS177,UZS17#	09/1999 - 08/2001	1
86300-3A200	JZS177,UZS17#	08/2001 - 06/2004	1
86860C - ANTENNA ASSY, NAVIGATION
86860-30141	GS171,JZS17#,UZS17#	04/2000 - 08/2001	1
86860-30142	JZS177,UZS17#	08/2001 - 06/2004	1
86860-30140	JZS17#,UZS17#	09/1999 - 04/2000	1
Common parts
90119-06067
90179-06206
93568-55014
