JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

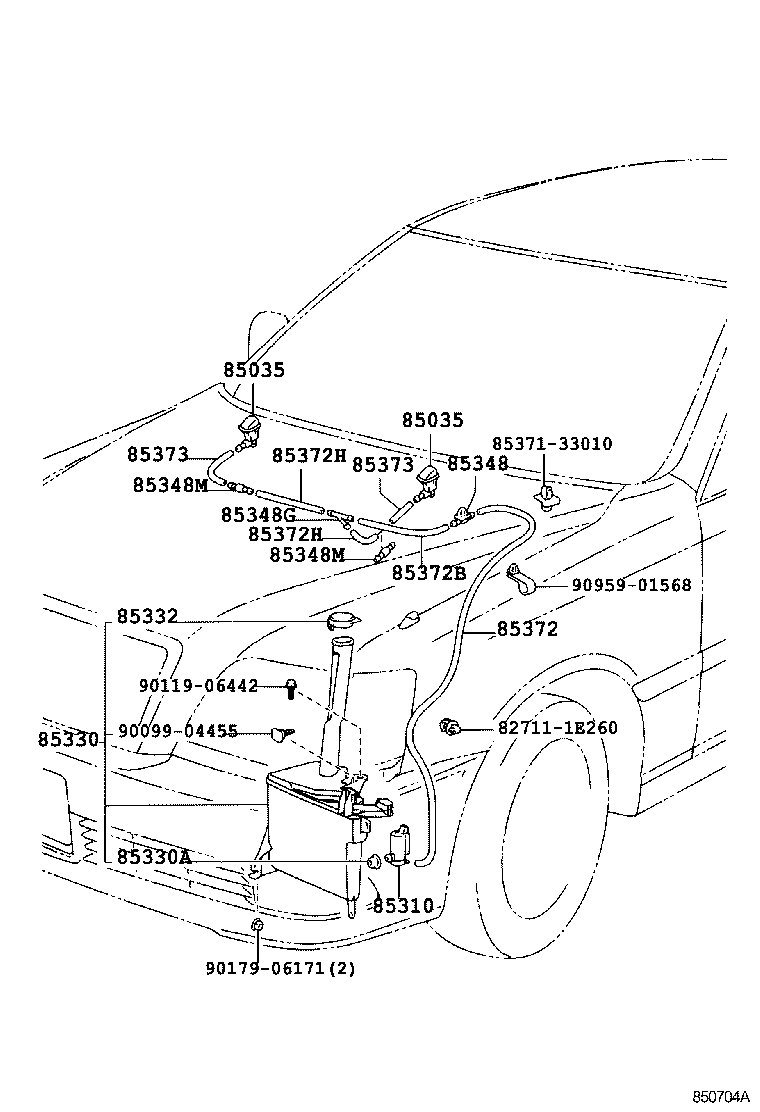

Click highlighted areas on diagram

diagram 827111E260 85035 85035 85310 85330 85330A 85332 85348 85348G 85348M 85348M 8537133010 85372 85372B 85372H 85372H 85373 85373 9009904455 9011906442 9017906171 9095901568
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30050C0

JZS177,UZS17#

BLACK,202

 2
85381-30050B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85381-30050A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-30050D0

JZS177,UZS17#

ROSE RED MC.,3M9

 2
85381-30050J0

JZS177,UZS17#

DK.BLUE MC.,8L4

 2
85381-30050A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-30050G0

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 2
85381-30050J1

JZS177,UZS17#

DARK BLUE MC.,8P8

 2
85381-43010C0

JZS177,UZS17#

BLACK,202 ,KA3

 2
85381-30050D1

JZS177,UZS17#

BORDEAUX MC.,3P2

 2
85381-30050B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85381-30050C0

JZS177,UZS17#

BLACK,202 ,KA3

 2
85385-51010G2

JZS177,UZS17#

BLACKISH GREEN MC.,6R5

 2
85381-30050G0

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 2
85381-50030D0

JZS177,UZS17#

BORDEAUX MC.,3P2

 2
85385-51010A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-43010B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85385-51010J2

JZS177,UZS17#

DARK BLUE MC.,8P8

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30050C0

JZS177,UZS17#

BLACK,202

 2
85381-30050B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85381-30050A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-30050D0

JZS177,UZS17#

ROSE RED MC.,3M9

 2
85381-30050J0

JZS177,UZS17#

DK.BLUE MC.,8L4

 2
85381-30050A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-30050G0

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 2
85381-30050J1

JZS177,UZS17#

DARK BLUE MC.,8P8

 2
85381-43010C0

JZS177,UZS17#

BLACK,202 ,KA3

 2
85381-30050D1

JZS177,UZS17#

BORDEAUX MC.,3P2

 2
85381-30050B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85381-30050C0

JZS177,UZS17#

BLACK,202 ,KA3

 2
85385-51010G2

JZS177,UZS17#

BLACKISH GREEN MC.,6R5

 2
85381-30050G0

JZS177,UZS17#

BLACKISH GREEN MC.CC,6R5

 2
85381-50030D0

JZS177,UZS17#

BORDEAUX MC.,3P2

 2
85385-51010A0

JZS177,UZS17#

WHITE PEARL CS.,062

 2
85381-43010B0

JZS177,UZS17#

SILVER ME.,1C0

 2
85385-51010J2

JZS177,UZS17#

DARK BLUE MC.,8P8

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10280

GS171,JZS17#,UZS17#..SED

 1
85330-10280

GS171,JKS175,JZS17#,UZS17#..SED

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-30340

JZS177,UZS17#

 1
85315-30340

JZS177,UZS17#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GS171,JZS17#,UZS17#

 1
90099-32089

GS171,JKS175,JZS17#,UZS17#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

GS171,JZS17#,UZS17#

 1
85316-26030

GS171,JKS175,JZS17#,UZS17#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-20800

JZS177,UZS17#

 1
85375-20800

JZS177,UZS17#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390

JZS177,UZS17#

 1
85348-14390

JZS177,UZS17#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

JZS177,UZS17#

 2
85375-10260

JZS177,UZS17#

 2
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

JZS177,UZS17#

 2
85375-10260

JZS177,UZS17#

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

JZS177,UZS17#

*H,L=1600

 1
90099-33803

JZS177,UZS17#

*H,L=1600

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33916

JZS177,UZS17#

*H,L=450

 1
90099-33916

JZS177,UZS17#

*H,L=450

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

JZS177,UZS17#

*H,L=70

 1
90099-33080

JZS177,UZS17#

*H,L=70

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

JZS177,UZS17#

*H,L=70

 1
90099-33080

JZS177,UZS17#

*H,L=70

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GS171,JZS17#,UZS17#

*H,L=200

 2
90099-33080

GS171,JKS175,JZS17#,UZS17#

*H,L=200

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GS171,JZS17#,UZS17#

*H,L=200

 2
90099-33080

GS171,JKS175,JZS17#,UZS17#

*H,L=200

 2
Common parts
82711-1E260
85371-33010
90099-04455
90119-06442
90179-06171
90959-01568
