JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

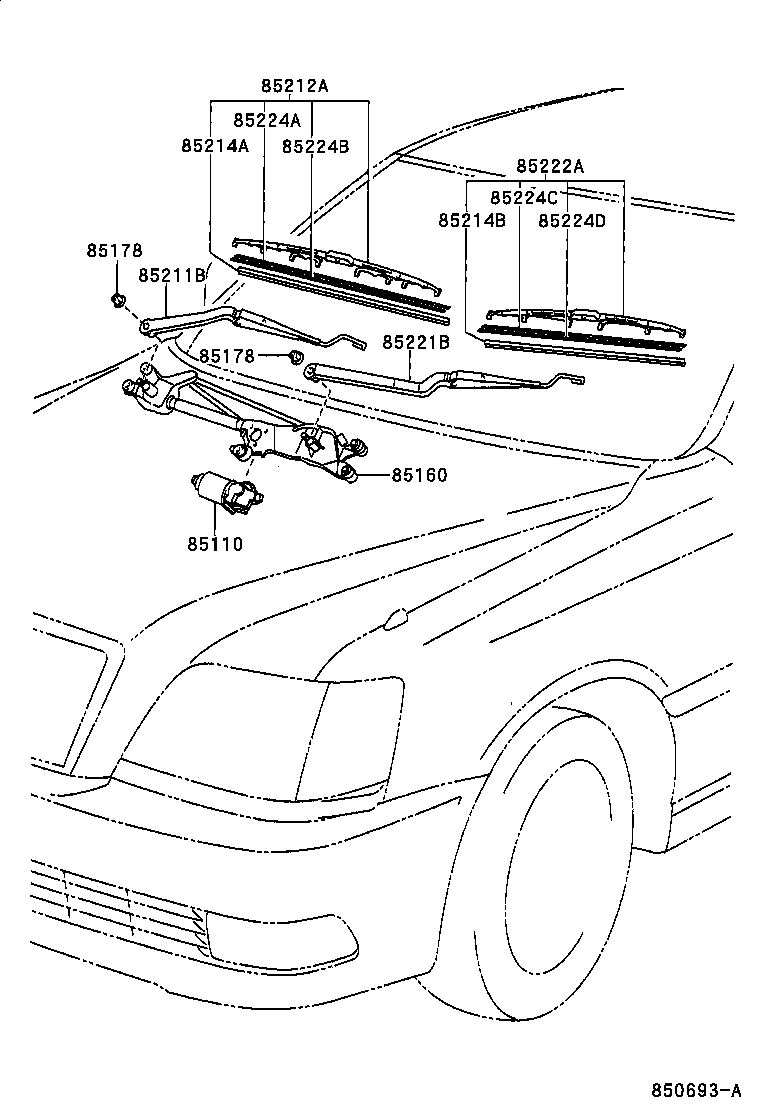

ILLUST NO. 1 OF 2(9909-0108)JZS177,UZS17#

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30450

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-30450

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-30440

JZS177,UZS17#

 1
85110-30440

JZS177,UZS17#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30530

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85150-30530

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85150-30490

JZS177,UZS17#

 1
85150-30490

JZS177,UZS17#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
90176-10005

GS171,JKS175,JZS17#,UZS17#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
90176-10005

GS171,JKS175,JZS17#,UZS17#

 2
85211B - ARM, FRONT WIPER, RH
85211-30600

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85211-30610

JZS177,UZS17#

 1
85211-30570

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85211-30560

JZS177,UZS17#

 1
85212A - BLADE, FR WIPER, RH
85212-30360

GS171,JZS17#,UZS17#

 1
85212-53010

GS171,JKS175,JZS17#,UZS17#

 1
85212-46010

JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS177,179,UZS17#

 1
85214A - RUBBER, WIPER, RH
85214-22410

GS171,JKS175,JZS17#,UZS17#

 1
85214-22410

GS171,JKS175,JZS17#,UZS17#

 1
85214-30350

GS171,JZS17#,UZS17#

 1
85214B - RUBBER, WIPER, LH
85214-48020

JZS177,UZS17#

 1
85214-30370

JZS177,UZS17#

 1
85221B - ARM, FRONT WIPER, LH
85221-30470

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85221-30510

JZS177,UZS17#

 1
85221-30500

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85221-30460

JZS177,UZS17#

 1
85222A - BLADE, FR WIPER, LH
85222-30550

JZS177,UZS17#

 1
85222-48030

JZS177,UZS17#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-33040

GS171,JZS17#,UZS17#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-33040

GS171,JZS17#,UZS17#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-35040

JZS177,UZS17#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-35040

JZS177,UZS17#

 1

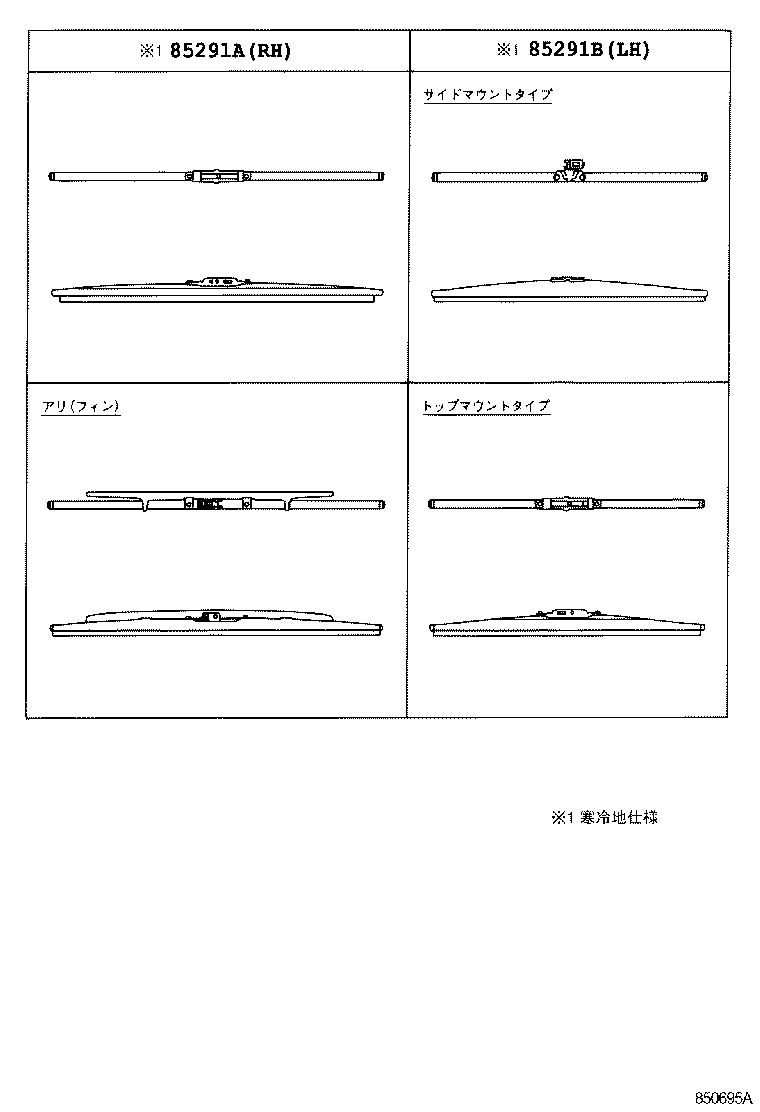

ILLUST NO. 2 OF 2(9909- )

Click highlighted areas on diagram

ｳｲﾝﾀ ﾌﾞﾚｰﾄﾞ

diagram 85291A 85291B
Part # Description Qty Price
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-33040

GS171,JZS17#,UZS17#

ｱﾘ(ﾌｲﾝ)

 1
85291-22100

GS171,JKS175,JZS17#,UZS17#

ｱﾘ(ﾌｲﾝ)

 1
85291-50030

GS171,JZS17#,UZS17#

 1
85291-22090

GS171,JKS175,JZS17#,UZS17#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-60020

GS171,JZS17#,UZS17#

ﾄﾂﾌﾟ ﾏｳﾝﾄ ﾀｲﾌﾟ

 1
85291-22080

GS171,JKS175,JZS17#,UZS17#

ｻｲﾄﾞ ﾏｳﾝﾄ ﾀｲﾌﾟ

 1
85291-33050

GS171,JKS175,JZS17#,UZS17#

ﾄｯﾌﾟ ﾏｳﾝﾄ ﾀｲﾌﾟ

 1
85291-30030

GS171,JZS17#,UZS17#

ｻｲﾄﾞ ﾏｳﾝﾄ ﾀｲﾌﾟ

 1

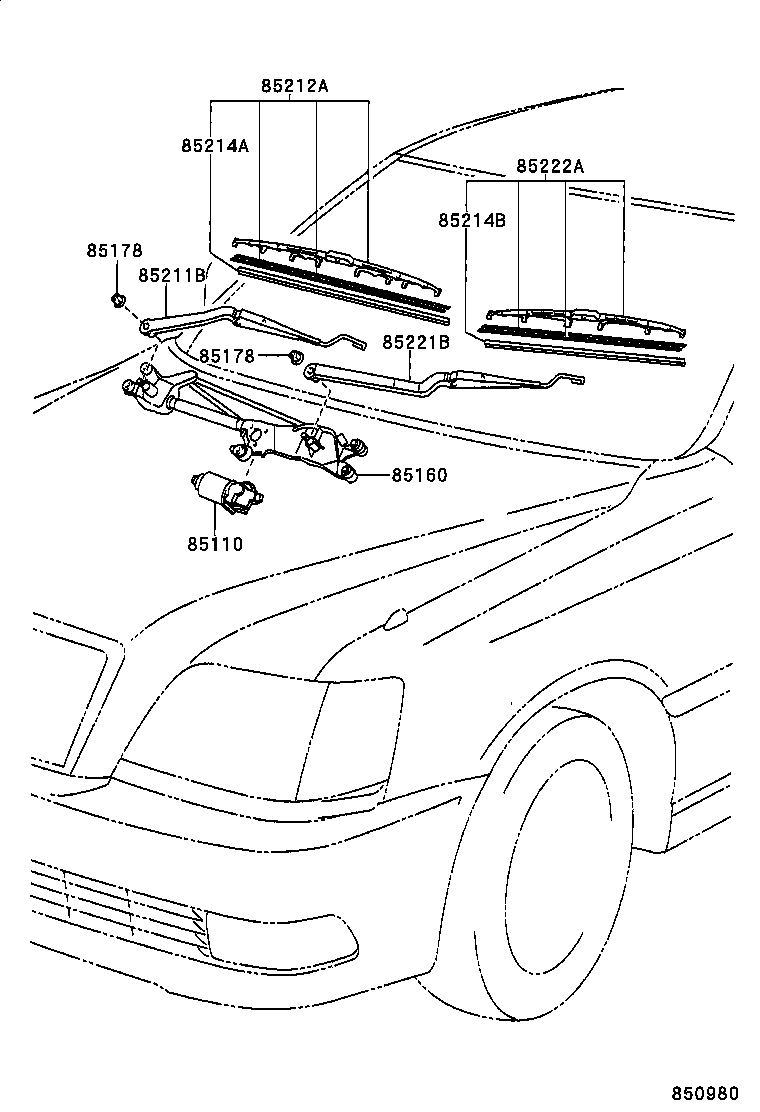

(0108- )JZS177,UZS17#

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30450

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-30450

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-30440

JZS177,UZS17#

 1
85110-30440

JZS177,UZS17#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30530

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85150-30530

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85150-30490

JZS177,UZS17#

 1
85150-30490

JZS177,UZS17#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
90176-10005

GS171,JKS175,JZS17#,UZS17#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
90176-10005

GS171,JKS175,JZS17#,UZS17#

 2
85211B - ARM, FRONT WIPER, RH
85211-30600

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85211-30610

JZS177,UZS17#

 1
85211-30570

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85211-30560

JZS177,UZS17#

 1
85212A - BLADE, FR WIPER, RH
85212-30360

GS171,JZS17#,UZS17#

 1
85212-53010

GS171,JKS175,JZS17#,UZS17#

 1
85212-46010

JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS177,179,UZS17#

 1
85214A - RUBBER, WIPER, RH
85214-22410

GS171,JKS175,JZS17#,UZS17#

 1
85214-22410

GS171,JKS175,JZS17#,UZS17#

 1
85214-30350

GS171,JZS17#,UZS17#

 1
85214B - RUBBER, WIPER, LH
85214-48020

JZS177,UZS17#

 1
85214-30370

JZS177,UZS17#

 1
85221B - ARM, FRONT WIPER, LH
85221-30470

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85221-30510

JZS177,UZS17#

 1
85221-30500

JZS177,UZS17#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85221-30460

JZS177,UZS17#

 1
85222A - BLADE, FR WIPER, LH
85222-30550

JZS177,UZS17#

 1
85222-48030

JZS177,UZS17#

 1
