JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JKS175,JZS171,175,177,179,UZS17#..SED

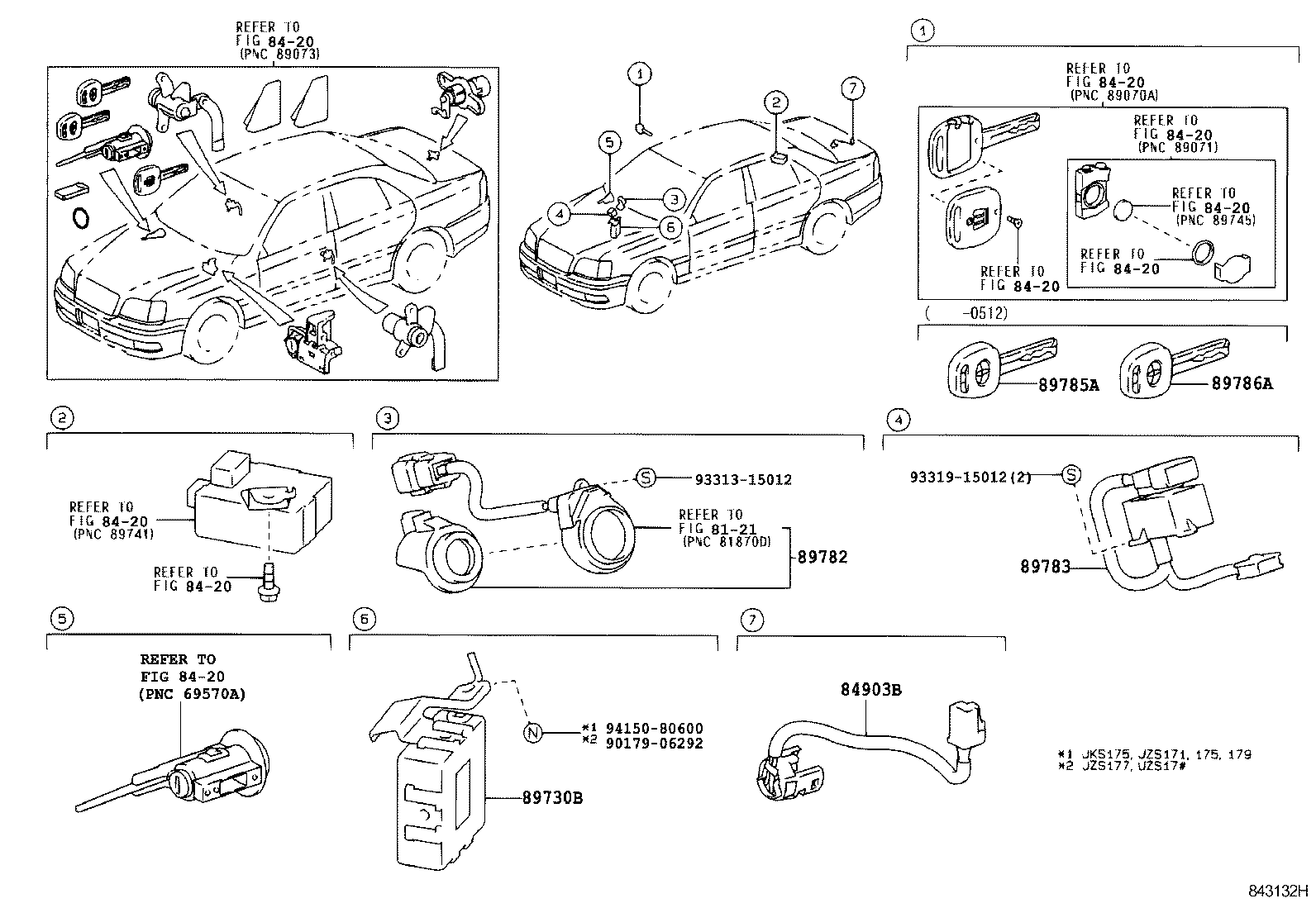

Click highlighted areas on diagram

diagram 8121 8420 8420 8420 8420 8420 8420 8420 8420 8420 84903B 89730B 89782 89783 89785A 89786A 9017906292 9331315012 9331915012 9415080600
Part # Description Qty Price
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-30080

JZS177,UZS17#

 1
89782 - COIL, TRANSPONDER KEY
89790-30010

JZS175,177,UZS17#

 1
89790-30010

JZS177,UZS17#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-30050

JZS177,UZS17#

 1
89783-30050

JZS175,177,UZS17#

 1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-50070

JZS175,177,UZS17#

有り(ｲﾓﾋﾞﾗｲｻﾞ)

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-50070

JZS175,177,UZS17#

有り(ｲﾓﾋﾞﾗｲｻﾞ)

 1
Common parts
90179-06292
93313-15012
93319-15012
94150-80600
Linked diagrams
8121
8420
