JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )

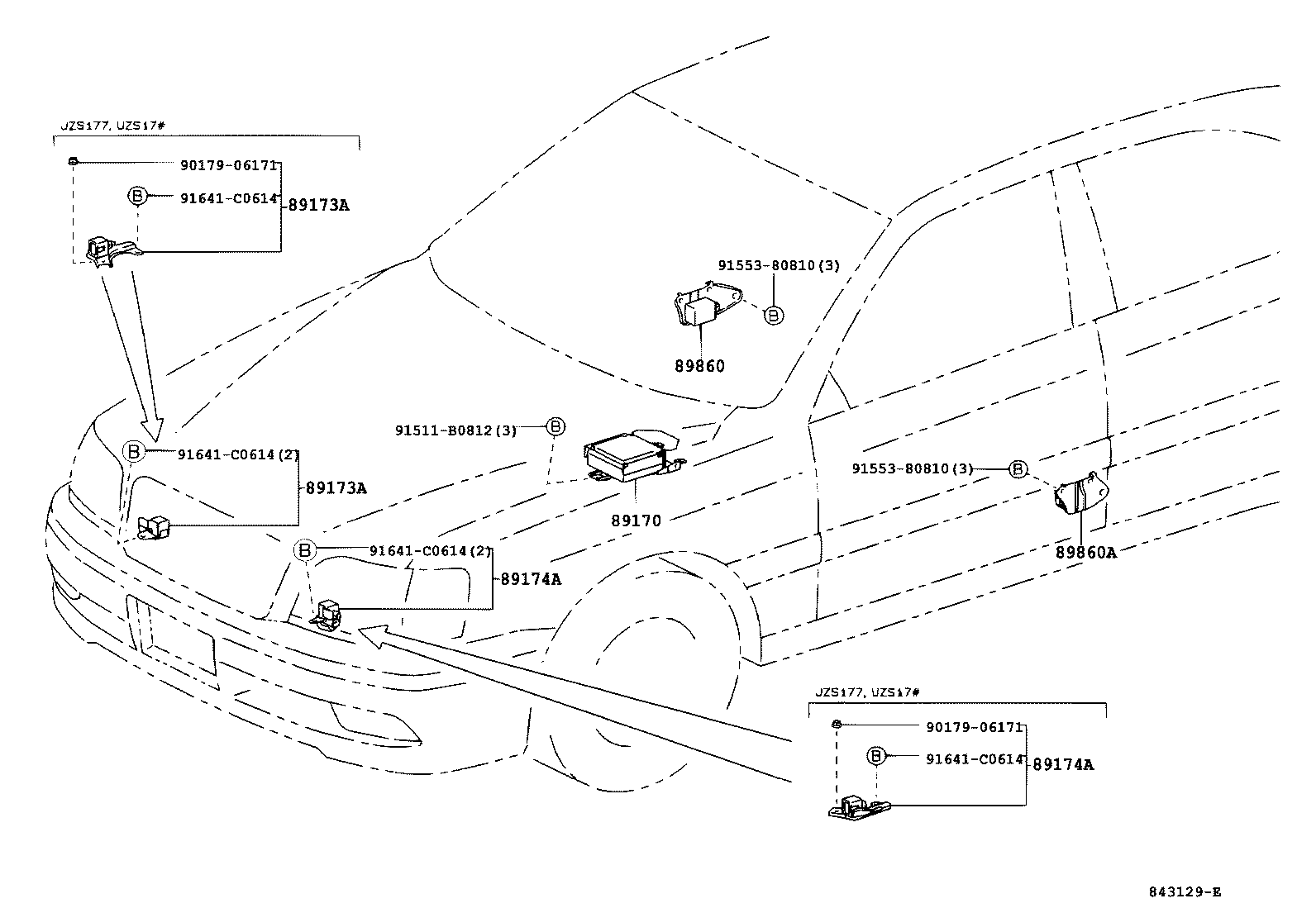

Click highlighted areas on diagram

diagram 89170 89173A 89173A 89174A 89174A 89860 89860A 9017906171 9017906171 91511B0812 9155380810 9155380810 91641C0614 91641C0614 91641C0614 91641C0614
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-30280

JZS177

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ)

 1
89170-30290

JZS177

 1
89170-30400

JZS177

 1
89170-30390

JZS177,UZS17#

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｻｲﾄﾞ)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39265

JZS177,UZS17#

 1
89173-39265

JZS177,UZS17#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39265

JZS177,UZS17#

 1
89173-39265

JZS177,UZS17#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-39135

JZS177,UZS17#

 1
89174-39135

JZS177,UZS17#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-39135

JZS177,UZS17#

 1
89174-39135

JZS177,UZS17#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-30060

JZS177,UZS17#

 1
89860-30110

JZS177,UZS17#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-30060

JZS177,UZS17#

 1
89830-30110

JZS177,UZS17#

 1
Common parts
90179-06171
91511-B0812
91553-80810
91641-C0614
