Toyota Crown/crown majesta JZS177 WIRELESS DOOR LOCK

JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 2JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

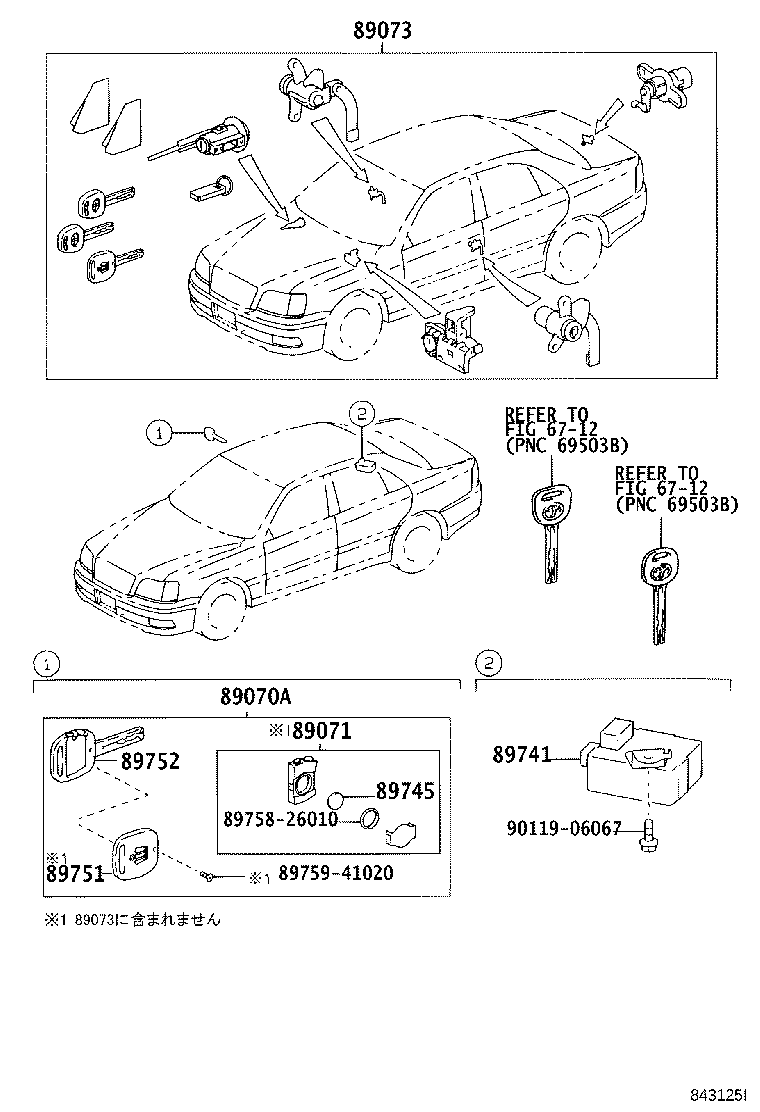

Click highlighted areas on diagram

ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-30180	JZS175,177,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	09/1999 - 08/2001	1
89070-30180	JKS175,JZS171,175,177,179,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-30010	JZS175,177,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	09/1999 - 08/2001	1
89071-30010	JKS175,JZS171,175,177,179,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-3A180	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A)	02/2002 - 07/2002	1
89073-30260	JZS177,UZS17#	09/1999 - 08/2001	1
69005-3A130	JZS177,UZS17# ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89741 - RECEIVER, DOOR CONTROL
89741-30260	JZS177,UZS17#	08/2001 - 06/2004	1
89741-30260	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
89745 - BATTERY, TRANSMITTER
89745-26010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
89745-26010	JZS177,UZS17#	08/2001 - 06/2004	1
89751 - COVER, TRANSMITTER HOUSING
89751-30010	GS171,JKS175,JZS173,177,179,UZS17#	09/1999 - 06/2007	1
89752 - CASE, TRANSMITTER HOUSING
89752-51010	GS171,JKS175,JZS17#,UZS17#..SED ﾏｽﾀｰｷｰ	09/1999 - 06/2004	1
Common parts
89758-26010
89759-41020
90119-06067
Linked diagrams
6712

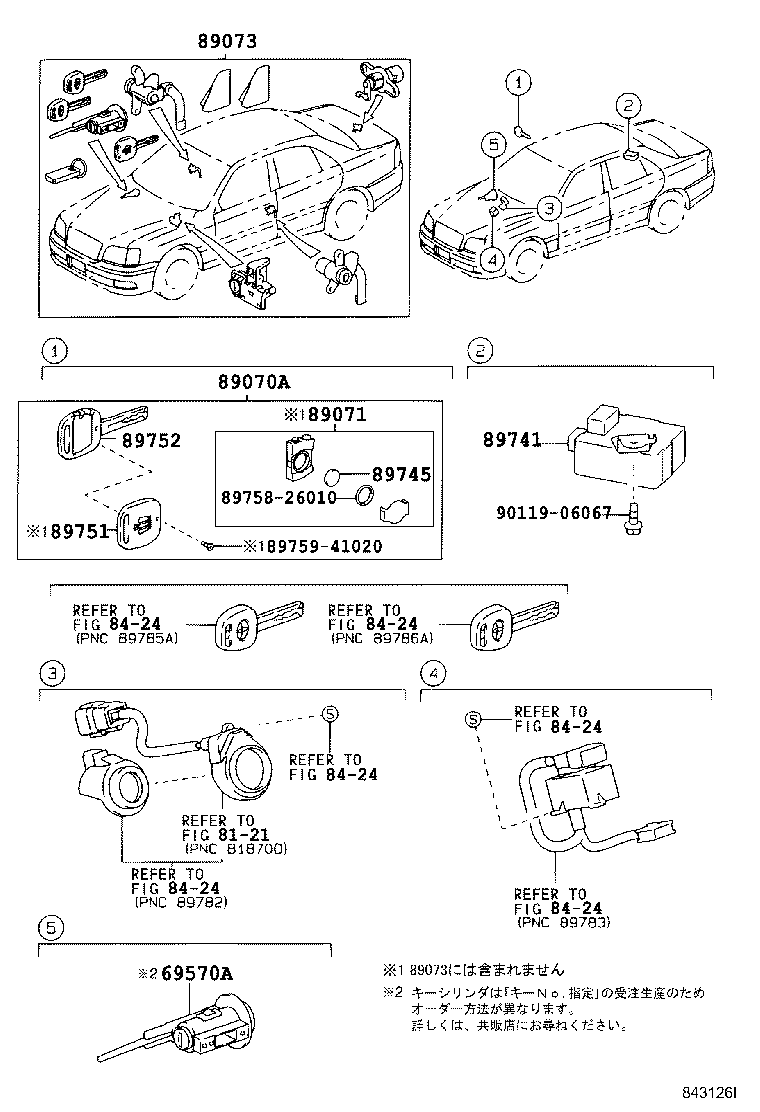

Click highlighted areas on diagram

ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
69570A - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-30210	JZS177,UZS17#	08/2001 - 06/2004	1
69570-30210	JZS175,177,UZS17#	09/1999 - 08/2001	1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-30180	JZS175,177,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	09/1999 - 08/2001	1
89070-30180	JKS175,JZS171,175,177,179,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-30010	JZS175,177,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	09/1999 - 08/2001	1
89071-30010	JKS175,JZS171,175,177,179,UZS17#..SED ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-3A180	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A)	02/2002 - 07/2002	1
89073-30260	JZS177,UZS17#	09/1999 - 08/2001	1
69005-3A130	JZS177,UZS17# ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	08/2001 - 06/2004	1
89741 - RECEIVER, DOOR CONTROL
89741-30260	JZS177,UZS17#	08/2001 - 06/2004	1
89741-30260	GS171,JZS17#,UZS17#..SED	09/1999 - 08/2001	1
89745 - BATTERY, TRANSMITTER
89745-26010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
89745-26010	JZS177,UZS17#	08/2001 - 06/2004	1
89751 - COVER, TRANSMITTER HOUSING
89751-30010	GS171,JKS175,JZS173,177,179,UZS17#	09/1999 - 06/2007	1
89752 - CASE, TRANSMITTER HOUSING
89752-51010	GS171,JKS175,JZS17#,UZS17#..SED ﾏｽﾀｰｷｰ	09/1999 - 06/2004	1
Common parts
89758-26010
89759-41020
90119-06067
Linked diagrams
8121
8424
