JZS177-CEAZH (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 2JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

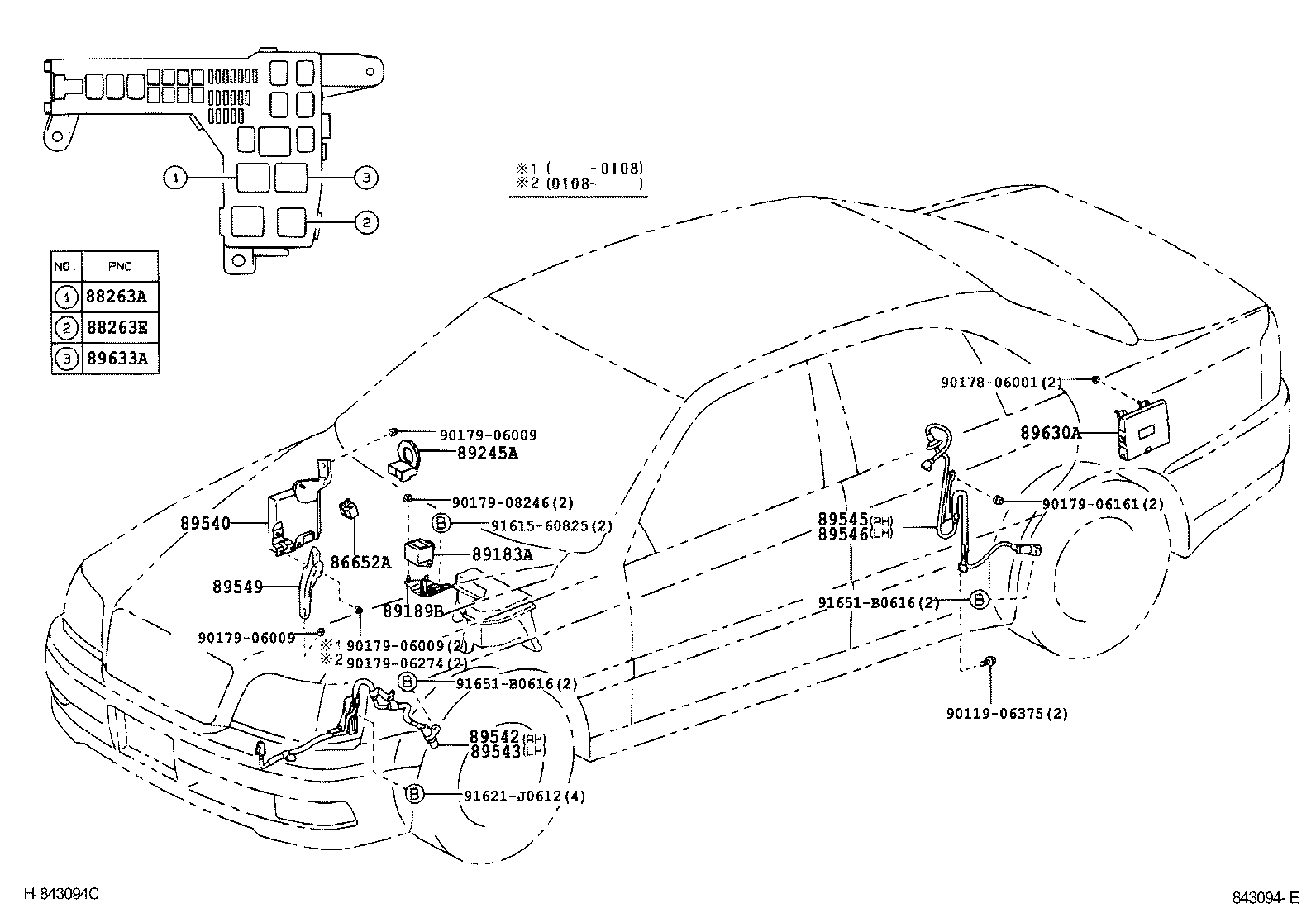

Click highlighted areas on diagram

diagram 86652A 88263A 88263E 89183A 89189B 89245A 89540 89542 89543 89545 89546 89549 89630A 89633A 9011906375 9017806001 9017906009 9017906009 9017906009 9017906161 9017906274 9017908246 9161560825 91621J0612 91651B0616 91651B0616
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-51010

JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG

 1
86652-51010

JZS177,UZS17#

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZS177,UZS17#

 1
88263-24020

JZS177,UZS17#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

GS171,JZS17#,UZS17#

 1
88263-24030

GS171,JKS175,JZS17#,UZS17#

 1
89183A - SENSOR, YAWRATE
89183-30060

JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG

 1
89183-30060

JZS177,UZS17#

 1
89189B - BRACKET, YAWRATE SENSOR
89189-30050

JZS177,UZS17#

 1
89189-30050

JZS177,UZS17#

 1
89245A - SENSOR, STEERING
89245-30040

JZS175,177,UZS17#..A,C,ROYG

 1
89245-30040

JZS177,UZS17#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-30481

JZS177,UZS175

 1
89540-30480

JZS177,UZS175

 1
89540-30550

JZS177,UZS175

 1
89542 - SENSOR, SPEED, FRONT RH
89542-30160

JZS177,UZS171,175

 1
89542-30160

JZS177,UZS171,175

 1
89543 - SENSOR, SPEED, FRONT LH
89543-30160

JZS177,UZS171,175

 1
89543-30160

JZS177,UZS171,175

 1
89545 - SENSOR, SPEED, REAR RH
89545-30010

JZS177,UZS173,175

 1
89545-30010

JZS177,UZS173,175

 1
89546 - SENSOR, SPEED, REAR LH
89546-30010

JZS177,UZS173,175

 1
89546-30010

JZS177,UZS173,175

 1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-30070

JZS177,UZS17#

 1
89549-30071

JZS177,UZS17#

 1
89549-30071

JZS177,UZS17#

 1
89633A - RELAY, TRACTION CONTROL OR VSC
89633-24010

JZS177,UZS17#

 1
89633-24010

JZS177,UZS17#

 1
Common parts
90119-06375
90178-06001
90179-06009
90179-06161
90179-06274
90179-08246
91615-60825
91621-J0612
91651-B0616
